Quick Details
-
Brand Name:
-
YTL
-
Model Number:
-
D114011
-
Accuracy Class:
-
1.0, 1.0
-
Output Voltage:
-
230V
-
Operating Temperature:
-
-20~55℃
-
Dimensions:
-
141.6*49*87mm
-
Working Current:
-
5(80)A
-
Working Voltage:
-
230/240V
-
Connection Mode:
-
Direct
-
Impuse Constant:
-
10000imp/kWh
-
Executive Standard:
-
IEC62052-11,IEC62053-21
-
Smart Energy Meter:
-
Smart Energy Meter
-
Communication:
-
RS485
-
Communication protocol:
-
IEC62056-21
-
Warranty:
-
18 Months
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
80
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YTL
-
Model Number:
-
D114011
-
Accuracy Class:
-
1.0, 1.0
-
Output Voltage:
-
230V
-
Operating Temperature:
-
-20~55℃
-
Dimensions:
-
141.6*49*87mm
-
Working Current:
-
5(80)A
-
Working Voltage:
-
230/240V
-
Connection Mode:
-
Direct
-
Impuse Constant:
-
10000imp/kWh
-
Executive Standard:
-
IEC62052-11,IEC62053-21
-
Smart Energy Meter:
-
Smart Energy Meter
-
Communication:
-
RS485
-
Communication protocol:
-
IEC62056-21
-
Warranty:
-
18 Months

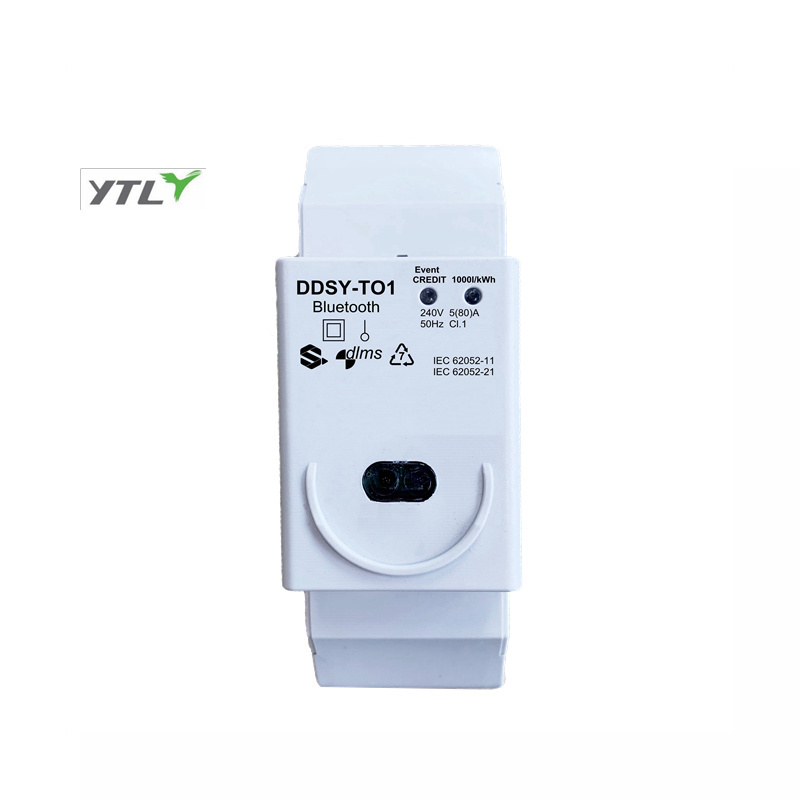

It's a single phase two wire din rail prepaid meter with G3 PLC communication with relay inside,it can be used with keypad IHD (option).
Features
*
With with G3 PLC communication
* Maximum current isup to 80A.
* with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to turn it off. Also you could configure to enable or disable this buzzer function by IR communication.
* Support load ground connection, switch detection, influence of external magnetic field, abnormal voltage record.
* Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
* Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.
* Degree of Protection: IP51 (indoor meter).
* The IHD is with AC and back light. .
* Maximum current isup to 80A.
* with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to turn it off. Also you could configure to enable or disable this buzzer function by IR communication.
* Support load ground connection, switch detection, influence of external magnetic field, abnormal voltage record.
* Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
* Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.
* Degree of Protection: IP51 (indoor meter).
* The IHD is with AC and back light. .
* Anti-tamper when Neutral missing: when Neutral missing, the meter still can work（battery support）
|
Voltage
|
230/240V
|
|
|
Current
|
5(80) A
|
|
|
Accuracy class
|
1
|
|
|
Standard
|
IEC62052-11, IEC62053-21, IEC62055-41
|
|
|
Frequency
|
50Hz
|
|
|
Impulse constant
|
1000imp/kWh
|
|
|
Display
|
Without LCD
|
|
|
Power consumption
|
<10VA/2W
|
|
|
Starting current
|
0.004Ib
|
|
|
Temperature range
|
-20～70℃
|
|
|
Flashing red
|
Impulse indication, width=80ms±20ms
|
|
|
Average humidity value of year
|
75%
|
|
|
Maximal value
|
95%
|
|
|
LED description
|
|
|
|
A
|
low credit
|
|
|
B
|
impulse
|
|
|
Material
|
|
|
|
Cover
|
PBT+15%GF
|
|
|
Base
|
PBT+15%GF
|
|
|
Terminal cover
|
PBT+15%GF
|
|
|
Hook
|
ABS
|
|
Functions
|
Tampering Protection Function
|
|
bypass power detection, record events and LED alarm.
|
|
open terminal cover detection, LED alarm and record the event.
|
|
record external magnetic field event.
|
|
record over voltage and low voltage event.
|
|
self-diagnostic: EEPROM check, battery alarm.
|
|
Display details
|
|
Total active energy power, voltage effective value, current effective value, average active energy on second, current date,
current time. |
|
Communication
|
|
With G3 PLC communication
|
|
Events details
|
|
Over voltage, low voltage, bypass, current reverse, power off, open terminal cover.
|
|
Measurement
|
|
Single phase active energy measurement, keep records of power, average active energy on second, voltage effective value, current effective value, demand.
|
