Quick Details
-
Material:
-
Carton Box
-
Weight:
-
5kg
-
Size:
-
120*20*20cm
-
Weight (KG):
-
5 kg
-
Product name:
-

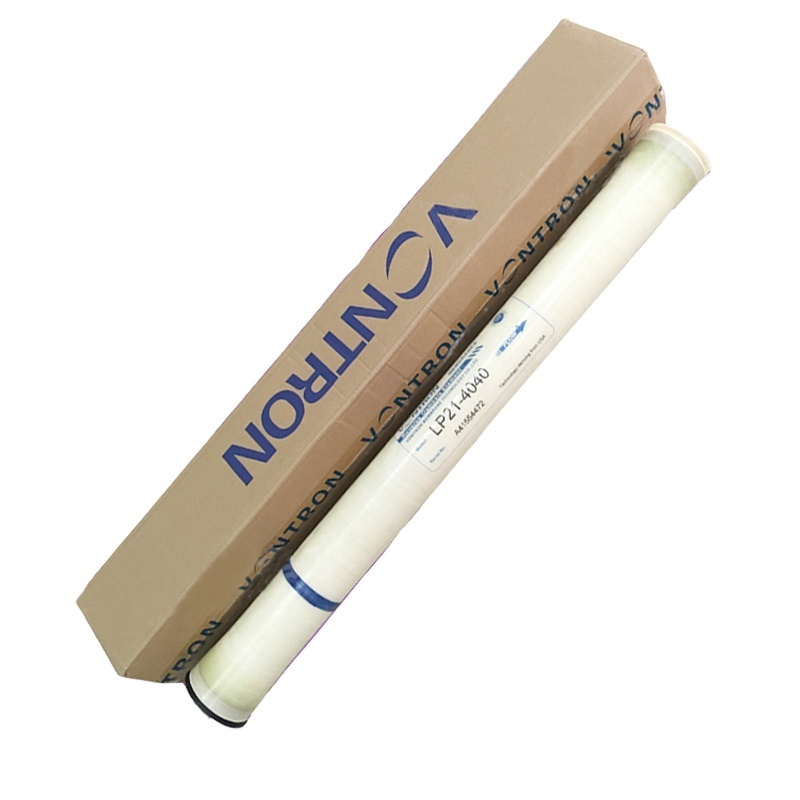

Vontron Reverse Osmosis Membrane
-
Application:
-
purifier water
-
Certification:
-
CE,NFS
-
Color:
-
blue, white
-
stable rejection:
-
97-99.5%
-
Capacity:
-
250L
-
working pressure:
-
225PSI-600PSI
-
Other name:
-
Vontron Membrane
-
After Warranty Service:
-
Video technical support
Quick Details
-
Core Components:
-
RO Membrane
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vontron
-
Material:
-
Carton Box
-
Weight:
-
5kg
-
Size:
-
120*20*20cm
-
Weight (KG):
-
5 kg
-
Product name:
-
Vontron Reverse Osmosis Membrane
-
Application:
-
purifier water
-
Certification:
-
CE,NFS
-
Color:
-
blue, white
-
stable rejection:
-
97-99.5%
-
Capacity:
-
250L
-
working pressure:
-
225PSI-600PSI
-
Other name:
-
Vontron Membrane
-
After Warranty Service:
-
Video technical support
Products Description
RO Membrane
Reverse Osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions, molecules, and larger particles from drinking water.Using RO membrane to desalt has higher efficiency and better economic than general ion exchange method and distillation method.
Perfect option for house-hold RO units with feed water lower than 2000ppm, like tap water, municiple water, underground water.
Advantages:
1. Competitive pricing
2. NSF-certified quality
3. Excellent outlook and great performance
4. Dry membrane
5. 100% tested
Specification
|
Type
|
Model
|
Reject
(%)
|
Average
Permeate
GPD
(m*/d)
|
Working Pressure & Application Fields
|
Testing Conditions
|
|
|
||
|
|
|
|
|
|
Pressure
psi(MPa)
|
Solution Concentration NaCl（ppm）
|
Recovery Rate(%)
|
||
|
|
|
|
|
|
|
|
|
||
|
Extra Low Pressure Element
|
XLP11-4040
|
98.0
|
2000
(7.6)
|
Working urxler extremely low pressure. Applicable to feedwater with low salinity that requires relatwdy low rejection rate.
|
100 (0.69)
|
500
|
15
|
||
|
|
XLP12-8040
|
98.0
|
9000
(34.0)
|
|
|
|
|
||
|
Ultra Low Pressure Element
|
ULP12-8040
|
98.0
|
13200 (49.9)
|
Working under ultra low pressure, applicable to feedwater with fairly low salinity.
|
|
1500
|
15
|
||
|
|
ULP21-8040
|
99.0
|
11000 (41.6)
|
|
|
|
|
||
|
|
ULP22-8040
|
99.0
|
12100 (45.7)
|
|
|
|
|
||
|
|
ULP32-8040
|
99.5
|
10500 (39.7)
|
|
|
|
|
||
|
|
ULP11-4040
|
98.0
|
2700
(10.2)
|
|
|
|
|
||
|
|
ULP21-4040
|
99.0
|
2400
(9.1)
|
|
|
|
|
||
|
|
ULP31-4040
|
99.4
|
1900
(7.2)
|
|
|
|
|
||
|
|
ULP11-4021
|
98.0
|
1000
(3.78)
|
Working under ultra low pressure. Applicable to commercial water purifiers, and water purifying devices for hospitals and
laboratories.
|
150 (1.03)
|
1500
|
8
|
||
|
|
ULP21-4021
|
99.0
|
950
(3.6)
|
|
|
|
|
||
|
|
ULP31-4021
|
99.4
|
850
(3.2)
|
|
|
|
|
||
|
|
ULP21-2521
|
99.0
|
300
(1.13)
|
|
|
|
|
||
|
|
ULP21-2540
|
99.0
|
750
(2.84)
|
|
|
|
15
|
||
|
Brackish Water Element
|
LP21-8040
|
99.5
|
9600
(36.3)
|
Working under low pressure. Applicable to regular or high-concentration brackish water.
|
225 (1.55)
|
2000
|
15
|
||
|
|
LP22-8040
|
99.5
|
10500 (39.7)
|
|
|
|
|
||
|
|
LP21-4040
|
99.5
|
2400
(9.1)
|
|
|
|
|
||
|
Fouling Resistant Element
|
FR11-8040
|
99.5
|
9600
(36.3)
|
Working under low pressure. Appiicabie to feedwater with small content of contaminants (organic substances, colloids)
|
225 (1.55)
|
2000
|
15
|
||
|
|
FR12-8040
|
99.5
|
10500 (39.7)
|
|
|
|
|
||
|
|
FR11-4040
|
99.5
|
2200
(8.3)
|
|
|
|
|
||
|
High Oxidation
Resistant Element
|
HOR21-8040
|
99.2
|
9000
(34.0)
|
Applicable to feedwater with oxidative substances or serious microbial contamination
|
225 (1.55)
|
2000
|
15
|
||
|
|
HOR21-4040
|
99.2
|
2200
(8.3)
|
|
|
|
|
||
|
Seawater Desali-nation Element
|
SW8040XHR-400
|
99.85
|
6000
(22.7)
|
Working under high pressure. Applicable to seawater or quasi seawater.
|
800 (5.5)
|
32800
|
8
|
||
|
|
SW8040HR-400
|
99.8
|
7500
(28.4 )
|
|
|
|
|
||
|
|
SW8040LE-400
|
99.8
|
9000
( 34.0)
|
|
|
|
|
||
|
|
SW8040XLE-400
|
99.7
|
11000 (41.6)
|
|
|
|
|
||
|
|
SW4040HR
|
99.8
|
1600
( 6.1 )
|
|
|
|
|
||
|
|
SW4040LE
|
99.7
|
1900
(7.2)
|
|
|
|
|
||
|
|
SW4021
|
99.5
|
750
(2.8)
|
Working under high pressure Applicable to small-sized systems in military ships, marine ships, laboratorie,etc. for desalination
of seawater or high-concentratiion brackish water.
|
|
|
|
||
|
|
SW2521
|
99.5
|
270
( 1.0)
|
|
4
|
|
|
||
|
|
SW2540
|
99.5
|
600
(2.3)
|
|
|
|
|
||
