Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rongda
-
Voltage:
-
380V 3phase 50Hz
-
Dimension(L*W*H):
-
L3600*W2200*H1600mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-

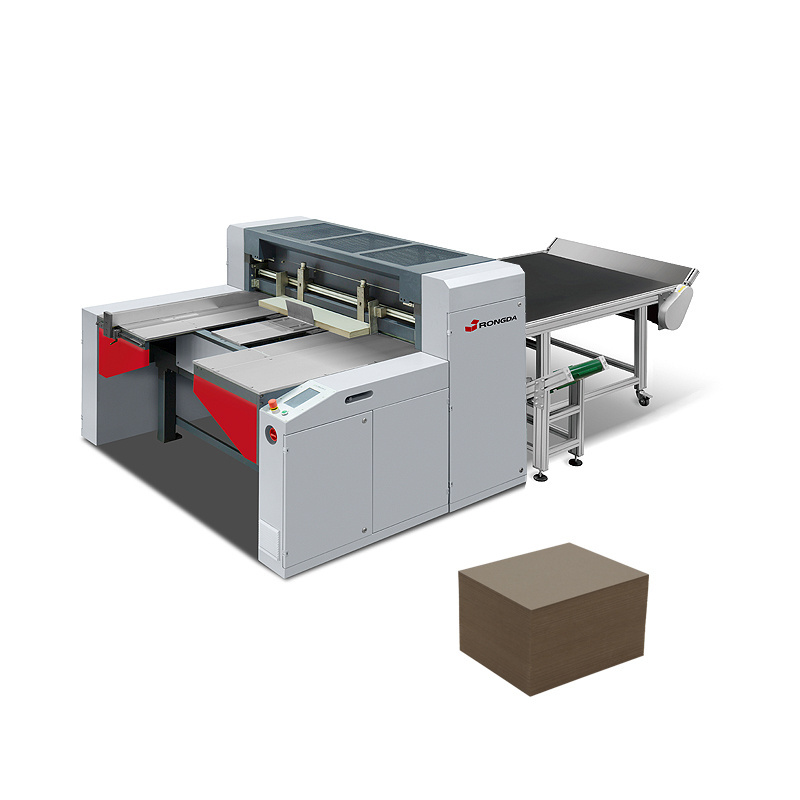

Cardboard cutting machine
-
Model:
-
KL1300B
-
Cardboard width:
-
600≤W≤1400mm, L≤1400mm W1=150-1380mm, W2≥85mm
-
Cutting size Max.:
-
480x1380mm
-
Cutting size Min.:
-
150x85mm
-
Cardboard thickness:
-
1-4mm
-
Mechanical speed:
-
30-120m/min
-
Motor power:
-
4kw/380V 3phase 50Hz
-
Machine weight:
-
2000kg
-
Machine dimension:
-
L3600*W2200*H1600mm
Quick Details
-
Type:
-
Cardboard cutting machine
-
Production Capacity:
-
30-120m/min
-
Max. workable width:
-
1400mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rongda
-
Voltage:
-
380V 3phase 50Hz
-
Dimension(L*W*H):
-
L3600*W2200*H1600mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Cardboard cutting machine
-
Model:
-
KL1300B
-
Cardboard width:
-
600≤W≤1400mm, L≤1400mm W1=150-1380mm, W2≥85mm
-
Cutting size Max.:
-
480x1380mm
-
Cutting size Min.:
-
150x85mm
-
Cardboard thickness:
-
1-4mm
-
Mechanical speed:
-
30-120m/min
-
Motor power:
-
4kw/380V 3phase 50Hz
-
Machine weight:
-
2000kg
-
Machine dimension:
-
L3600*W2200*H1600mm
Product Description
|
Name
|
Cardboard Cutter Machine
|
|
Model
|
KL1300B
|
|
Cardboard Width
|
600≤W≤1400mm, L≤1400mm
W1=150-1380mm, W2≥85mm |
|
Cardboard Thickness
|
1-4mm
|
|
Mechanical Speed
|
30-120m/min
|
|
Motor Power
|
4kw/380v 3phase
|
|
Machine Weight
|
2000kg
|
|
Machine Dimension
|
3600*2200*1600mm
|
Features:
1. Large sheet is feed by hand; Narrow sheet is fed by Mechanical feeder.
2. Durable Alloy knives, 7 sets, available for various size boards.
3. The crusher could smash the waste into small size and convey them out of the machine by belt.
4. With a 2-meter conveyor belt for collecting.
5. The safety cover is designed according to European CE standard.
6. Automatic distance guide(optional)
2. Durable Alloy knives, 7 sets, available for various size boards.
3. The crusher could smash the waste into small size and convey them out of the machine by belt.
4. With a 2-meter conveyor belt for collecting.
5. The safety cover is designed according to European CE standard.
6. Automatic distance guide(optional)
