Quick Details
-
Inputs signal:
-
DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or IPTV resources
-
Output:
-
DVB-C (ETSI EN 300 429/ITU-T J.83A/C) in 4 frequencies
-
Output Audio codecs:
-
AAC, MP3
-
Frequency range:
-
100 ~ 1000 MHz
-
Symbol rate:
-
2000 ~ 7200kbps
-
FEC:
-
16QAM,32QAM,64QAM,128QAM,256QAM
-
Max bit rate:
-
53Mbps/per channel
-
Software:
-
Free generating software
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TBS
-
Model Number:
-
TBS6004
-
Inputs signal:
-
DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or IPTV resources
-
Output:
-
DVB-C (ETSI EN 300 429/ITU-T J.83A/C) in 4 frequencies
-
Output Audio codecs:
-
AAC, MP3
-
Frequency range:
-
100 ~ 1000 MHz
-
Symbol rate:
-
2000 ~ 7200kbps
-
FEC:
-
16QAM,32QAM,64QAM,128QAM,256QAM
-
Max bit rate:
-
53Mbps/per channel
-
Software:
-
Free generating software
Product Description

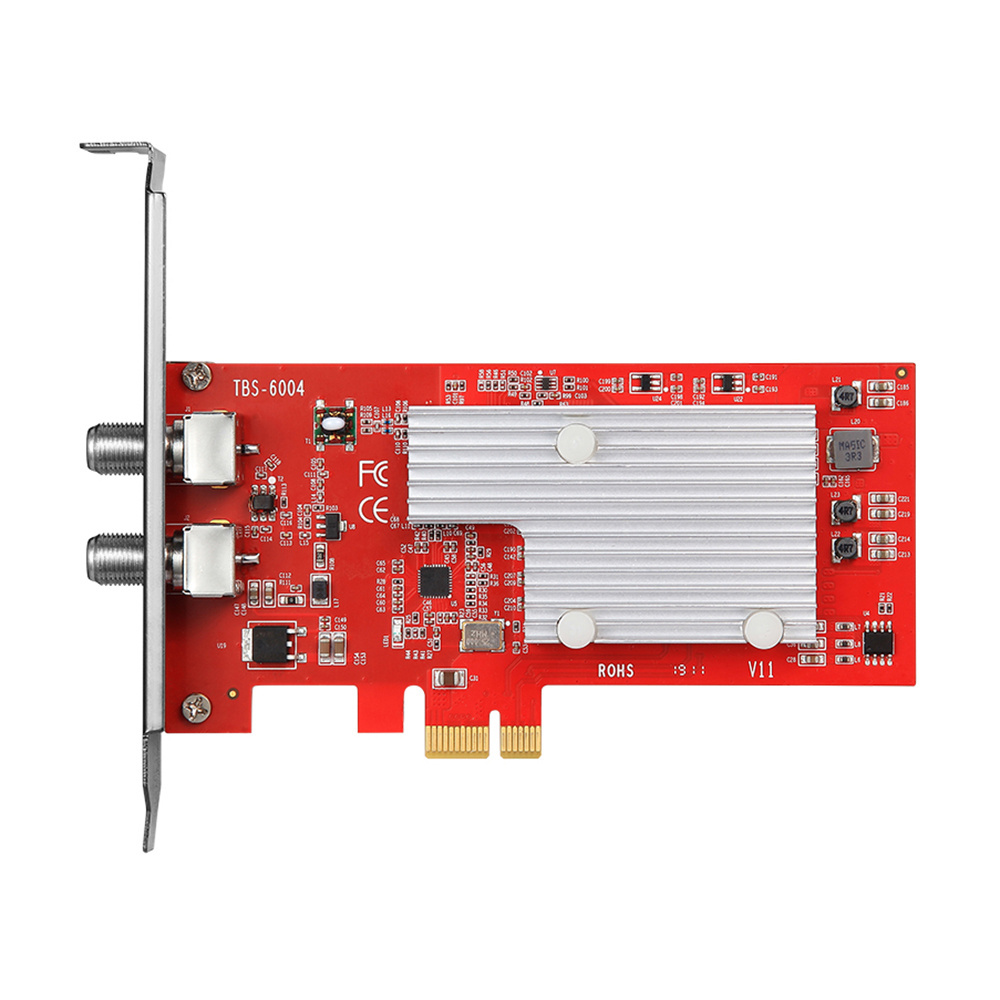

TBS6004 4 QAM DVB-C modulator PCIe card with free generating software (ETSI EN 300 429/ITU-T J.83A/C)
Overview:
TBS6004 is a DVB-C 4 QAM modulator PCIe card, working as a DVB-C signal generator. It supports to be fed with any DVB resource or other digital resources, and then output DVB-C channels in 4 Frequencies. For example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and then use TBS6004 modulator card converting these channels into DVB-C coaxial system. TBS6004 is equipped with a Loop-in interface, which allows to receive DVB-C resources from other devices, and then remix all the different resources into a new DVB-C coaxial system.
TBS6004 provides a very cost-effective solution to transfer other digital resources, like DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or even IPTV resources into an existing DVB-C Coaxial system in hotels, hospitals, or dormitories.
|
Specifications:
|
|
|
|
Available Inputs
|
DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or IPTV resources
|
|
|
Outputs
|
DVB-C (ETSI EN 300 429/ITU-T J.83A/C) in 4 frequencies
|
|
|
Frequency range
|
100 ~ 1000 MHz
|
|
|
Symbol rate
|
2000 ~ 7200kbps
|
|
|
Channel bandwidth
|
8 MHz
|
|
|
Level
|
5-120
|
|
|
FEC
|
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
|
|
|
Max bit rate
|
53Mbps/per channel
|
|
|
Working Temperature
|
-40°~85°
|
|
|
Power
|
12V/9W
|
|
|
System Requirements
|
Windows XP / Vista/ 7/8/10, Linux
|
|
|
|
Available PCI Express x1, x4, x8 or x16 slot
|
|
|
Package Contents
|
1 * TBS6004
|
|
|
|
1 * low profile bracket
|
|
|
|
F-IEC connector
|
|
|
Packing:
|
|
|
|
Dimensions/Weight:
|
130mm * 68.7mm, 0.5KG/unit
|
|
How does TBS6004 work?
TBS6004 DVB-C modulator is designed to convert MPEGT which generated from TBS DVB-S/S2 card, DVB-T/T card, network IP, or local SPTS file to DVB-C signal. Then you can use DVB-C STB to receive and play the channels directly.
1.Configure input source:
TBS Adapters --- Only DVB-S2/S Card supported currently.
Network TS --- HTTP, UDP, RTP supported
Local Files (SPTS) --- Video format: MPEG-1 MPEG-2 MPEG-4 H264 H.265
Audio format: MPEG-1 MPEG-2 AAC_ADTS AAC_LATM A52 (aka AC3)
2. Remux and generate the channels into DVB-C streams
A TBS6004 has 4 modulators. As long as the first mod is set with frequency, the other mod will be set automatically by adding 8M one by one.
