Quick Details
-
Model Number:
-
ET3801
-
Product name:
-
Temperature Dry Calibration Furnace
-
Application:
-
temperation calibration
-
Display:
-
LCD
-
Resolution:
-
0.01℃
-
Temp. Range:
-
20~1000℃
-
Accuracy:
-
0.2℃
-
MOQ:
-
1
-
Quality:
-
High quality
-
Color:
-
Black
Quick Details
-
Warranty:
-
2 Years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
XINYI
-
Model Number:
-
ET3801
-
Product name:
-
Temperature Dry Calibration Furnace
-
Application:
-
temperation calibration
-
Display:
-
LCD
-
Resolution:
-
0.01℃
-
Temp. Range:
-
20~1000℃
-
Accuracy:
-
0.2℃
-
MOQ:
-
1
-
Quality:
-
High quality
-
Color:
-
Black

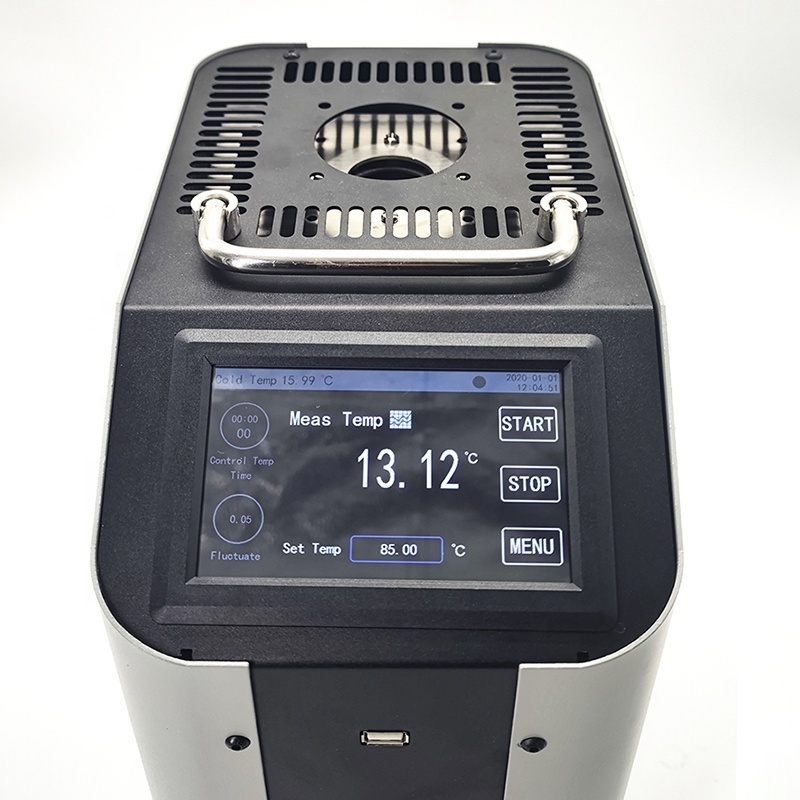

Portable Dry Block Temperature Calibrator
Small size, light weight, easy to carry;
Various types of insertion tubes can meet the testing and calibration of sensors of different sizes and quantities. And can be customized according to the special needs of users;
Good horizontal and vertical temperature fields;
The insertion depth of the inspected leads the industry;
5-inch TFT color LCD screen with a resolution of 800 × 480, full touch operation, intuitive and eye-catching;
Chinese and English interface;
With the upper management software, it is easy to read the verification data;
Rapid cooling, easy setting, good temperature control stability;
The soaking block can be replaced;
With load short circuit, load open circuit, sensor protection and other protection functions.
①Other temperature ranges should be specified when ordering
②-20℃~150℃ negative temperature type is equipped with 4 holes as standard, they are ∮6, ∮8, ∮10mm, ∮12mm
-30℃~150℃ and -40℃~150℃ low temperature type are equipped with 4 holes as standard, they are ∮6, ∮8, ∮8mm, ∮10mm
50℃-650℃ medium temperature type comes standard with two types (choose 1 from 2 when ordering), one with 3 holes respectively ∮8,
∮10, ∮12mm, and the other with 4 holes respectively with 2 holes 6∮, 2 holes ∮ 8
300℃~1200℃ high temperature type is equipped with 4 holes as standard, they are ∮6, ∮8, ∮10, ∮12mm
Special specifications aperture can be customized, need to be specified when ordering
Various types of insertion tubes can meet the testing and calibration of sensors of different sizes and quantities. And can be customized according to the special needs of users;
Good horizontal and vertical temperature fields;
The insertion depth of the inspected leads the industry;
5-inch TFT color LCD screen with a resolution of 800 × 480, full touch operation, intuitive and eye-catching;
Chinese and English interface;
With the upper management software, it is easy to read the verification data;
Rapid cooling, easy setting, good temperature control stability;
The soaking block can be replaced;
With load short circuit, load open circuit, sensor protection and other protection functions.
①Other temperature ranges should be specified when ordering
②-20℃~150℃ negative temperature type is equipped with 4 holes as standard, they are ∮6, ∮8, ∮10mm, ∮12mm
-30℃~150℃ and -40℃~150℃ low temperature type are equipped with 4 holes as standard, they are ∮6, ∮8, ∮8mm, ∮10mm
50℃-650℃ medium temperature type comes standard with two types (choose 1 from 2 when ordering), one with 3 holes respectively ∮8,
∮10, ∮12mm, and the other with 4 holes respectively with 2 holes 6∮, 2 holes ∮ 8
300℃~1200℃ high temperature type is equipped with 4 holes as standard, they are ∮6, ∮8, ∮10, ∮12mm
Special specifications aperture can be customized, need to be specified when ordering
Product Description
Specification
|
|
Low Temperature
|
|
|
Mesophilic
|
High Temperature
|
||||
|
|
XY3801-150A
|
XY3801-150B
|
XY3801-150C
|
XY3801-650
|
XY3801-1200
|
||||
|
Temperature range①
|
-20℃~150℃
|
-30℃~150℃
|
-45℃~150℃
|
50℃~650℃
|
300℃~1200℃
|
||||
|
Heating rate
|
30~100: 20min
30~150: 40min |
|
|
30~300: 7min
30~400: 12min 30~650: 25min |
30~1200:75min
|
||||
|
Display accuracy
|
≤±0.1℃
|
|
|
Below 400℃: ≤±0.35℃
400-650℃: ≤±0.5℃ |
≤±1.2℃
|
||||
|
Insertion depth
|
160mm
|
|
|
150mm
|
135mm
|
||||
|
Diameter of soaking block②
|
A type 36mm, B, C type 32mm
|
|
|
32mm
|
39mm
|
||||
|
Temperature Field Stability
|
≤±0.02℃
|
|
|
≤±0.05℃
|
≤±0.2℃
|
||||
|
Horizontal temperature field
|
≤±0.05℃
|
|
|
≤±0.05℃
|
≤±0.25℃
|
||||
|
vertical temperature field
|
The deviation within 30mm from the bottom of the soaking block hole is not more than 1℃
|
|
|
|
The deviation within 10mm from the bottom of the soaking block hole is not more than 1℃
|
||||
|
temperature unit
|
°C or °F
|
|
|
|
|
||||
|
Temperature control accuracy
|
0.1%
|
|
|
|
|
||||
|
display resolution
|
0.1℃ or 0.01℃
|
|
|
|
|
||||
|
Maximum power
|
Low temperature type: 300W, medium temperature type: 1200W, high temperature type: 3000W
|
|
|
|
|
||||
|
Weight (net weight)
|
Low temperature type: 13kg, medium temperature type: 11kg, high temperature type: 11kg
|
|
|
|
|
||||
|
Weight (including packaging)
|
Low temperature type: 23kg, medium temperature type: 18kg, high temperature type: 18kg, the packaging includes aluminum box and
transportation wooden box |
|
|
|
|
||||
|
Dimensions
|
Low temperature type: 310*190*340mm, medium temperature type, high temperature type: 250*150*310mm
|
|
|
|
|
||||
|
Use environment
|
Ambient temperature 0~50℃, relative humidity ≤95% (non-condensing)
|
|
|
|
|
||||
|
Power supply
|
220VAC±10%, 45~60Hz, optional 110VAC±10%
|
|
|
|
|
||||
|
Optional function
|
Verification data recording and exporting (optional for ET3801 only), supports up to 250 sensors and 2500 records
USB Device communication interface |
|
|
|
|
||||
