Quick Details
-
Model Number:
-
C90T/FCP200
-
Place of Origin:
-
Henan, China
-
Power:
-
9600
-
Dimension(L*W*H):
-
1050*500*520 mm, 1050*500*520 mm
-
Weight:
-
90 kg, 90kg
-
Engine:
-
gasoline/diesel engine
-
Product name:
-
Vibrating Plate Compactors
-
Model:
-
C90T/FCP200
Quick Details
-
Marketing Type:
-
New Product 2024
-
Application:
-
Ground compaction, Ground compaction
-
Brand Name:
-
Tatooine
-
Model Number:
-
C90T/FCP200
-
Place of Origin:
-
Henan, China
-
Power:
-
9600
-
Dimension(L*W*H):
-
1050*500*520 mm, 1050*500*520 mm
-
Weight:
-
90 kg, 90kg
-
Engine:
-
gasoline/diesel engine
-
Product name:
-
Vibrating Plate Compactors
-
Model:
-
C90T/FCP200
Product Description

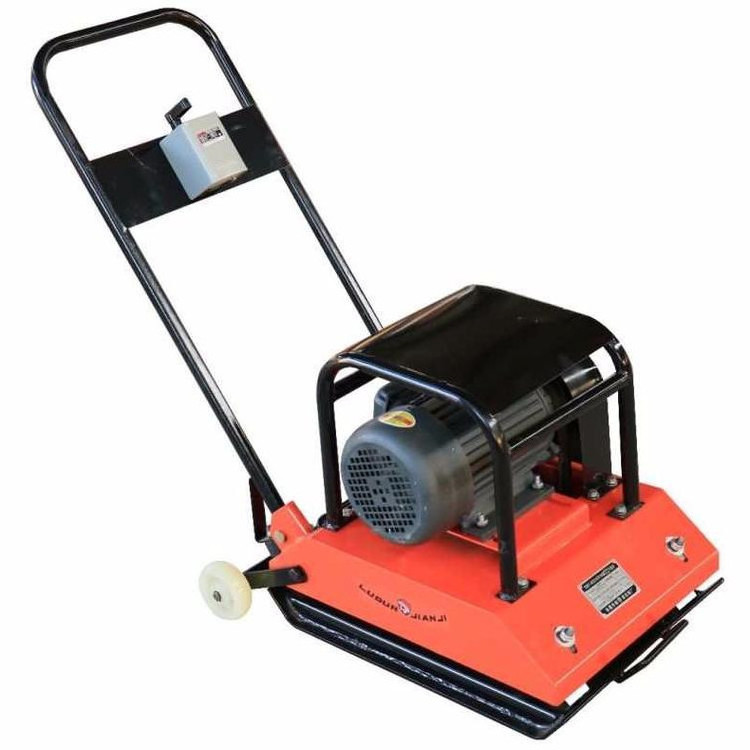

Plate compactor is suitable for tamping the engineering foundation, curb and asphalt pavement when building roads, streets, buildings, canals and bridges in highways, municipal administration, construction, water conservancy and other areas. In a narrow working environment, it is convenient to move, stable to operate, and does not leave dead ends in work.
Product Parameters
| Model | C90T | C90T |
| type | single-direction vibratory plates | single-direction vibratory plates |
| tamping depth |
30 cm |
11.8'' |
| power type |
gasoline/diesel |
gasoline/diesel |
| vibration intensity | 15kn | 1.5 t |
| vibration frequency | 2800-5500vpn | 2800-5500vpn |
| gradeability | <25° | <25° |
| walking speed | 15-30 m/min | |
| working area | 500*520 mm | |
| weight | 90 kg | 198 ib |
| size | 1050*500*520 mm | 41''*20''*21'' |
Product Advantage
Product advantage
1. Foldable handle design and walking wheel are convenient for transportation.
2. Wear-resistant bottom plate: prolong service life, open design reduces dirty buildings.
3. Heavy shock absorber reduces vibration of upper deck.
4. Excellent quality, low fuel consumption, simple operation and quick construction.
