Quick Details
-
Weight (KG):
-
49 KG
-
Power (kW):
-
0.75
-
Applicable Industries:
-
Woodworking Furniture Manufacture
-
Input voltage:
-
230V, 50Hz, AC
-
Motor power:
-
750W
-
Overall dimension:
-
840x635x475mm
-
Planing width:
-
154mm
-
Table length:
-
620mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHOOT
-
Machine Type:
-
Combine Woodworking Machine
-
Weight (KG):
-
49 KG
-
Power (kW):
-
0.75
-
Applicable Industries:
-
Woodworking Furniture Manufacture
-
Input voltage:
-
230V, 50Hz, AC
-
Motor power:
-
750W
-
Overall dimension:
-
840x635x475mm
-
Planing width:
-
154mm
-
Table length:
-
620mm
Product Description

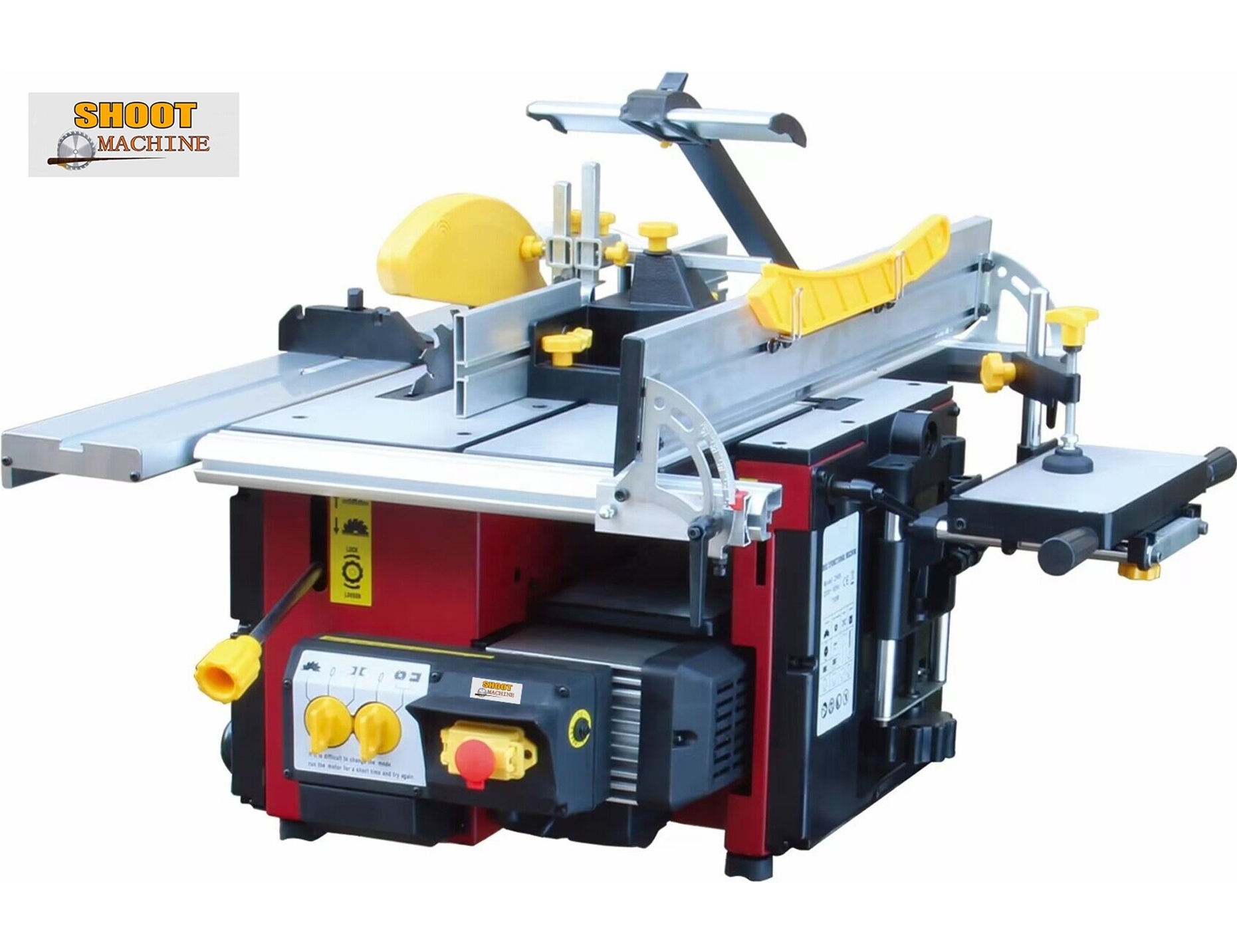

| 5 Functions Combine Woodworking Machine | |
| Model | SH160 |
| Input voltage | 230V, 50Hz, AC |
| Motor power | 750W |
| Overall dimension | 840x635x475mm |
| Machine N/G weight | 49/52kg |
| 20' /40' Container | 120/250PCS |
| HS Number | 8465100000 |
| Planer | |
| Planing width | 154mm |
| Table length | 620mm |
| Cutting depth | 1.5mm |
| Cutting knives | 2 pcs |
| Cutting speed | 6000rpm |
| Thicknesser | |
| Planing size | 154mm |
| Max cutting height | 92mm |
| Max cutting depth | 1.0mm |
| Feeding speed | 7m/min |
| Table Saw | |
| Blade dia. | 200mm |
| Blade cutting height | 42mm |
| Cutting speed | 4200rpm |
| Table size | 620x300mm |
| Milling | |
| Bit housing | 12mm |
| Adapter | 6/8mm |
| Vertical stroke | 42mm |
| Speed | 9000rpm |
| Square Carriage | |
| Maximum travel | 500mm |
| Carriage dimension | 120x740mm |
| Mortising Attachment | |
| Max drilling dia. | 13mm, LH |
| Adapter | 6/8/10mm |
| Max drilling depth | 45mm |
| Left/right travel | 95mm |
| Vertical travel | 60mm |
| Table size | 260x125mm |
Packaging & Shipping
Packing: by Plywood Case
Shipping: Qingdao Port
Deliver time: 30days after receive payment
