Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DaHua
-
Model Number:
-
IPC-PDW3849-A180-AS-PV
-
Resolution:
-
8MP 4K
-
Night vision:
-
IR Night Vision 60M
-
Lens:
-
2.7 mm-13.5 mm Vari-focal
-
Motion Detection:
-
Yes Smart Plus
-
MIC:
-
Built In
-
Power Supply:
-
DC 12V/ POE
-
Waterproof:
-
IP67
-
Vandal Proof:
-
IK10
-
Intelligent monitoring:
-
Intrusion,tripwire
-
Region of Interest (RoI):
-
Yes (4 areas)
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Motion Detection, Waterproof / Weatherproof, Face Recognition, One-way Audio, Low Power
-
Function:
-
Alarm I/O, RESET, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, One-way Audio, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DaHua
-
Model Number:
-
IPC-PDW3849-A180-AS-PV
-
Resolution:
-
8MP 4K
-
Night vision:
-
IR Night Vision 60M
-
Lens:
-
2.7 mm-13.5 mm Vari-focal
-
Motion Detection:
-
Yes Smart Plus
-
MIC:
-
Built In
-
Power Supply:
-
DC 12V/ POE
-
Waterproof:
-
IP67
-
Vandal Proof:
-
IK10
-
Intelligent monitoring:
-
Intrusion,tripwire
-
Region of Interest (RoI):
-
Yes (4 areas)
Product Description

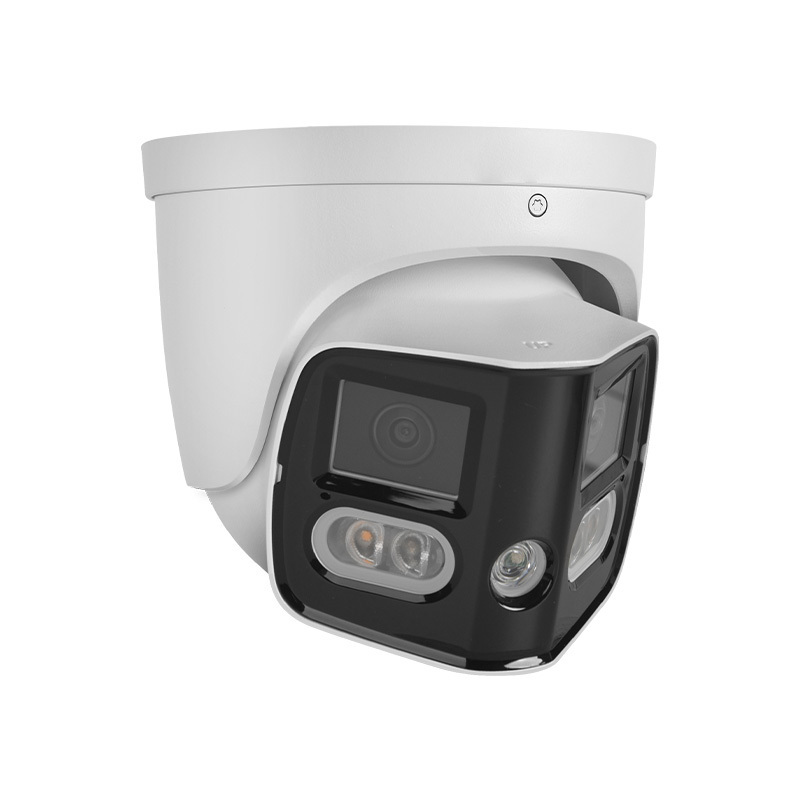

Dahua H.265 IP67 Ip Camera 2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera
IPC-PDW3849-A180-AS-PV
· Outputs 180° wide angle splicing image.
· Outputs max. 8 MP (4096 × 1860)@20 fps. · H.265 codec, high compression rate, ultra-low bit rate.
· Outputs max. 8 MP (4096 × 1860)@20 fps. · H.265 codec, high compression rate, ultra-low bit rate.
· Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
· ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. · WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SDcard; built in dual Mic; built in speaker, support two-way talk.
· 12 VDC/PoE power supply, easy for installation.
· IP67 protection.
· Sound and light alarm (redand blue lights)
· EPTZ: Enlarge and track the targets of intelligent alarms.
· SMD 4.0.
· One-tap arming/disarming through alarm input
|
Camera
|
|
|
Image Sensor
|
Dual 1/2.7" CMOS
|
|
Max. Resolution
|
4096 (H) × 1860 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
1 GB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
Up to 25 m (82.02 ft) (IR LED)
Up to 20 m (65.62 ft) (Warm light) |
|
Illuminator On/Off Control
|
Auto; Manual
|
|
Illuminator Number
|
2 (IR LED); 2 (Warm light)
|
|
Angle Adjustment
|
Pan: 0°–360°
Tilt: 0°–77° Rotation: 0°–360° |
|
Lens
|
|
|
Lens Type
|
Fixed-focal
|
|
Lens Mount
|
M12
|
|
Focal Length
|
2.8 mm
|
|
Field of View
|
Horizontal: 180°; Vertical: 86°
|
|
Max. Aperture
|
F1.4
|
|
Iris Control
|
Fixed
|
|
Close Focus Distance
|
0.8 m (2.62 ft)
|
|
DORI
Distance |
Detect
|
|
Intelligence
|
|
|
IVS (Perimeter Protection)
|
Intrusion, tripwire (the two functions support the
classification and accurate detection of vehicle and human) |
|
SMD
|
SMD 4.0
|
|
Quick Pick
|
With AI NVR, quickly pick up the human/vehicle targets
that users are interested in from SMD events. |
|
Smart Search
|
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event videos. |
|
EPTZ
|
Enlarge and track the targets of intelligent alarms
|
|
Video
|
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by the sub stream) |
|
Smart Codec
|
Smart H.265+;
Smart H.264+ |
|
AI Coding
|
AI H.265;
AI H.264 |
|
Browser
|
IE: IE 8 and later
Chrome Firefox |
|
Management Software
|
Smart PSS Lite; DSS; DMSS
|
|
Mobile Client
|
iOS; Android
|
|
Certification
|
|
|
Certifications
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|
Port
|
|
|
Audio Input
|
1 channel (RCA port)
|
|
Audio Output
|
1 channel (RCA port)
|
|
Alarm Input
|
1 channel in: wet contact, 5 mA 3 V–5 VDC
|
|
Alarm Output
|
1 channel out: wet contact, 300 mA 12 VDC
|
|
Power
|
|
|
Power Supply
|
12 VDC (±30%); PoE (802.3af)
|
|
Power Consumption
|
Basic: 3.95 W (12 VDC); 4.95 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE) |
|
Environment
|
|
|
Operating Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Operating Humidity
|
≤95%
|
|
Storage Temperature
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Protection
|
IP67
|
|
Structure
|
|
|
Casing
|
Metal
|
|
Product Dimensions
|
Φ122 mm × 135.2 mm (Φ4.80" × 5.32" )
|
|
Net Weight
|
990 g (2.18 lb)
|
|
Gross Weight
|
1150 g (2.54 lb)
|
|
Stream Capability
|
3 streams
|
|
Resolution
|
4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530;
1920 × 860; 960 × 432 |
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 6 kbps –16384 kbps
H.265: 6 kbps –16384 kbps |
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
Scene Self-adaptation
(SSA) |
Yes
|
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional
custom |
|
Gain Control
|
Auto
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Privacy Masking
|
4 areas
|
|
Defog
|
Yes
|
|
Audio
|
|
|
Built-in MIC
|
Yes, built-in dual Mic
|
|
Built-in speaker
|
Yes, built-in speaker
|
|
Audio Compression
|
G.711a; G.711Mu; PCM; G.726; G.723
|
|
Alarm
|
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception |
|
Network
|
|
|
Network Port
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Cyber Security
|
Video encryption; Firmware encryption; Configuration
encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
|
Network Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
|
Interoperability
|
ONVIF (ProfileS/Profile G/Profile T); CGI
|
|
User/Host
|
20 (Total bandwidth: 64 M)
|
|
Storage
|
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
|
