Quick Details
-
Model Number:
-
WY35-5S
-
Frequency:
-
50/60Hz
-
Name:
-

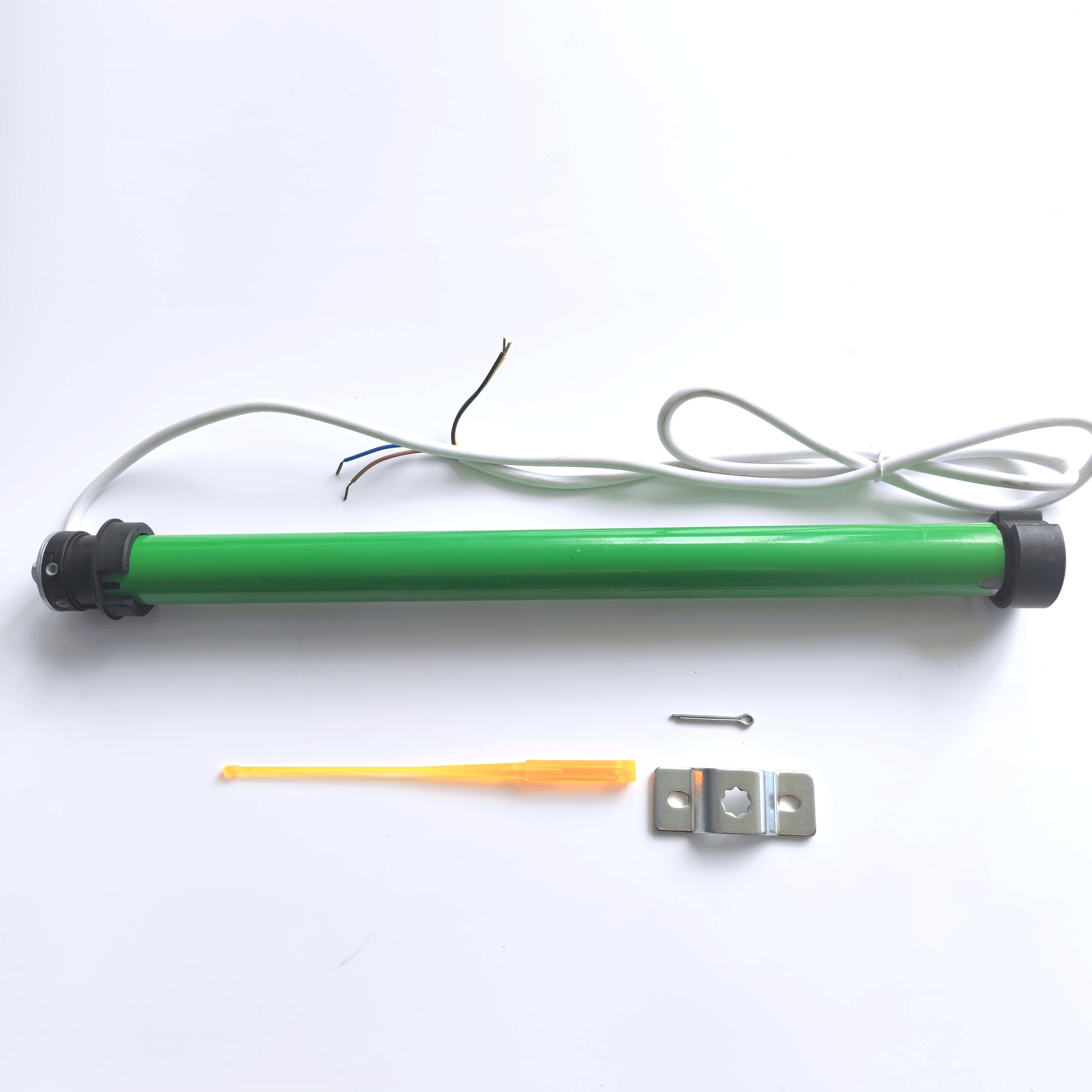

Tubular Motor
-
Usage:
-
Electric Shutter
-
Speed:
-
17/28 rpm
-
Power:
-
AC 95/125W
-
Color:
-
Depend on your need
-
Model:
-
35-5 standard
-
Certification:
-
ce
Quick Details
-
AC Voltage:
-
220-230/100-110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WeiYu
-
Model Number:
-
WY35-5S
-
Frequency:
-
50/60Hz
-
Name:
-
Tubular Motor
-
Usage:
-
Electric Shutter
-
Speed:
-
17/28 rpm
-
Power:
-
AC 95/125W
-
Color:
-
Depend on your need
-
Model:
-
35-5 standard
-
Certification:
-
ce
Product Description
Remarks:
we have many other accessories, please feel free to ask us, and tell us what you need specifically.
Usage
Our motor can be used in roller shutters, garage door, projection screen, and awning.
Specification
|
Brand name
|
WEIYU
|
|
Model
|
WY35-5S
|
|
Diameter (mm)
|
35 mm
|
|
Rated Torque (N.m)
|
5 Nm
|
|
Rated Speed (rpm)
|
17/28 rpm
|
|
Rated Power (W)
|
95/125 w
|
|
Rated Current (A)
|
0.6/0.65 A
|
|
Running Time (min)
|
>4 min
|
|
Limit Rating (turn)
|
35 turns
|
|
Complete Length (mm)
|
520 mm (can be customized)
|
|
Rated Voltage (V)
|
220 ~ 230V / 110V
|
|
Rated Frequency (Hz)
|
50Hz / 60Hz
|
Packing & Delivery
Box
We pack one motor and its accessories in one box.
Carton
Generally we pack 10 boxes in one carton.
Pallets
If the quantity is large, f
or the safety of product transportation, we pack many cartons in a pallets.
