Quick Details
-
Wattage:
-
750w
-
MOQ:
-
1set
-
Size:
-
1430x580x1100mm
-
Net weight:
-
280kg
-
Model:
-
CT800
-
Brand:
-
CTMACH
-
Voltage:
-
110V/220V/380V
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CTMACH
-
Weight (KG):
-
280
-
Wattage:
-
750w
-
MOQ:
-
1set
-
Size:
-
1430x580x1100mm
-
Net weight:
-
280kg
-
Model:
-
CT800
-
Brand:
-
CTMACH
-
Voltage:
-
110V/220V/380V
-
After-sales Service Provided:
-
Online support

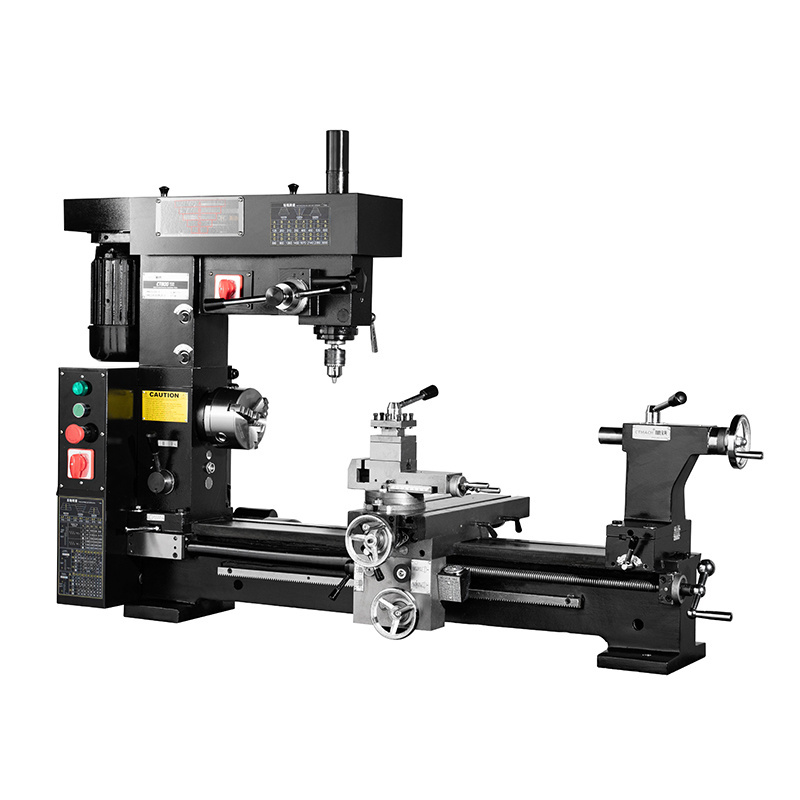

CT500/CT800 Combo Lathe/Mill
1. A kind of combination machines with turning, milling, drilling and threading.
2. Metric or imperial thread cutting.
3. Suitable for processing metal, wood and other materials.
4. Excellent advantage of various functions, small occupation and economization.
5. Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
T-slots in cross slide
Carriage lock
Power cross feed
Power longitudinal feed
Fine downfeed
Hardened and ground bedways
Two separate motors
Built-in vise
Adjustable mill/drill head
|
SIMILAR PRODUCTS
|
CT500
|
CT800
|
||
|
TURNING
|
|
|
||
|
Swing Over Bed
|
420mm
|
|
||
|
Swing Over Cross Slid
|
150mm
|
|
||
|
Distance Between Centers
|
500mm
|
800mm
|
||
|
Spindle Taper
|
MT4
|
|
||
|
Spindle Bore
|
28mm
|
|
||
|
Tailstock Sleeve Travel
|
70mm
|
|
||
|
Tailstock Taper
|
MT3
|
|
||
|
Large Carriage Travel
|
440mm
|
740mm
|
||
|
Middle Carriage Travel
|
200mm
|
|
||
|
Longitudinal Feeds (Grade)
|
0.05-0.35mm/r (12)
|
|
||
|
Metric Thread (Grade)
|
0.7-6mm
|
|
||
|
Inch Thread (Grade)
|
4-120 T.P.I
|
|
||
|
Spindle Speeds (Grade)
|
160-1360RPM (7)
|
|
||
|
Motor Power
|
0.75KW
|
|
||
|
DRILLING AND MILLING
|
|
|
||
|
Max. Drilling Diamter
|
25mm
|
|
||
|
Max. Face Milling Capacity
|
80mm
|
|
||
|
Max. Vertical Milling Capacity
|
16mm
|
|
||
|
Worktable Size
|
475*160mm
|
|
||
|
Spindle Taper
|
MT3
|
|
||
|
Spindle Travel
|
110mm
|
|
||
|
Distance from Spindle Axis to Column Guide Rail
|
285mm
|
|
||
|
Distance From Spindle End to Table
|
306mm
|
|
||
|
Spindle Speeds (Grade)
|
125-3000RPM (16)
|
|
||
|
Motor Power
|
0.75KW
|
|
||
|
OTHER
|
|
|
||
|
N.W./G.W.
|
245kg/285kg
|
275kg/325kg
|
||
|
Overall Dimensions
|
1100*650*965mm
|
1400*650*965mm
|
||
Product Acessories
