Quick Details
-
Model Number:
-
SAE 100R7 R8
-
Model:
-
reinforced wire hose
-
Material:
-
rubber
-
length:
-
1000mm
-
certificate:
-
CE
-
Color:
-
Black
-
MOQ:
-
500 Meters
-
Standard:
-
SAE100
-
Size:
-
1/4"~2"
-
Product name:
-
High Pressure Hydraulic Hose
-
Reinforcement:
-
High Tensile Steel Wire
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MENSION
-
Model Number:
-
SAE 100R7 R8
-
Model:
-
reinforced wire hose
-
Material:
-
rubber
-
length:
-
1000mm
-
certificate:
-
CE
-
Color:
-
Black
-
MOQ:
-
500 Meters
-
Standard:
-
SAE100
-
Size:
-
1/4"~2"
-
Product name:
-
High Pressure Hydraulic Hose
-
Reinforcement:
-
High Tensile Steel Wire

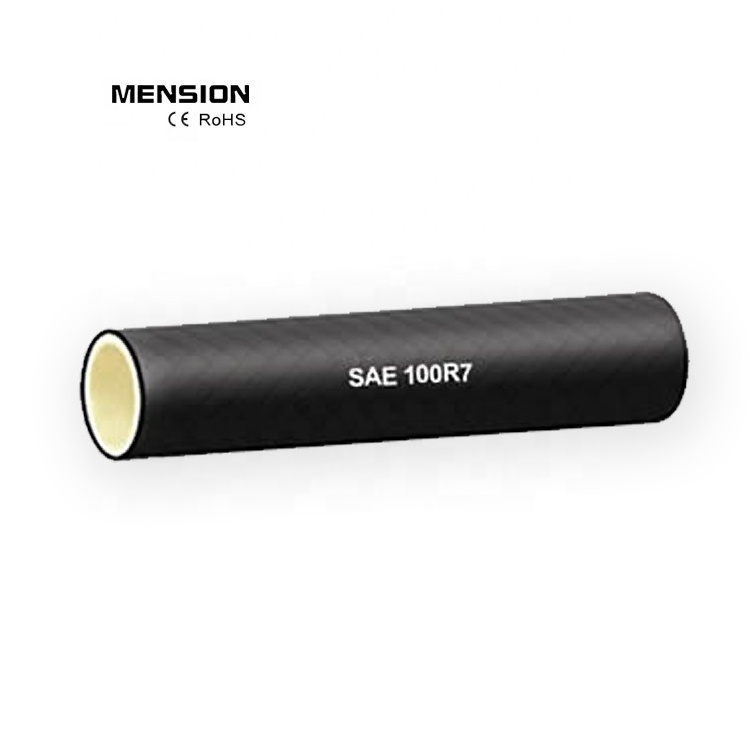

SAE100 R7 R8 one or two layer braided high tensile steel wire thermoplastic hydraulic rubber hose with good price for sale
Recommended For:
medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R7 ,SAE100 R8 AT.
Tube:
White,oil resistant, thermoplastic layer.
Reinforcement:
Synthetic fiber
Cover: Colorful, oil, abrasion and weather resistant, thermoplastic cover.
Temperature Range:
-40℉ to +250℉ (-40℃ to +120℃)
Products Application :
Hydraulic hose SAE 100R7 R8 can be used for paint machine.
Hose range suitable for use with petroleum base hydraulic fluids.
Steel Wire Braid Resin Hose
INNER TUBE: Oil resistant seamless thermoplastic Polyamide (PA) tube.
REINFORCEMENT: one or two layer braided high tensile steel wire.
COVER: Black high abrasion resistant polyurethane.
SAE100 R7 Thermoplastic Hydraulic Hose APPLICATION: Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.
SAE100 R7 Thermoplastic Hydraulic Hose TEMPERATURE RANGE: -40℃ (-104 ℉ ) to 100℃(+212 ℉)
Fibre Or Wire Braid Resin Twin Hoe
INNER TUBE: Oil resistant seamless thermoplastic Polyamide (PA) tube.
REINFORCEMENT: one or two layer braided high tensile synthetic fibre.
COVER: Black high abrasion resistant polyurethane.
SAE100 R7 Thermoplastic Hydraulic Hose APPLICATION: Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.
Fiber Braid(Nonmetallic) Resin Hose
INNER TUBE: Oil resistant seamless thermoplastic Polyamide (PA) tube.
REINFORCEMENT: one or two layer braided high tensile synthetic fibre.
COVER: Black high abrasion resistant polyurethane.
SAE100 R7 Thermoplastic Hydraulic Hose APPLICATION: Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.
SAE100 R7 Thermoplastic Hydraulic Hose TEMPERATURE RANGE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)
SAE 100 R8 thermoplastic hydraulic hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids and it is mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality hydraulic fluids resistant thermoplastic, making the hose widely used for the delivery of hydraulic fluids. The reinforcement is made from suitable synthetic fiber. The cover is made from weather and hydraulic fluids resistant thermoplastic, making the hose have longer service life
Raw Material:
imported rubber materials LG NBR rubber from South Korea,
imported BELKTA steel wire with high tensile strength2750Mpa from Belgium.
Good quality materials make our hydraulic hose steady performance ,
good decentrality, excellent oil resistance.
| Delivery time | 5 days after receiving payment |
| Package | standard wood case |
