Quick Details
-
Model Number:
-
ST-01
-
Product name:
-

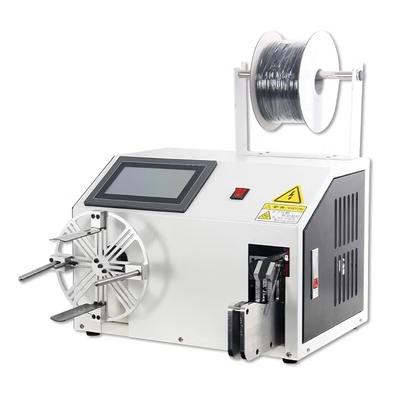

Automatic Wire Coiling Machine
-
Function:
-
Cable Tying
-
Keywords:
-
Operate
-
Voltage:
-
110V/220V
-
Color:
-
-
NET WEIGHT:
-
35KG
-
Warranty:
-
1 Year
-
Advantage:
-
Higher Efficiency
-
Customize:
-
Support
-
Machine size:
-
45*51*30CM
Quick Details
-
Use:
-
Automatic Wire Coiling Machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STRONG
-
Model Number:
-
ST-01
-
Product name:
-
Automatic Wire Coiling Machine
-
Function:
-
Cable Tying
-
Keywords:
-
Operate
-
Voltage:
-
110V/220V
-
Color:
-
-
NET WEIGHT:
-
35KG
-
Warranty:
-
1 Year
-
Advantage:
-
Higher Efficiency
-
Customize:
-
Support
-
Machine size:
-
45*51*30CM
Product Description
1. The automatic winding and binding machine produced by our company is controlled by PLC program, the LCD text is used for parameter setting, and the operation is simple and convenient. The employee only needs to place the wire on the winding opening and pedal once to start the automatic winding, and then place the wound wire at the binding opening, and the machine can automatically tie the winding.
2. You can set the number of coils, the number of coils and the length of the cable tie.
3. All use stepper motors, the winding reel can be stopped at a fixed point, which is very convenient for the next manual cycloid; the operation is simple and easy to understand.
4.The machine has high working efficiency, can save 1-2 labor costs, reduce staff work intensity, environmental protection and low noise. A series of advantages such as flexible application, can be tied into a figure or circle type, or can be used for winding or binding function alone
Machine Parameter
|
Suitable for cable tie length
|
200-300mm
|
|
Applicable bundle diameter
|
40-80mm
|
|
Adjustable range of reel
|
50-300mm
|
|
Winding motor torque
|
18Nu(N)
|
|
Rated power
|
<300W
|
|
Volume: without cable tie bracket
|
550×610×420
|
|
Input voltage
|
AC220V 50HZ/60HZ Special voltage can be customized
|
|
Winding speed
|
1-13 laps / sec
|
|
Wire binding speed
|
0.6 seconds / time
|
|
weight
|
40KG
|
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
