Quick Details
-
Production Capacity:
-
220t/h
-
Power:
-
60kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NIVO
-
Dimension(L*W*H):
-
5820*4534*2995mm
-
Minimum thickness of paving:
-
10mm
-
Traveling speed:
-
1.55~4.62 km/h
-
Paving speed:
-
2.03~6.07 m/min
-
Smoothness:
-
3mm/3m
-
Maximum climbing capacity:
-
20%
-
Engine Model:
-
QSB3.9-C80-31
-
Type:
-
Water cooling with 4 cylinders
-
Diesel oil tank capacity:
-
143L
-
Length:
-
5820mm
-
Width:
-
4534mm
Quick Details
-
Max. Paving Thickness:
-
250mm
-
Weight:
-
10 kg
-
Engine Brand:
-
Cummins
-
Production Capacity:
-
220t/h
-
Power:
-
60kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NIVO
-
Dimension(L*W*H):
-
5820*4534*2995mm
-
Minimum thickness of paving:
-
10mm
-
Traveling speed:
-
1.55~4.62 km/h
-
Paving speed:
-
2.03~6.07 m/min
-
Smoothness:
-
3mm/3m
-
Maximum climbing capacity:
-
20%
-
Engine Model:
-
QSB3.9-C80-31
-
Type:
-
Water cooling with 4 cylinders
-
Diesel oil tank capacity:
-
143L
-
Length:
-
5820mm
-
Width:
-
4534mm
Product Description
Specification 2.5-12.5m paving width can be optional wheel/crawler, concrete paver...

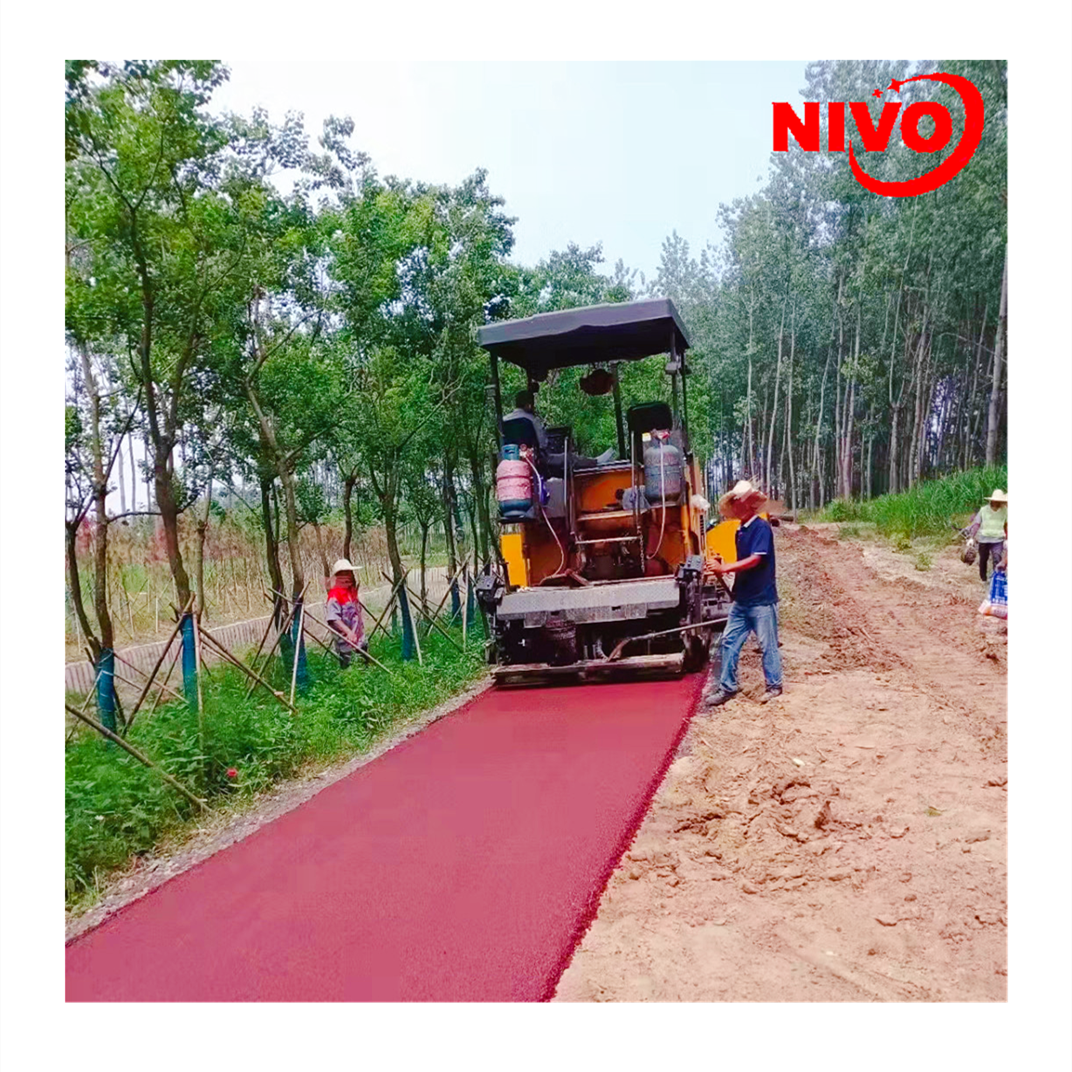

Suitable for paving highway, urban road, plaza, square and so on. It uses advanced double sets of hydraulic stretching screed and
auto level sensing device, so paving density and smoothness is high. The easily wearing parts use international advanced
anti-frunction material, the reliability of machine is improved.
auto level sensing device, so paving density and smoothness is high. The easily wearing parts use international advanced
anti-frunction material, the reliability of machine is improved.
|
Specifications
|
|
|
|
Paving Width (mm)
|
2500-4500
|
|
|
Paving Thickness (mm)
|
10-250
|
|
|
Traveling Speed (km/h)
|
1.55～4.62 km/h
|
|
|
Paving Speed (m/min)
|
2.03～6.07 m/min
|
|
|
Smoothness
|
3mm/3m
|
|
|
Max. Theoretical output (t/h)
|
250
|
|
|
Hopper Capacity (t )
|
10
|
|
|
Maximum climbing capacity
|
20%
|
|
|
Hopper capacity
|
10T
|
|
|
Engine
|
CUMMINS QSB3.9-C80-31
|
|
|
Power
|
60Kw/2200r/min
|
|
Details Images
General color is orange, green is we special designed for customers can be optional
Wheel type is available
different spare parts
concrete paver can be optional
Packing & Delivery
Related Products
Bulk Export
Delivery site
producing departments
Our Service
After-Sales Service details
Warranty
At NIVO,we provide 1year warranty for any machine of us. During the period of warranty, the defective part will be repaired or replaced free of charge, in case the defect of material or workmanship has occured with spare parts in normal operation at our discretion.
Warranty
Spare parts
NIVO maintain an extensive and high quality spare parts inventory for every of our equipment. From the small bearing to the complex circuit board, world Equipment is committed to having all parts on hand to keep your project running. Welcome submit your spart parts request, list product name, model, equipment serial number, description of required parts.
Uptime Solutions
To expedite delivery time for our customers, booking of vessels are made way in advance; together with the production department to optimise resources with the extra hours involved in order to complete the production so as to be ahead of schedule.
Field Service
NIVO provides our customers with a single point of contact and accountability for product support from telephonic, e-mail and web-based inquiries to the dispatch of field engineers and technicians for on-site repairs.
Training
NIVO program adopts a competency-based training approach. Classroom teaching and hands-on practice-oriented training combine to enhance the learning of concepts and acquisition of technical skills. This will aid them in operating our machines, pick up, drill and upgrade their skills for proper operation, maintenance and breakdown repair.
NIVO maintain an extensive and high quality spare parts inventory for every of our equipment. From the small bearing to the complex circuit board, world Equipment is committed to having all parts on hand to keep your project running. Welcome submit your spart parts request, list product name, model, equipment serial number, description of required parts.
Uptime Solutions
To expedite delivery time for our customers, booking of vessels are made way in advance; together with the production department to optimise resources with the extra hours involved in order to complete the production so as to be ahead of schedule.
Field Service
NIVO provides our customers with a single point of contact and accountability for product support from telephonic, e-mail and web-based inquiries to the dispatch of field engineers and technicians for on-site repairs.
Training
NIVO program adopts a competency-based training approach. Classroom teaching and hands-on practice-oriented training combine to enhance the learning of concepts and acquisition of technical skills. This will aid them in operating our machines, pick up, drill and upgrade their skills for proper operation, maintenance and breakdown repair.
