This kind of vacuum Brazing furnace working temperature can reach 1350℃; Suitable for workpiece with
silver/copper/nickel base as flux.
Due to its high vacuum and high temperature, it can also be used for sintering and heat treatment of other workpieces.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
12
-
Product Name:
-
Vacuum Brazing furnace(Molybdenum Foil Furnace)
-
Keyword:
-
Vacuum Furnace Made
-
Model:
-
DM-QHM-669
-
Max Temp.(℃):
-
1350
-
Chamber Size (W*H*D)mm:
-
600*600*900
-
Power(KW):
-
42
-
Voltage:
-
380v
-
Advantage:
-
Easy Operation High Efficiency
-
Product type:
-
Industrail Furnace
-
Material:
-
Molybdenum Foil Furnace
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DMing
-
Weight (T):
-
2 T
-
Power (kW):
-
12
-
Product Name:
-
Vacuum Brazing furnace(Molybdenum Foil Furnace)
-
Keyword:
-
Vacuum Furnace Made
-
Model:
-
DM-QHM-669
-
Max Temp.(℃):
-
1350
-
Chamber Size (W*H*D)mm:
-
600*600*900
-
Power(KW):
-
42
-
Voltage:
-
380v
-
Advantage:
-
Easy Operation High Efficiency
-
Product type:
-
Industrail Furnace
-
Material:
-
Molybdenum Foil Furnace
Product Description

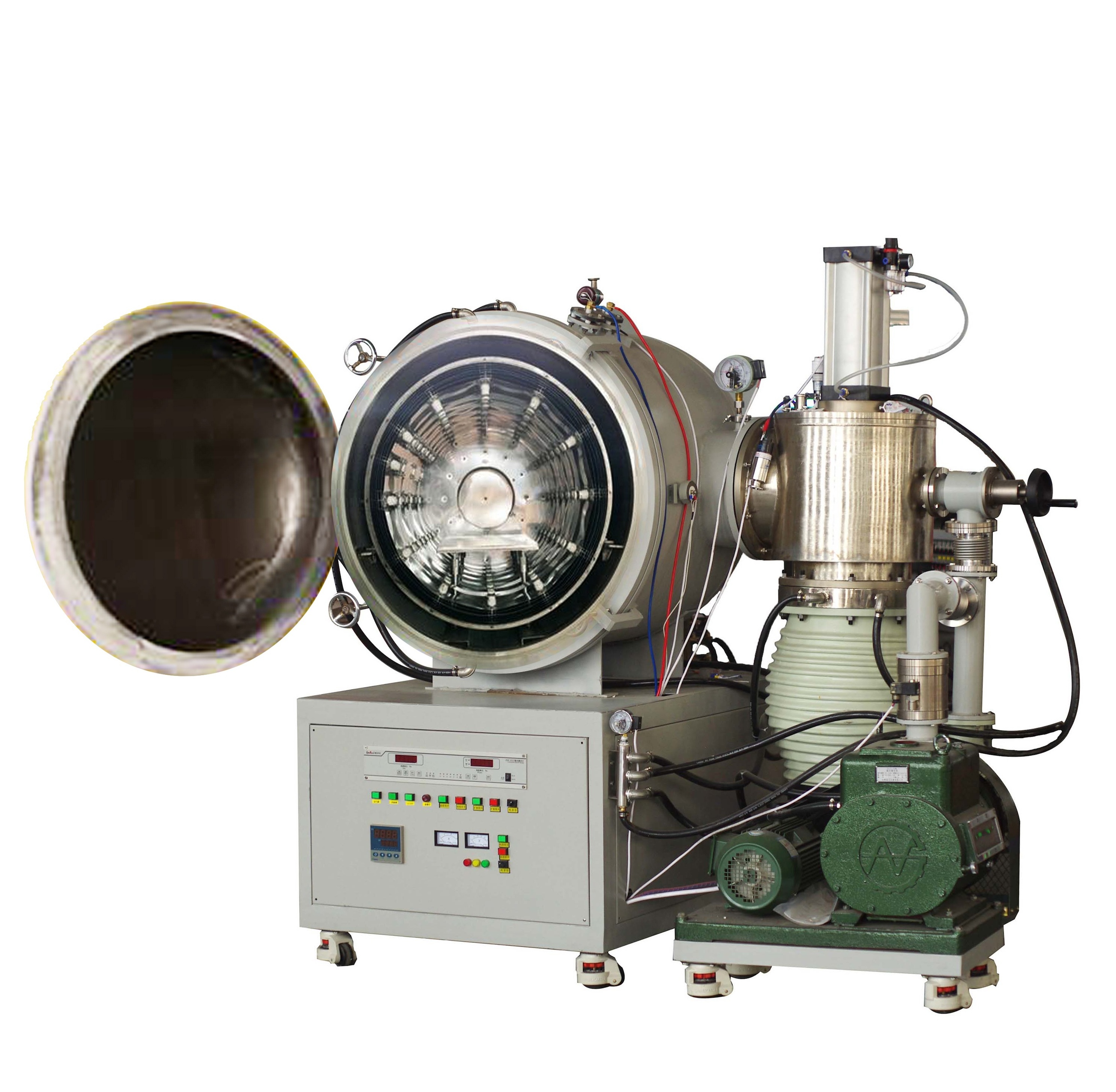

Silver/Copper/Nickel-based Vacuum Brazing furnace
(Molybdenum Foil Furnace)
product structure
Features
* Using molybdenum foil metal furnace, and molybdenum and tropical for heating element, the highest temperature can reach 1350 ℃.
* The annular distribution of molybdenum heating belt and the furnace, the surrounding radiation heating, the furnace temperature uniformity is high, up to plus or minus 5 degrees.
* Clean stainless steel furnace, equipped with mechanical pump + diffusion pump vacuum unit, cold vacuum 10-3pa;Working vacuum is 10-2pa.
* As required, inert gas can be added for accelerated cooling.
* The annular distribution of molybdenum heating belt and the furnace, the surrounding radiation heating, the furnace temperature uniformity is high, up to plus or minus 5 degrees.
* Clean stainless steel furnace, equipped with mechanical pump + diffusion pump vacuum unit, cold vacuum 10-3pa;Working vacuum is 10-2pa.
* As required, inert gas can be added for accelerated cooling.
Specification
|
Model
|
Chamber Size
(W*H*D)mm |
Temp.
|
Power（KW）
|
Voltage
|
||||
|
DM-QHM-223
|
200*200*300
|
1350℃
|
42
|
380V
|
||||
|
DM-QHM-334
|
300*300*400
|
1350℃
|
72
|
380V
|
||||
|
DM-QHM-446
|
400*400*600
|
1350℃
|
120
|
380V
|
||||
|
DM-QHM-557
|
500*500*700
|
1350℃
|
160
|
380V
|
||||
|
DM-QHM-669
|
600*600*900
|
1350℃
|
225
|
380V
|
||||
|
Can Be Customized
|
|
|
|
|
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
