To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and lack of process performance.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
Greensun
-
Model Number:
-

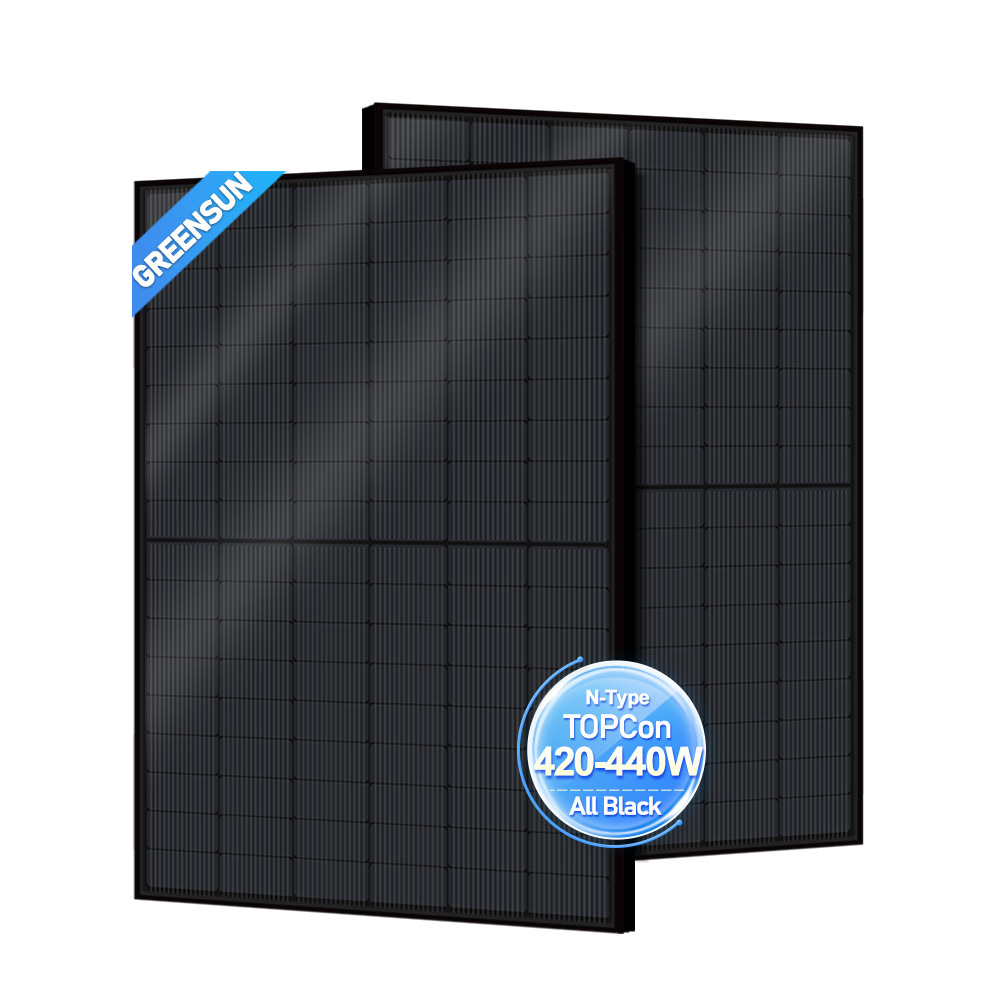

GSM-M10/108HBD 420-440W
-
Place of Origin:
-
Anhui
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-
Mono Solar Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Black
-
OEM:
-
Acceptable
-
Weight:
-
24.5KG
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4mm ^2 300mm PV Cable
-
Front Glass:
-
3.2mm High Transparency Tempered Glass
-
Packing:
-
37PCS / Pallet
-
Operate Temperature:
-
-40°C to +85°C
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.27%
-
Warranty:
-
30 years
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM-M10/108HBD 420-440W
-
Place of Origin:
-
Anhui
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-
Mono Solar Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Black
-
OEM:
-
Acceptable
-
Weight:
-
24.5KG
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4mm ^2 300mm PV Cable
-
Front Glass:
-
3.2mm High Transparency Tempered Glass
-
Packing:
-
37PCS / Pallet
-
Operate Temperature:
-
-40°C to +85°C
Product Description
|
PV Module
|
GSM-M10-108H (440W = Peak Power Watts)
|
|
|
|
|
||||
|
Nominal Power (Pmax)
|
420W
|
425W
|
430W
|
435W
|
440W
|
||||
|
Open Circuit Voltage (Voc)
|
31.51V
|
31.7V
|
31.88V
|
32.07V
|
32.26V
|
||||
|
Short Circuit Current (Isc)
|
13.33A
|
13.41A
|
13.49A
|
13.57A
|
13.65V
|
||||
|
Voltage at Nominal Power (Vmp)
|
38.11V
|
38.3V
|
38.49V
|
38.68V
|
38.87V
|
||||
|
Current at Nominal Power (Imp)
|
14.07A
|
14.15A
|
14.23A
|
14.31A
|
14.39V
|
||||
|
Module Efficiency (%)
|
21 .51
|
21.76
|
22.02
|
22.27
|
22.53V
|
||||
|
Operating Temperature
|
-40°C to +85°C
|
|
|
|
|
||||
|
Nominal Power (P max)
|
316W
|
320W
|
323W
|
327W
|
331W
|
|
Open Circuit Voltage (Voc)
|
29.34V
|
29.50V
|
29.63V
|
29.78V
|
29.92V
|
|
Short Circuit Current (Isc)
|
10.76A
|
10.83A
|
10.91A
|
10.98A
|
11.06A
|
|
Voltage at Nominal Power (Vmp)
|
36.2V
|
36.38V
|
36.56V
|
36.74V
|
36.92V
|
|
Current at Nominal Power (Imp)
|
11.36A
|
11.42A
|
11.49A
|
10.55A
|
11.62A
|
Grade A Material
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content to Provide Good Encapsulation and Protect Cells From Vibration With Longer Durability
* >91% Higher Transmittance EVA,
* Higher GEL Content to Provide Good Encapsulation and Protect Cells From Vibration With Longer Durability
Mono 16BB Half Cut Solar Cells
More than 22% Efficiency
182mm x 182mm Size
Anti-Pid
IP68 Water proof Junction Box
Innovative full-glue-filled junction box
Outstanding sealability
Outstanding sealability
Sliver and Black Color Optional
Aluminum Alloy
120N Tensile Strength Frame
4mm2 Qualified cable with MC4
500N Tensile Strength
500N Tensile Strength
Production Line
100% Solar Cells Sorting
Color and performance selection
Middle Test
EVA and appearance inspection
Ensure PT / EVA size meets technical requirements
Ensure that the product is free of scratches, creases, debris, etc.
Overall inspection
PV Module
appearance
Ensure that the product has no color difference
and no burrs.
Make its reach Grade A standard.
EL Testing
Solar panel power inspection
Ensure that
there are no cracks or defects inside the module.
Ensure that the power meets customer standards.
Product Packaging
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
Our Factory
More than 800MW production capacity per year
5BB PERC, Half-cut, 9BB half-cut solar panel production line
Strict quality control procedures
Export more than 160 countries
OEM service accept.
Project Cases
800KW Solar Power System For Mall in
Argentina
16KW Solar Power System for Home Use in Canada
300KW Project in Sweden
100KW Solar System in Poland
30KW Solar System in South Africa
2MW Solar Power System in Germany
