Quick Details
-
Max. Loading Capacity:
-
5-5000L
-
Weight (KG):
-
1200 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shangyu
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Custom Made
-
Power (kW):
-
4 kW
-
Name:
-
Vacuum Emulsifying Mixer
-
After-sales Service Provided:
-
Overseas third-party support available
-
Type:
-
Hydraulic Lifting
-
Capacity:
-
5-5000L
-
Working state:
-
Vaccum
-
Product name:
-
Cream,body lotion,ointment
-
Liffting system:
-
Optional
-
Heating system:
-
electric or steam
-
Electric control system:
-
button or PLC
Quick Details
-
Barrel Volume (L):
-
120
-
Max. Loading Volume (L):
-
100 L
-
Range of Spindle Speed(r.p.m):
-
0 - 63 r.p.m
-
Max. Loading Capacity:
-
5-5000L
-
Weight (KG):
-
1200 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shangyu
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Custom Made
-
Power (kW):
-
4 kW
-
Name:
-
Vacuum Emulsifying Mixer
-
After-sales Service Provided:
-
Overseas third-party support available
-
Type:
-
Hydraulic Lifting
-
Capacity:
-
5-5000L
-
Working state:
-
Vaccum
-
Product name:
-
Cream,body lotion,ointment
-
Liffting system:
-
Optional
-
Heating system:
-
electric or steam
-
Electric control system:
-
button or PLC
Top quality food grade vacuum emulsifying mixer machine equipment for chocolate/butter/mayonnaise/margarine/honey price
FEATURES:
1,The vacuum emulsifiers produced by our company include many varieties. Various high quality products can be customized according to customer’s requirements.
2,Provided with single-cylinder and double-cylinder lifting system , which can freely lift or lower the pot lid and easy to clean, the emulsifying pot can adopt tilt discharge.
3, SIEMENS frequency converter for speed adjustment, keeping the machine working stably and durably.
4,The vacuum defoaming can make the materials meet the requirement of being sanitary and aseptic. The vacuum sucking material adopted can avoid dust, especially for the powder products.
5,The tank body and the pipes adopt mirror polishing, which fully confirms to GMP requirements.
6,Complex scraping board caters to body of blending groove and scrape out viscosity material on boiler wall.
7,According to technological requirements, the tank can heat and cool the material. The heating modes can be chose to steam or electric heating according to customer requirements.
8,Material contact parts all use SUS316L .
9,Advanced PLC touch screen control is optional , which is equipped with color touch screen to completely supervise the data of material temperature, blending and homogenizing rotation speed and time etc. and print out the above data.
|
Model
|
Capacity
|
Homogenizer Motor |
Stir Motor
|
Total Power(KW) |
(Mpa) Limit Vacuum |
|||
| KW | r/min | KW | r/min | Steam heating | Electric heating | |||
| VEM-5 | 5L | 0.37 | 0-3000 | 0.18 | 0-63 | 2 | 5 | -0.09 |
| VEM-10 |
10
L
|
0.75 |
0-3000
|
0.37 |
0-63
|
3 | 6 | -0.09 |
| VEM-50 |
50
L
|
3-5.5 |
0-3000
|
1.1 |
0-63
|
9 | 18 | -0.09 |
| VEM-100 |
100
L
|
4-7.5 |
0-3000
|
1.5 |
0-63
|
13 | 32 | -0.09 |
| VEM-200 |
200
L
|
5.5-11 |
0-3000
|
2.2 |
0-63
|
15 | 45 | -0.09 |
| VEM-300 |
300
L
|
7.5-11 |
0-3000
|
2.2 |
0-63
|
18 | 49 | -0.09 |
| VEM-500 |
500
L
|
11 |
0-3000
|
4 |
0-63
|
24 | 63 | -0.09 |
| VEM-1000 |
1000
L
|
15 |
0-3000
|
5.5 |
0-63
|
30 | 90 | -0.09 |
| VEM-2000 |
2000L
|
15 | 0-3000 | 7.5 | 0-63 | 40 | - | -0.09 |
Note:In case of inconformity of the data in the table due to technical improvement or customization,the real object shall prevail.

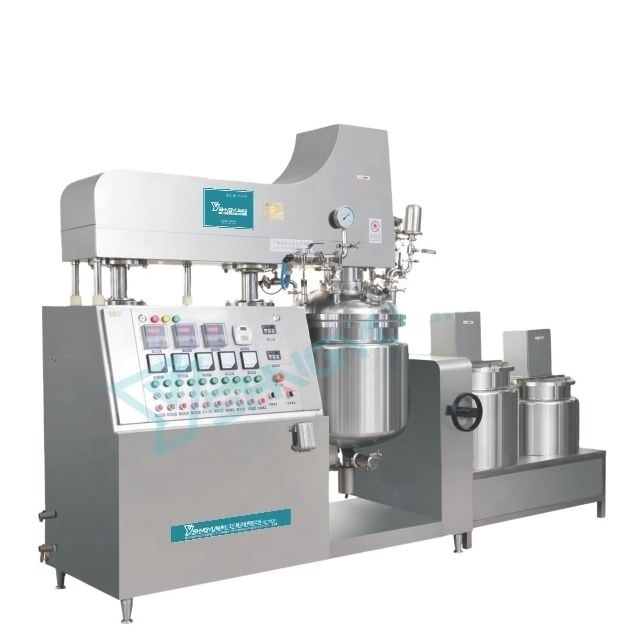

Machine Picture:
