Quick Details
-
Place of Origin:
-
Hebei, China
-
After-sales Service Provided:
-
Online support, Free spare parts, Video technical support
-
Product name:
-
CZ Purlin Making Machine
-
Processing Thickness(mm):
-
1.6-3.0mm
-
Profile sizes:
-
100-300mm
-
Material of Rollers:
-
Cr12
-
Diameter of Shaft:
-
70mm
-
Production Speed:
-
0-10m/min
-
Roller Driven:
-
Decelerating Motor+Chain Transmission
-
Cutting Model:
-
Hydraulic Profile Cutting
-
Length Measurement:
-
Encoder
-
Operation Model:
-
Button + Touch Screen
-
Certification:
-
CE ISO SGS
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
0-15m/min
-
Place of Origin:
-
Hebei, China
-
After-sales Service Provided:
-
Online support, Free spare parts, Video technical support
-
Product name:
-
CZ Purlin Making Machine
-
Processing Thickness(mm):
-
1.6-3.0mm
-
Profile sizes:
-
100-300mm
-
Material of Rollers:
-
Cr12
-
Diameter of Shaft:
-
70mm
-
Production Speed:
-
0-10m/min
-
Roller Driven:
-
Decelerating Motor+Chain Transmission
-
Cutting Model:
-
Hydraulic Profile Cutting
-
Length Measurement:
-
Encoder
-
Operation Model:
-
Button + Touch Screen
-
Certification:
-
CE ISO SGS

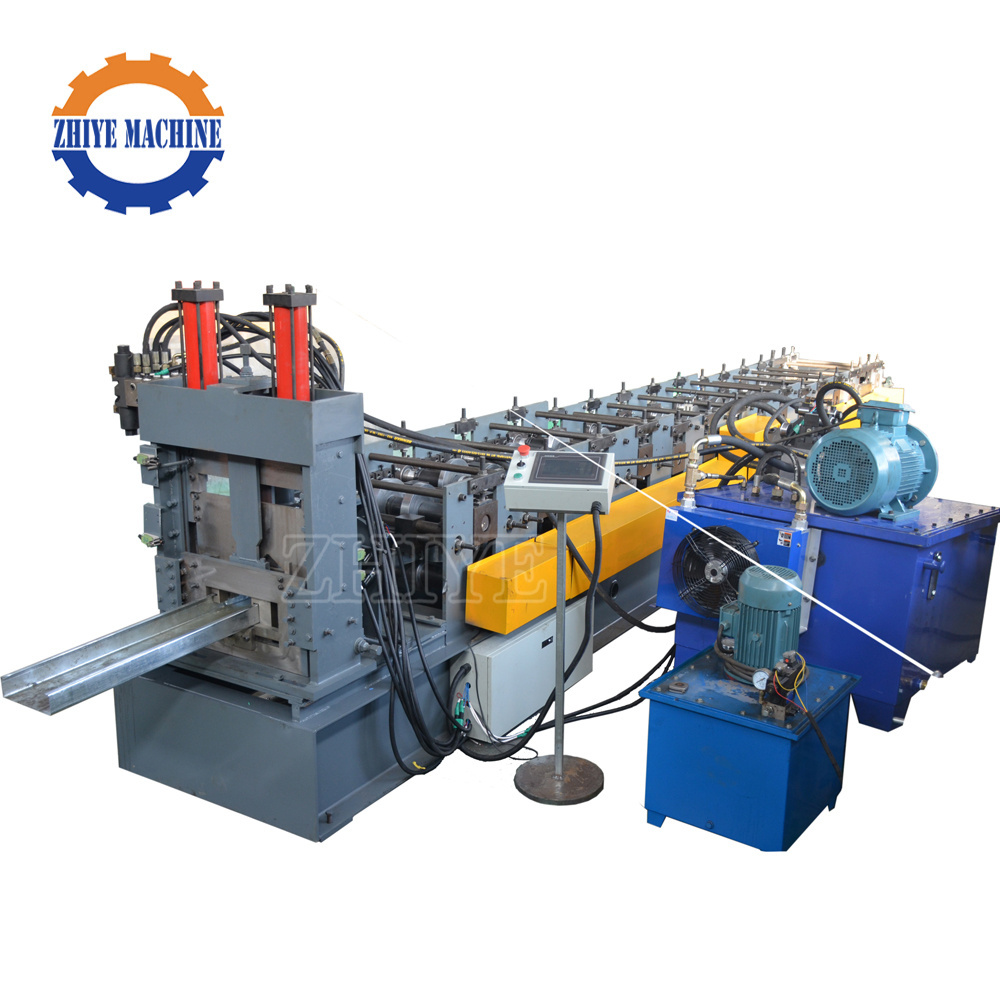

C Metal Former Steel Z-Purlin Making Z Purlin Roll Forming Machine Manufacturer
|
Processing Material |
GI |
|
Processing Thickness(mm) |
1.6-3.0mm |
|
P rofile sizes |
100-300mm |
|
Material of Rollers |
Cr12 |
|
Diameter of Shaft |
70mm |
|
Production Speed |
0-10m/min |
|
Roller Driven |
Decelerating Motor+Chain Transmission |
|
Cutting Model |
Hydraulic Profile Cutting |
|
Length Measurement |
Encoder |
|
Operation Model |
Button + Touch Screen |
Abstract of the C Metal Former Steel Z-Purlin Making Z Purlin Roll Forming Machine Manufacturer
C-shaped purlin is good in bending resistance, straightness, and it can cut, punch automatically, it is very easy and convenient to use. It can be used as bearing structure in big and medium sized building, such as factories, warehouses, garages, hangars, gyms, exhibitions, theater and so on .
Features of this C Metal Former Steel Z-Purlin Making Z Purlin Roll Forming Machine Manufacturer
lower cost
high efficiency
reliable working
low energy consumption
Components of the C Metal Former Steel Z-Purlin Making Z Purlin Roll Forming Machine Manufacturer
steel strip supporting frame
Feeding platform
Automatic shearing system
Hydraulic system Steel strip unfolding system
Computer control system (imported computer)
High-precision automatic counter
Receiving table
Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel shee
Optional components of the C Metal Former Steel Z-Purlin Making Z Purlin Roll Forming Machine Manufacturer
·Manual uncoiler frame in different tons
·Hydraulic automatic uncoiler
Working space and workman for the C Metal Former Steel Z-Purlin Making Z Purlin Roll Forming Machine Manufacturer
1. Ground-level land
2. ≥ 5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
Picture for some parts of the C Metal Former Steel Z-Purlin Making Z Purlin Roll Forming Machine Manufacturer for references
Usually the Zinc New Style C / Z Channel Cold Rolling Making Machine Cangzhou Supplier can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
We will offer technical support for all the roll forming machines the whole life. 2 years free spare parts replacement and maintaince. Our international technicians can be reach your workshop at the first time if your machines has problem.
Cangzhou Zhiye Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.
Our main roll forming machines are:
Roofing sheet roll forming machine
Glazed tile roll forming line
Floor decking panel making machines
CUZ purlin production line
Roller shutter door manufacturer machinery
Steel truss frame rolling forming equipments
Downspout cold forming machines
Barrel corrugated cold forming line
Sandwich panel cold production line
Shelf rack cold roll forming machinery
Pipe/tube mill roll forming machine
For further information, welcome to contact at:
