Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WELLSUNFAN
-
Model Number:
-
FD07020
-
Color:
-
black
-
Application:
-
for computer case power suply or electronic equipments
-
Name:
-
Cooling Fan Cpu Cooler Heatsink Cpu Cooler Fan
-
Product name:
-
DC Brussless Fan
-
Size:
-
70x70x20mm
-
Usage:
-
Cooling System
-
Bearing Type:
-
Sleeve/2 Balls
-
Motor:
-
DC Brushless Motor
Quick Details
-
Applicable Industries:
-
Hotels, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction works , Advertising Company
-
Electric Current Type:
-
DC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WELLSUNFAN
-
Model Number:
-
FD07020
-
Color:
-
black
-
Application:
-
for computer case power suply or electronic equipments
-
Name:
-
Cooling Fan Cpu Cooler Heatsink Cpu Cooler Fan
-
Product name:
-
DC Brussless Fan
-
Size:
-
70x70x20mm
-
Usage:
-
Cooling System
-
Bearing Type:
-
Sleeve/2 Balls
-
Motor:
-
DC Brushless Motor
70x70x20mm Professional Custom Factory Price Ball Cooling Fan

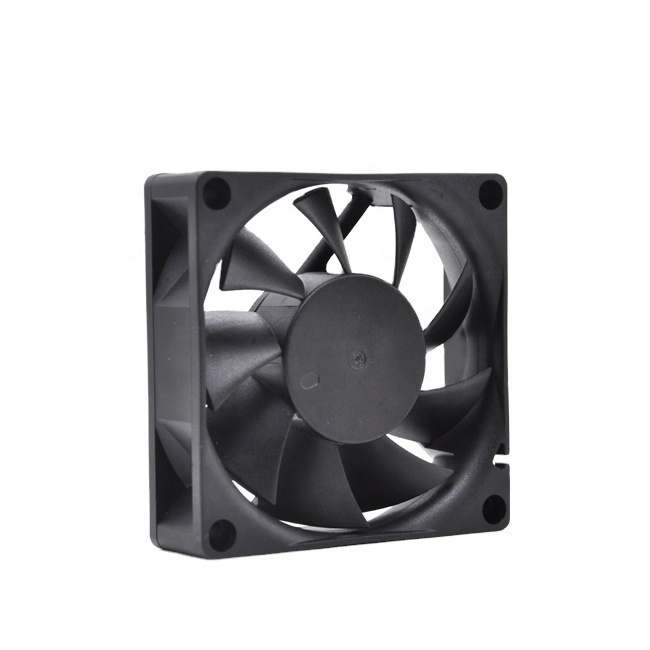

Product Pictures
Fan Guard
Use Environment
| Operating Voltage | 10.2V~13.8V 20.4V~27.6V |
| Operating Temperature/ Humidity | -10°C~70 °C 35%~85%RH |
| Storage Temperature/ Humidity | -40°C~80°C 35%~85%RH |
Optional Function
1. Waterproof Level: IPX5~IP67, fans could be work in wet environment, outdoor or under water with waterproof protection.
2. Wire leading: 2 wires(red wire:positive;black wire:negative)
3 wires(red :positive;black :negative;yellow: PWM)
4 wires(red :positive;black :negative;Yellow :PWM;white:FG)
3. Additional function: auto-restart, temperature control speed, speed detection, stoppage alarm, waterproof etc.
4. We default 220mm wire length without connector, could be customized as your request. we just need the picture of connector and rank of wires for confirm .
Fan Specification
| Model NO. | Bearing System Type | Rated Voltage (VDC) | Speed Type | Rated Current (A) | Rated Speed (RPM) | Air Flow (CFM) |
Aire Pressure (mmAg) |
Noise Level (dBA) |
Weight (g) |
| FD07020 | S/B/D | 12 | H | 0.25 | 3500 | 39 | 3.3 | 38 | 59 |
| FD07020 | S/B/D | 12 | M | 0.18 | 3000 | 34 | 2.5 | 32 | 59 |
| FD07020 | S/B/D | 12 | L | 0.15 | 2500 | 28 | 1.8 | 30 | 59 |
| FD07020 | S/B/D | 24 | E | 0.25 | 4500 | 43 | 5.3 | 42 | 59 |
| FD07020 | S/B/D | 24 | H | 0.22 | 3500 | 39 | 3.3 | 38 | 59 |
| FD07020 | S/B/D | 24 | M | 0.15 | 3000 | 34 | 2.5 | 32 | 59 |
| FD07020 | S/B/D | 24 | L | 0.13 | 2500 | 28 | 1.8 | 30 | 59 |
| FD07020 | S/B/D | 30 | E | 0.25 | 4500 | 43 | 5.3 | 42 | 59 |
| FD07020 | S/B/D | 30 | H | 0.22 | 3500 | 39 | 3.3 | 38 | 59 |
| FD07020 | S/B/D | 30 | M | 0.15 | 3000 | 34 | 2.5 | 32 | 59 |
| FD07020 | S/B/D | 30 | L | 0.13 | 2500 | 28 | 1.8 | 30 | 59 |
Production Equipment
Production Process
