Quick Details
-
Warranty:
-
25 years warranty, 25 years
-
Brand Name:
-
PNG solar
-
Model Number:
-
PNG-590W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2472*1135*35mm
-
Junction Box:
-
IP68 Rated
-
Glass:
-
3.2mm Tempered Low Iron
-
Frame:
-
Anodized Aluminium Alloy
-
Solar cell:
-
A-grade
-
Cable:
-
4mm ^2 300mm PV Cable
-
Application:
-
Commercial,Industrial,Home
-
Backsheet:
-
TPT Material
-
Efficiency:
-
21%
-
Certificates:
-
TUV CE PID ISO
-
Certificate:
-
TUV CE
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21%
-
Warranty:
-
25 years warranty, 25 years
-
Brand Name:
-
PNG solar
-
Model Number:
-
PNG-590W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2472*1135*35mm
-
Junction Box:
-
IP68 Rated
-
Glass:
-
3.2mm Tempered Low Iron
-
Frame:
-
Anodized Aluminium Alloy
-
Solar cell:
-
A-grade
-
Cable:
-
4mm ^2 300mm PV Cable
-
Application:
-
Commercial,Industrial,Home
-
Backsheet:
-
TPT Material
-
Efficiency:
-
21%
-
Certificates:
-
TUV CE PID ISO
-
Certificate:
-
TUV CE

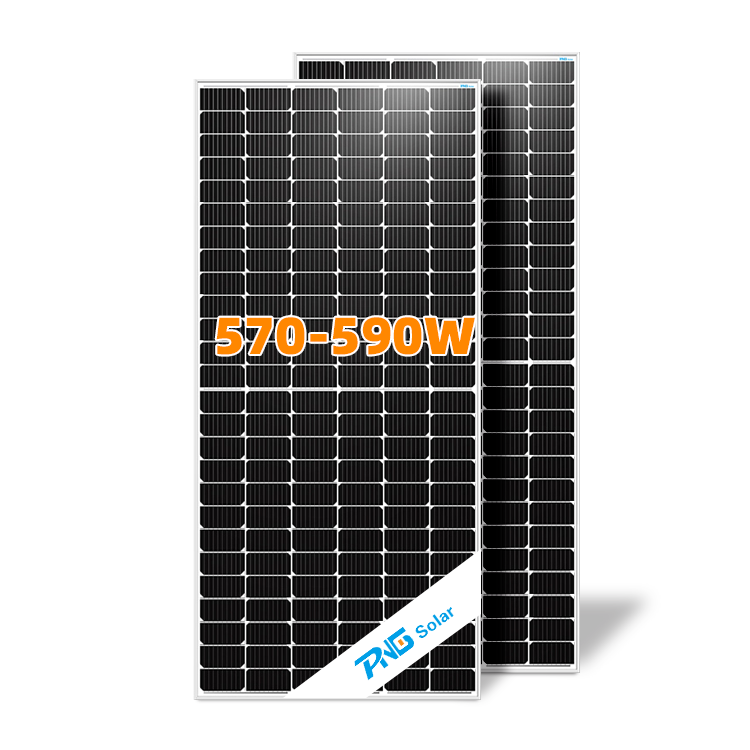

Product Description
Data sheets
ELECTRICAL DATA(STC)
|
Module Type
|
PNG156M-570
|
PNG156M-575
|
PNG156M-580
|
PNG156M-585
|
PNG156M-590
|
||||
|
Rated output (Pmp/Wp)
|
570
|
575
|
580
|
585
|
590
|
||||
|
Short Circuit Current(Isc)
|
13.16A
|
13.75A
|
13.81A
|
13.87A
|
13.94A
|
||||
|
Open Circuit Voltage(Voc)
|
52.9V
|
53.1V
|
53.3V
|
53.5V
|
53.7V
|
||||
|
Maximum Power Current(Impp)
|
12.96A
|
13.01A
|
13.07A
|
13.12A
|
13.17A
|
||||
|
Maximum Power Voltage(Vmpp)
|
44V
|
44.2V
|
44.4V
|
44.6V
|
44.8V
|
||||
|
Module efficiency(%)
|
20.3%
|
20.5%
|
20.7%
|
20.9%
|
21.0%
|
||||
|
Power Tolerance (W)
|
0~+5W
|
0~+5W
|
0~+5W
|
0~+5W
|
0~+5W
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000W/m², Cell Tempera ture 25ºC, AM1.5
|
|
|
|
|
||||
ELECTRICAL DATA(NOCT)
|
Module Type
|
PNG156M-570
|
PNG156M-575
|
PNG156M-580
|
PNG156M-585
|
PNG156M-590
|
||||
|
Rated output (Pmp/Wp)
|
420.2
|
423.7
|
427.6
|
431.1
|
434.6
|
||||
|
Short Circuit Current(Isc)
|
11.04
|
11.08
|
11.13
|
11.18
|
11.23
|
||||
|
Open Circuit Voltage(Voc)
|
49.4
|
49.6
|
49.8
|
50.0
|
50.2
|
||||
|
Maximum Power Current(Impp)
|
10.22
|
10.27
|
10.32
|
10.36
|
10.41
|
||||
|
Maximum Power Voltage(Vmpp)
|
41.1
|
41.3
|
41.4
|
41.6
|
41.8
|
||||
|
Nominal Module Operating Temperature(NOCT)
|
Irradiance 800W/m²,Ambient Temperature 20ºC, AM1.5, Wind Speed 1m/s
|
|
|
|
|
||||
Material
PV CELL.
>Low hot spot effect
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control
>Excellent power generation performance under low irradiation
BACKSHEET.
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).
JUNCTION BOX.
>
IP68 protection level.
>
Unique split junction box design to minimize the loss caused by occlusion.
>
Combination of series circuit and parallel circuit, reduced internal power loss.
EVA.
>Excellent light transmittance and transparency.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
GLASS.
>Precise edge processing and cutting.
>
Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.
Production Process
Project Cases
Delivery Methods
You May Like
FAQ.
What's your payment terms?
TT,Letter of Credit,Paypal,Western Union etc.
Could you send free sample?
Your sample fee will be returned when your place next order.
Can we print our own logo?
Yes absolutely.
What are the advantages of your company?
We are new factory ,now we control thin benifit for developing customers , price 、quality and service will never let customers down！！
