Quick Details
-
Dimension(L*W*H):
-
1500 x 1810 x 1440 mm
-
Weight:
-
1700 KG
-
Place of Origin:
-
Japan
-
Voltage:
-
AC200 ~ 415V 3-phases
-
Power:
-
2.2kVA
-
Key Machines:
-
Suction Nozzle
-
Brand:
-
Juki
-
Product name:
-
Smart Modular Mounter
-
Function:
-
Mount Modular
-
Application:
-
Mount PCB
-
Advantage:
-
Low Power Consumption
-
Placement speed:
-
47,000CPH
-
Placement accuracy:
-
±35μm (Cpk 1)
-
Max Board size:
-
650 x 370 mm (single clamping)
-
Power supply:
-
AC200 ~ 415V 3-phases
-
Min Board size:
-
50 x 50 mm
Quick Details
-
Machinery Capacity:
-
47,000CPH
-
Brand Name:
-
Juki
-
Year:
-
2024
-
Dimension(L*W*H):
-
1500 x 1810 x 1440 mm
-
Weight:
-
1700 KG
-
Place of Origin:
-
Japan
-
Voltage:
-
AC200 ~ 415V 3-phases
-
Power:
-
2.2kVA
-
Key Machines:
-
Suction Nozzle
-
Brand:
-
Juki
-
Product name:
-
Smart Modular Mounter
-
Function:
-
Mount Modular
-
Application:
-
Mount PCB
-
Advantage:
-
Low Power Consumption
-
Placement speed:
-
47,000CPH
-
Placement accuracy:
-
±35μm (Cpk 1)
-
Max Board size:
-
650 x 370 mm (single clamping)
-
Power supply:
-
AC200 ~ 415V 3-phases
-
Min Board size:
-
50 x 50 mm
Automatic SMT Terminal Insertion Machine and DIP Components Pick and Place Machinery SMT THT Pick and Place Machine Juki
Product Description
- Class leading speed, up to 47,000 cph
- Newly developed “Takumi Head” with changing recognition sensor height
- Optimum line balance and highest throughput
- Wide component range from 0201 (metric) to large connectors and ICs
- Optimal for LED placement
| Fast Smart Modular Mounter | ||||
|---|---|---|---|---|

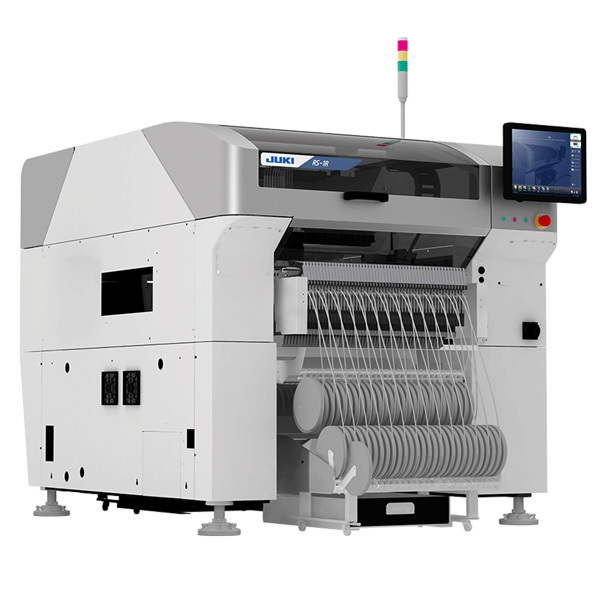

| Model | RS-1R | |||
| Conveyor specification | standard |
150mm conveyor extensions,
upstream and downstream |
250mm conveyor extensions,
upstream and downstream |
|
| Board size | minimum | 50×50mm | ||
| maximum | 1 buffer | 650×370 mm (Single clamping) | ||
| 950×370 mm (double clamping) | 1,100×370 mm (double clamping) | 1,200×370 mm (double clamping) | ||
| 3 buffers | 360×370mm | 500×370mm | 600×370mm | |
| Component height | 25mm | |||
| Component size | 0201*1 ~74mm /150×50mm | |||
| Placement speed | Optimum | 47,000CPH | ||
| IPC9850 | 31,000CPH | |||
| Placement accuracy | ±35μm(Cpk 1) | |||
| Vision recognition | ±30μm | |||
| Feeder inputs | max.112*2 | |||
*1 For metric 0201 compliance please contact us.
*2 Using RF(RF08AS) feeders
Packaging & Shipping
Our Services
1. Local Saled Service Team
2. Training Operators
3. Install & Debug Machines
