Quick Details
-
Application:
-
Construction
-
Rated Lifting Moment:
-
1764kN.M
-
Span:
-
3.2m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight (KG):
-
37000 kg
-
Dimension::
-
2490*2500*1020mm
-
Brake Horse Power::
-
36.5/2600kW/rpm
-
Max pressure of hydraulic system::
-
28Mpa
-
Total displacement::
-
2.434L
-
Certification::
-
CE/ISO9001
Quick Details
-
Rated Loading Capacity:
-
30 Ton
-
Max. Lifting Height:
-
4M
-
Engine Brand:
-
Famous Brand
-
Application:
-
Construction
-
Rated Lifting Moment:
-
1764kN.M
-
Span:
-
3.2m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight (KG):
-
37000 kg
-
Dimension::
-
2490*2500*1020mm
-
Brake Horse Power::
-
36.5/2600kW/rpm
-
Max pressure of hydraulic system::
-
28Mpa
-
Total displacement::
-
2.434L
-
Certification::
-
CE/ISO9001
Product Description

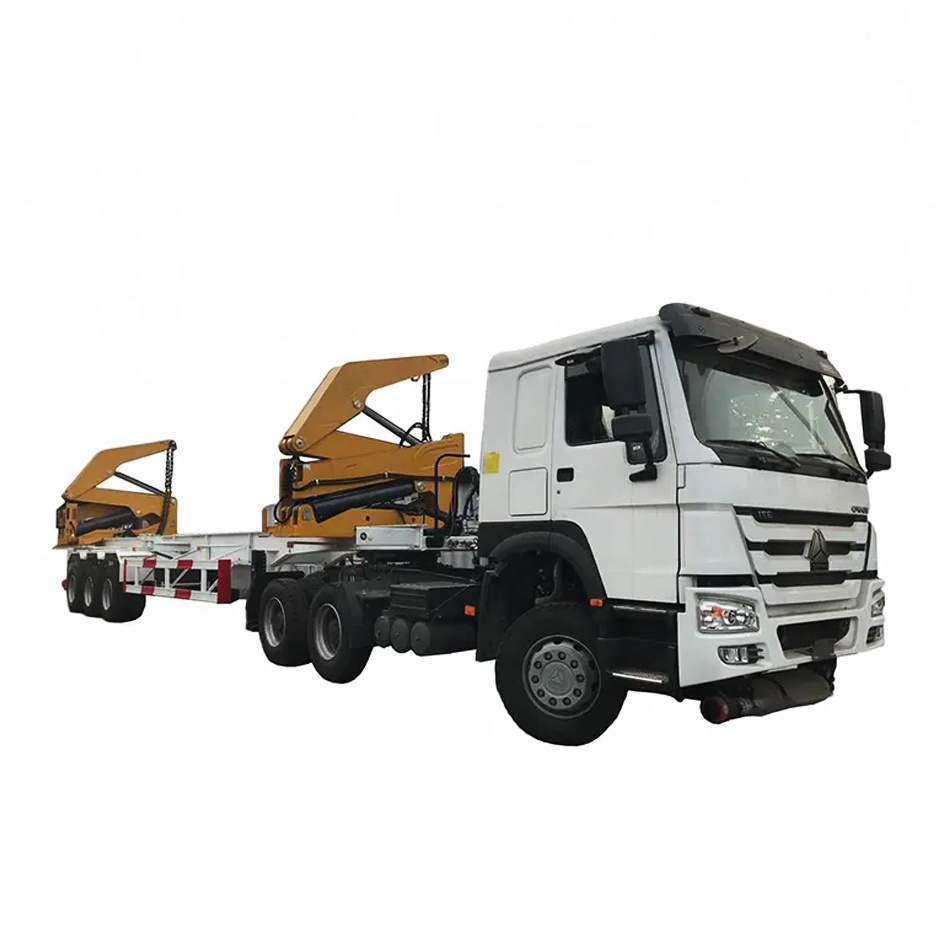

40ft Container Side Lifter MQH37A Side Loader 37 Ton Container Truck Power Take off Diesel APU Lift Crane
.
MQH37A have several advanced core technologies and a number of patents, it can transfer containers to other trailers, trucks, or onto the ground.
Its characters including big lifting capacity, large working range, wide application range, good versatility and strong guarantee ability, meet the demands of lifting container anywhere.
It is widely used for shipping, port, railway, storage and custom etc.Its characteristics of "rapid, vivid, efficiency,
convenience" get more and more understanding and approbations.
Advantages and highlights:
1. Power take off(PTO) or Diesel APU.
2. Side loader can slide to fit 20ft-40ft Containers.
3 .Wireless remote control/Manual operating.
Its characters including big lifting capacity, large working range, wide application range, good versatility and strong guarantee ability, meet the demands of lifting container anywhere.
It is widely used for shipping, port, railway, storage and custom etc.Its characteristics of "rapid, vivid, efficiency,
convenience" get more and more understanding and approbations.
Advantages and highlights:
1. Power take off(PTO) or Diesel APU.
2. Side loader can slide to fit 20ft-40ft Containers.
3 .Wireless remote control/Manual operating.
4.
The front and rear crane can work together and Separate, adjusting container conveniently.
5.
Safety control with stop button.
6 . Convenient opera t ion,Facilitate manufacture and maintenance.
6 . Convenient opera t ion,Facilitate manufacture and maintenance.
7
.
Elegant appearance,Reliable performance.
8
.
Engine throttle size and engine speed can be control, improving working efficiency.
Specification
|
Item
|
|
Units
|
MQH37A
|
|
|
Specification
|
Max lifting capacity
|
kg
|
37000
|
|
|
|
Max stabilizer outreach
|
mm
|
3200
|
|
|
|
Max working range
|
mm
|
4000
|
|
|
|
Overall height
|
mm
|
2490
|
|
|
|
Over width
|
mm
|
1020
|
|
|
|
Over length
|
mm
|
2500
|
|
|
|
Max pressure of hydraulic system
|
Mpa
|
28
|
|
|
|
Tare weight
|
kg
|
7000
|
|
|
Power system specification
|
Motor manufacturer
|
|
Kubota
|
|
|
|
Engine Model
|
|
V2403-M-DI-E3B-CSL-1
|
|
|
|
Total displacement
|
L
|
2.434
|
|
|
|
Brake Horse Power
|
kW/rpm
|
36.5/2600
|
|
|
|
Max Torque/Speed
|
N•m/rpm
|
158.6N•m/1600
|
|
|
|
Min Idling Speed
|
rpm
|
1050~1150
|
|
|
|
Max Idling Speed
|
rpm
|
2820
|
|
|
|
Dry Weight
|
kg
|
185
|
|
|
|
Power Voltage
|
V
|
12
|
|
|
|
Emission Regulation
|
|
EU Stage3
|
|
|
Main technical parameters of semi-trailer
|
Type
|
/
|
Frame
|
|
|
|
Outline dimension
|
mm
|
14100*2480*（≤1510）
|
|
|
|
Maximum gross mass
|
kg
|
52000
|
|
|
|
Curb mass
|
kg
|
7200
|
|
|
|
Payload mass
|
kg
|
44800
|
|
|
|
Quantity of wheel
|
/
|
3
|
|
|
|
Spread of axles
|
mm
|
8000+1350+1350
|
|
|
|
Tare weight
|
kg
|
7000
|
|
|
|
Axle load
|
kg
|
- / 24000
|
|
|
|
Maximum Kingpin Mass
|
kg
|
16000
|
|
|
|
ABS
|
|
YES
|
|
|
|
Front/Rear overhang
|
mm
|
-/2370
|
|
