Quick Details
-
Keyword:
-
slotting
-
Maximum cutting length(mm):
-
320
-
Ram vertical adjustment distance:
-
315
-
Motor power:
-
3kw
-
Table rotary feed range:
-
0.052-0.783
-
Motor speed:
-
1430
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product Name:
-
New Decisigned Automatic Slotter CNC Slotting Machine Price
-
Type:
-
horizontal
-
Keyword:
-
slotting
-
Maximum cutting length(mm):
-
320
-
Ram vertical adjustment distance:
-
315
-
Motor power:
-
3kw
-
Table rotary feed range:
-
0.052-0.783
-
Motor speed:
-
1430

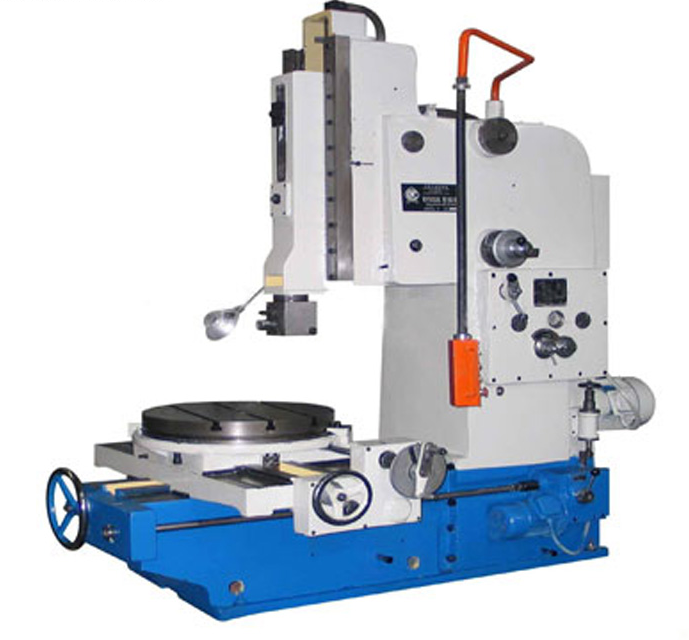

B5032 New Decisigned Automatic Slotter CNC Slotting Machine Price
|
Specification |
Unit |
B5032 |
B5020 |
|
Max. Slotting length |
mm |
320 |
220 |
|
Worktable size |
mm |
630*560 |
200 |
|
Ram motion frequency |
times/min |
20.32.50.80 |
32.50.80.125 |
|
Ram tilt angle |
° |
0-8 |
0-8 |
|
Ram vertical adjustment distance |
mm |
315 |
230 |
|
Cutter head bearing surface to the distance between the forearm bed |
mm |
600 |
485 |
|
Table Diameter |
mm |
630 |
500 |
|
The distance between the lower end of the sliding frame to work table |
mm |
490 |
320 |
|
Max. longitudinal moving distance of working table |
mm |
630 |
500 |
|
Max. transverse moving distance of working table |
mm |
560 |
500 |
|
Table maximum rotation angle |
° |
360 |
360 |
|
Vertical and horizontal table power feed range |
mm |
0.08-1.21 |
0.08-1.21 |
|
Table rotary feed range |
mm |
0.052-0.783 |
0.052-0.783 |
|
Motor power |
kw |
4 |
3 |
|
Motor speed |
r/min |
960 |
1430 |
|
Machine weight |
kg |
3000 |
2200 |
|
Outline dimension |
mm |
2261*1495*2245 |
1916*1305*1995 |
slotting machine for metal B5020 B5032 ,price of B5032 New Decisigned Automatic Slotter CNC Slotting Machine Price
1)The machine is used to process all kinds of parts of the plane, type and keyway, single or small batch production workshop is most suitable.
2) The main turning mechanism is the rotary motion of the variable handle gear, which can be used for longitudinal, give.
3) Beautiful appearance, easy maintenance.
4) The machine uses three-phase AC power supply, voltage 380 volts, frequency 50 Hz.
1. New Decisigned Automatic Slotter CNC Slotting Machine Price Being designed for cutting various plane, Formed surface and key of workpiece, the machine is suitable for single piece or small Batch production.
2. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the tam is achieved by a crank connecting link.
3. An auto- matic mechanism for vertical, horizontal and rotary feeding and rotary motion of the table which is equipped with an indexing gear for rotary motion.
