Quick Details
-
Weight (KG):
-
0.1 KG
-
Product name:
-
Laser Cutting Nozzle
-
Application:
-
Industrial Laser Equipment
-
Function:
-
laser cutting machine parts
-
Diameter:
-
32mm / 28mm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Spare Parts Type:
-
Laser Cutting Equipment Spare Parts
-
Brand Name:
-
Cylion
-
Weight (KG):
-
0.1 KG
-
Product name:
-
Laser Cutting Nozzle
-
Application:
-
Industrial Laser Equipment
-
Function:
-
laser cutting machine parts
-
Diameter:
-
32mm / 28mm
Products Description

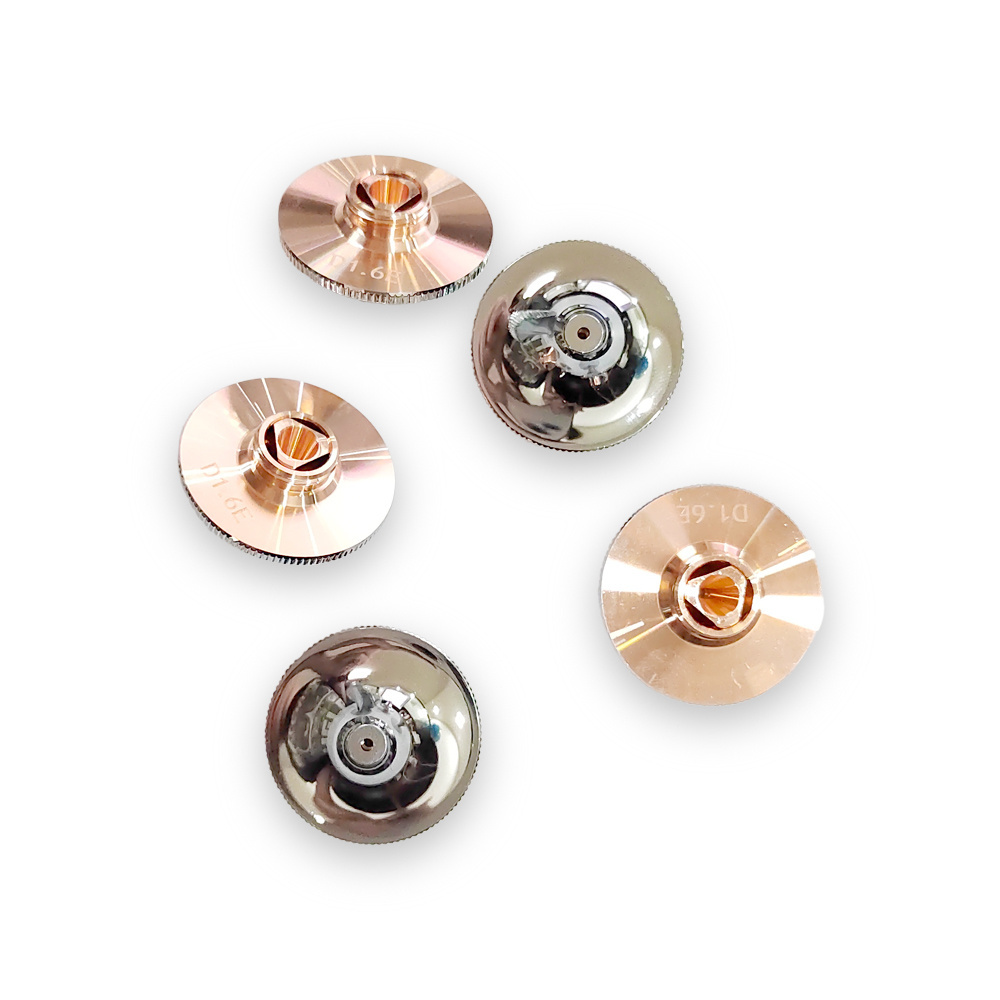

Fiber Laser Nozzles
Our laser nozzles are precision machined to meet or exceed the tight tolerances required for laser cutting. Since nozzles in laser machines are replaced very frequently, we always offer the best prices on these consumables. We never compromise on quality, we offer only the best replacement laser nozzles.
We supply copper and hard chrome plated laser nozzles to all laser cutting machine manufacturers. If you need any parts, please contact us.
Single laser nozzle
The single-laser nozzle use nitrogen and airas auxiliary gases to cut stainless steel plate.aluminum plate, etc.
Double laser nozzle
The double-laser nozzle use oxygen asan auxiliary gas to cut the iron plate.
|
Type
|
Outside diameter
|
Height
|
Single/Double
|
Chrome
|
Thread
|
Caliber
|
|||||
|
Regular
|
28
|
11
|
Single
|
No
|
M11
|
0.8-6.0
|
|||||
|
|
28
|
11
|
Double
|
Yes
|
M11
|
0.8-6.0
|
|||||
|
|
28
|
15
|
Single
|
No
|
M11
|
0.8-6.0
|
|||||
|
|
28
|
15
|
Double
|
Yes
|
M11
|
0.8-6.0
|
|||||
|
|
32
|
15
|
Single
|
No
|
M14
|
0.8-6.0
|
|||||
|
|
32
|
15
|
Double
|
Yes
|
M14
|
0.8-6.0
|
|||||
|
Regular High Speed
|
28
|
15
|
Single
|
No
|
M11
|
0.8-6.0
|
|||||
|
|
28
|
15
|
Double
|
Yes
|
M11
|
0.8-6.0
|
|||||
|
|
32
|
15
|
Single
|
No
|
M14
|
0.8-6.0
|
|||||
|
|
32
|
15
|
Double
|
Yes
|
M14
|
0.8-6.0
|
|||||
|
Straw Hat
|
28
|
11
|
Single
|
No
|
M11
|
0.8-4.0
|
|||||
|
|
28
|
15
|
Single
|
No
|
M11
|
0.8-4.0
|
|||||
|
|
32
|
15
|
Single
|
No
|
M14
|
0.8-4.0
|
|||||
|
|
32
|
15
|
Double
|
Yes
|
M14
|
0.8-4.0
|
|||||
|
Bullet Type
|
10.5
|
22
|
Single
|
No
|
/
|
0.8-5.0
|
|||||
|
|
10.5
|
22
|
Single
|
Yes
|
/
|
0.8-5.0
|
|||||
|
|
10.5
|
22
|
Double
|
No
|
/
|
0.8-5.0
|
|||||
|
|
10.5
|
22
|
Double
|
Yes
|
/
|
0.8-5.0
|
|||||
|
More serious
|
We also offer WSX, Han's, Precitec, Raytools...
|
|
|
|
|
|
|||||
|
|
And for more types of nozzles, please contact our sales.
|
|
|
|
|
|
|||||
Wuxi Cylion CNC Equipment Co., LTD established in LuoShe Town, Wuxi, Jiangsu province in 1998.
Wuxi Cylion is solely responsible for the export , manages the operation of overseas business markets, and provides a professional technical service team and sales team.
Over two decades development, it has involved in the field of CNC lathe, CNC machining service, Plasma& Oxyfuel cutting machine, Laser cutting & welding machine, Automation production solution.
Our machines all passed the European CE authentication and are certified to ISO 9001.Products are sold to USA, Canada, Australia, Europe, South east Asia,Africa etc,more than 120countries and areas, and supply OEM service for more than 30 manufactures.
We empower tens of thousands of customers around the world to grow their business with our cutting-edge laser technology, reliable service, and life-long support.
Live by promise, and win by quality. We strive to build value with our customers and produce even more efficient, precise, and trustworthy laser products to our global customers.
FAQ
1Q:What is your advantage?
A:We are a professional and reliable factory, selling and repairing all models of laser machines with any brand. Purchasing and OEM for consumable parts is welcomed. We can also retrofit machines for your demands.
2Q: What's your MOQ?
A:Stock items are available to order from 1-10 pieces. All new customers can have a 10%-50% discount regardless of the quantity purchased.
3Q:About trade terms? delivery time?
A: Normally T/T for bulk order; Price is EXW ShangHai, China;Goods mostly in stock, delivery time is normally 1~3 working days, which depends on models and quantity.
4Q:How about the shipping?
A: We do provide international Express door-to-door, Airline and Ocean transporation; your can choose the shipping way you prefer,and different shipping way have different shipping cost.
5Q:What's the payment terms you accept?
A: We accept many payment terms: T/T(30% deposit, 70% before shippment), Trade Assurance, 100% T/T in advance; for small batch orders, Western Union, Paypal are all accepted by us. If for OEM, it will be 50% deposit, 50% before shippment.
