Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes. 30pcs/carton size: 40.6x35.4x16.8cm
- Product Details
- {{item.text}}
Quick Details
-
Memory Type:
-
DDR4, DDR5
-
Graphics Card Type:
-
Integrated
-
CPU Type:
-
RK3588
-
Chipset:
-
A76
-
Brand Name:
-
IWEIPOO
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
RK3588 Android motherboard
-
CPU:
-
Octa core 64bit (4*Cortex-A76+4*Cortex-A55) 8nm advanced
-
GPU:
-
Mali-G610
-
Network:
-
Ethernet/wifi/lan/BT
-
Display Interface:
-
6*HD-MI out/IN/VGA/mipi
-
OS:
-
Android 12.0, Linux,Ubuntu Desktop,Ubuntu Server,Debian
-
RAM:
-
8GB (4GB-32GB optional)
-
ROM:
-
64GB(16GB-128GB optional)
-
Serial ports:
-
RS232/RS485/GPIO
-
power supply:
-
DC 12V or POE
Quick Details
-
Maximum Ram Capacity:
-
32GB
-
Application:
-
Server/Workstation
-
Form Factor:
-
Arm
-
Memory Type:
-
DDR4, DDR5
-
Graphics Card Type:
-
Integrated
-
CPU Type:
-
RK3588
-
Chipset:
-
A76
-
Brand Name:
-
IWEIPOO
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
RK3588 Android motherboard
-
CPU:
-
Octa core 64bit (4*Cortex-A76+4*Cortex-A55) 8nm advanced
-
GPU:
-
Mali-G610
-
Network:
-
Ethernet/wifi/lan/BT
-
Display Interface:
-
6*HD-MI out/IN/VGA/mipi
-
OS:
-
Android 12.0, Linux,Ubuntu Desktop,Ubuntu Server,Debian
-
RAM:
-
8GB (4GB-32GB optional)
-
ROM:
-
64GB(16GB-128GB optional)
-
Serial ports:
-
RS232/RS485/GPIO
-
power supply:
-
DC 12V or POE
|
New Generation V7-RK3588 Computer Board 6*HD-MI OUT PCBA Support Ubuntu Debian Android 12 for Russian European Japanese Market
Quad-core CPU processor composed of 4-core ARM Cortex-A76 and quad-core CortexA55,high-performance, low-power and cached application processor fully implements ARM architecture v8-A instruction set, ARM Neon Advanced SIMD (single instruction, Multi-data) Support for accelerated media and signal processing ARMv8 Cryptography Extended Trust Zone technology supports each Cortex-A76 integrated 64KB L1 instruction cache, 64KB L1 data cache and 512KB L2 cache. Each Cort CONTENTex-A55 integrates 32KB L1 instruction cache, 32KB L1 data cache and 128KB L2 cache, and large and small clusters share 3mb L3 cache.
Eight independent power domains of the CPU core system support internal power switches
and externally turn on/off according to different application scenarios.
1. A new generation chip RK3588
Quad-core 64-bit CPU, 8nmLP programming,
main frequency up to 2.4GHz Integrated ARM MALI-G610 MP4 quad-core GPU Built-in AI accelerator NPU, can provide 6Tops HashRate
2. 8K video decoding, clearer images
8K@60fps H.265/VP9 video decoding
8K@30H.265/H.264 video encoding, support the same encoding and solution up to 32 channels of 1080P30 decoding and 16 channels of 1080P30 decoding
3. Large Memory
Up to 64GB large memory Support 64bit LPDDR4/LPD-
DR4x/LPDDR5 Easily handle multiple applications running at the same time.
4. Connect multiple different screens
HDMI2.1/eDP1.3/MIPI-DS/DP1.4/BT.1120 video output
HDMI-IN/Dual MIPI-CS/DVP video input Multi-channel 8K video output and 4K input, supports up to seven different displays
5. Large internal capacity
At the same time support expansion of multiple PCle3.0/
SATA3.0;SSD/HDD mass storage devices, Allows devices to easily expand to terabyte-level ultra-large capacity
6. Network communications
Integrated PCle3.0/GMAC/SDIO3.0/USB3.0,
Scalable multi-channel Gigabit Ethernet, WiFi6/Bluetooth, 5G/4GLET make network communication have a higher rate.
7. Rich expansion interfaces
With PCIE3.0 / SATA3.0 / I2S / 12C / CAN / UART SPDIF /
SDIO3.0 / MIPI-CSI / MIPI DSI / USB3.0 USB2.0 / SPI GPIO and other expansion interfaces
8.Supports multiple operating systems
Android12.0 / Kylin Linux
|
|
|
|
|
||||
Specification
|
Model V7
|
|
|
|
CPU
|
Rockchip3588 Octa core 64bits (4×Cortex-A76+4×Cortex-A55)
|
|
|
GPU
|
Mali-G610 quad core GPU, support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
|
|
|
NPU
|
Up to 6 Tops, support INT4/INT8/INT16 hybrid operation
|
|
|
OS
|
Android 12/Linux
|
|
|
RAM
|
8GB (4GB/16GB/32GB optional)
|
|
|
ROM
|
64GB(16GB/32GB/128Gb optional)
|
|
|
ISP
|
Integrate 48MP ISP with HDR&3DNR
|
|
|
Video Decode
|
8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Up to 32 channels 1080P@30fps decoding
|
|
|
Display
|
HD-MI-OUT*6, HD-MI-IN*1, LVDS*1, OPS*1
|
|
|
Audio
|
1*(20W)
|
|
|
SSD
|
M.2 PCIE*1
|
|
|
USB
|
USB2.0*2, USB3.0*2, Type C*1(OTG)
|
|
|
UART
|
RTC/FAN/RS485/RS232/USB2.0/Optical fiber/OUT
|
|
|
Power Supply
|
12V 3A
|
|
|
Functional
Rockchip Rk3588 PCBA board Android 12 DDR4 1000mbps 8K30 H.265 H.264 Smart Tv Box Wifi6 Custom Industry Core Board
|
|
|
Details Images
Front

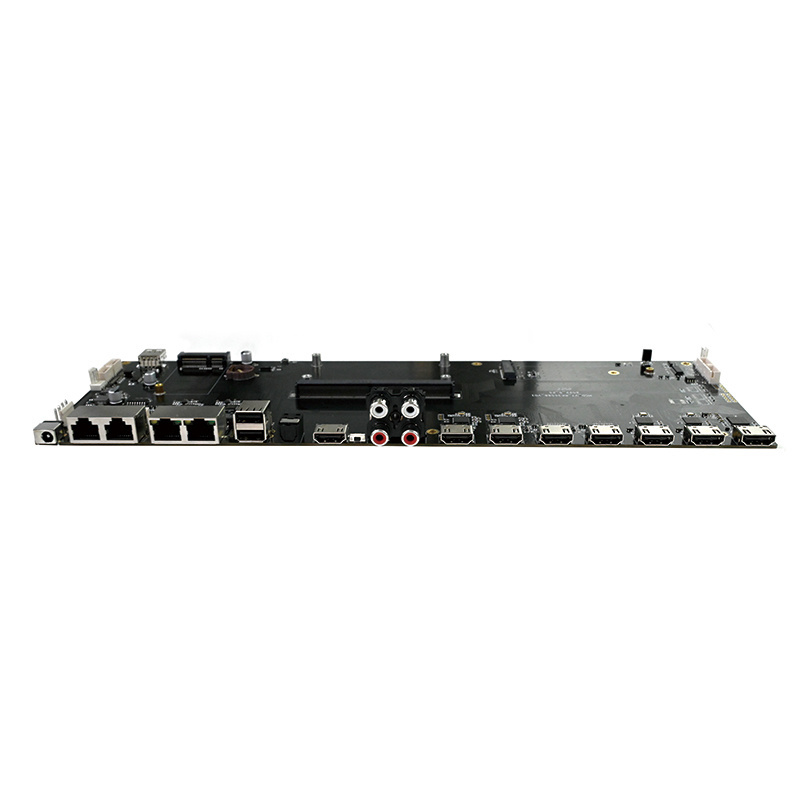

Side
Back
|
Application
:
Interactive ordering machine in restaurant,Intelligent transportation,Digital signage, Education IWB(Interactive Whiteboard),Conference electronic whiteboard,Industrial PC, Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields. |
|
|
|
|
||||
|
Packing and Deliver
|
|
|
|
|
||||
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes. 30pcs/carton size: 40.6x35.4x16.8cm
3 working days after received full payment(In stock).
Express:DHL,Fedex,UPS,TNT,etc.
|
