Quick Details
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Travel (X Axis)(mm):
-
800 mm
-
Travel (Z Axis)(mm):
-
500 mm
-
Place of Origin:
-
Henan, China
-
Weight (KG):
-
1800
-
Product Name:
-
CNC Lathe Machine
-
Machine Type:
-
Horizontal Metal Turning Lathe Machine
-
Function:
-
Machining Metal
-
Automatic Grade:
-
Automatic Lathe
-
Precision:
-
National Standard
-
Max. Swing Diameter:
-
400/500/660mm
-
Distance between centers:
-
1000mm/1500mm/2000mm/3000mm
-
Range of metric thread:
-
0.4 - 7mm (26 Kinds)
-
Tailstock taper:
-
MT4/5
-
Keyword:
-
Lathe
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
800
-
Max. Spindle Speed (r.p.m):
-
8000 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Travel (X Axis)(mm):
-
800 mm
-
Travel (Z Axis)(mm):
-
500 mm
-
Place of Origin:
-
Henan, China
-
Weight (KG):
-
1800
-
Product Name:
-
CNC Lathe Machine
-
Machine Type:
-
Horizontal Metal Turning Lathe Machine
-
Function:
-
Machining Metal
-
Automatic Grade:
-
Automatic Lathe
-
Precision:
-
National Standard
-
Max. Swing Diameter:
-
400/500/660mm
-
Distance between centers:
-
1000mm/1500mm/2000mm/3000mm
-
Range of metric thread:
-
0.4 - 7mm (26 Kinds)
-
Tailstock taper:
-
MT4/5
-
Keyword:
-
Lathe
Products Description

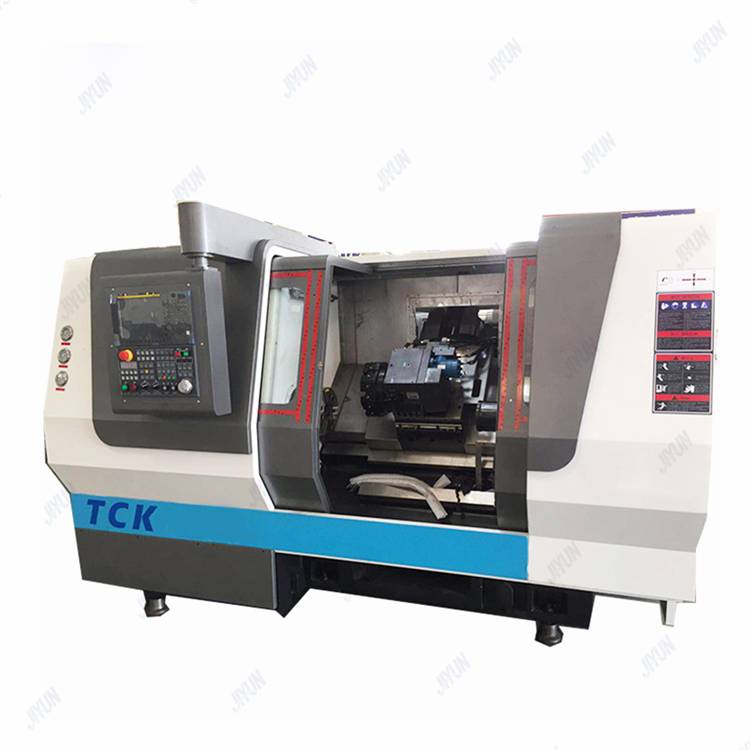

Inclined bed CNC lathe is a high-precision, high-efficiency automatic machine tool. Equipped with a multi-station turret or a driven turret, the machine tool has a wide range of process performance, can process linear cylinders, oblique cylinders, arcs and a variety of threads, grooves, worms and other complex workpieces, with linear interpolation, arc interpolation various compensation functions, and in the mass production of complex parts play a good economic effect.
Product Parameter
|
Item
|
TCK46A
|
TCK50A
|
TCK56A
|
TCK66A
|
|
Swing over bed mm
|
460
|
500
|
560
|
660
|
|
Max work length mm
|
350
|
500
|
500
|
600
|
|
spindle bore mm
|
45
|
50
|
55
|
70
|
|
Chuck size mm
|
400
|
400
|
520
|
520
|
|
Tool post
|
Hydraulic turret 8
|
Hydraulic turret 8
|
Hydraulic turret 8
|
Hydraulic turret 8
|
|
Tools size mm
|
25*25
|
25*25
|
25*25
|
25*25
|
|
Tailstock taper
|
MT5
|
MT5
|
MT5
|
MT5
|
|
Main power kw
|
5.5
|
7.5
|
11
|
13
|
