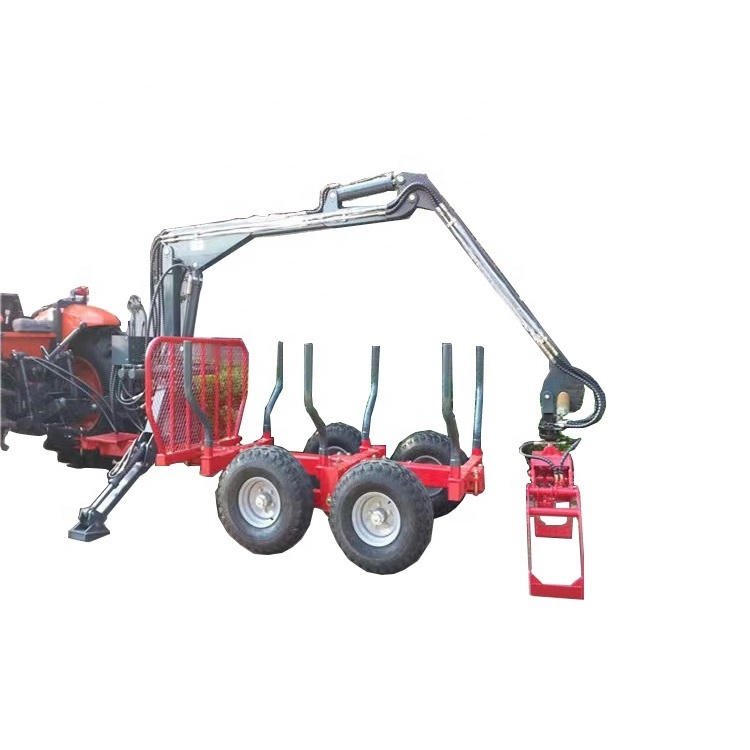

Log Trailer with Crane
|
1T
|
1T
|
3T
|
5T
|
8T
|
10T
|
12T
|
||
|
Model
|
FL1002J
|
FL1002
|
FL3004
|
FL5004
|
FL8006
|
FL10006
|
FL12006
|
||
|
Matching Power
|
ATV,UTV
|
10-20 hp
|
20-50 hp
|
30-60 hp
|
50-80 hp
|
70-100 hp
|
80-140 hp
|
||
|
Machine Weight (kg)
|
760
|
1010
|
1790
|
2040
|
2750
|
3000
|
3200
|
||
|
Referenced Packing Dimensions/unit(mm)
|
2250×1100×1100
|
3750×1200×900
|
4400×1500×1000
|
4500×1500×1050
|
5150×1850×1050
|
5900×1850×1050
|
5900×1950×1050
|
||
|
Trailer Model
|
TR10DJ
|
TR10
|
TR30
|
TR50
|
TR80
|
TR100
|
TR120
|
||
|
N/W of Trailer(Kg)
|
370
|
420
|
690
|
940
|
1450
|
1700
|
1900
|
||
|
Rated Loading Capacity
|
1T
|
1T
|
3T
|
5T
|
8T
|
10T
|
12T
|
||
|
Loading Area
|
0.825 m2
|
0.85m2
|
1m2
|
1.6m2
|
2.2m2
|
2.5m2
|
2.8m2
|
||
|
Total Length of Trailer
|
3830-4430 mm
|
3.6m
|
5.1m
|
5.1m
|
5.9m
|
6.3m
|
6.3m
|
||
|
Trailer Loading Length
|
2550-2850 mm
|
2.0m
|
3.1 m
|
3.1 m
|
3.7 m
|
4.3 m
|
4.3 m
|
||
|
Total Width of Trailer
|
1344 mm
|
1.4
|
1.6 m
|
1.8 m
|
2.2 m
|
2.3 m
|
2.5 m
|
||
|
Dimensions of Trailer Frame
|
100*100 mm
|
80x80x6 mm
|
140x140x6 mm
|
140x140x6 mm
|
160x160x6 mm
|
|
|
||
|
Assistant Hydraulic Steering
|
NO
|
NO
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
||
|
Dia.of Traction Hole
|
33 mm
|
33 mm
|
38 mm
|
38 mm
|
38 mm
|
38 mm
|
38 mm
|
||
|
Tire Model
|
22*11-10
|
10.0/80-12
|
10.0/80-12
|
400/60-15.5
|
400/60-15.5
|
400/60-15.5
|
400/60-15.5
|
||
|
No. of Tires
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
||
