Quick Details
-
Brand Name:
-
BaoFeng
-
Model Number:
-
BAOFENG UV-6R
-
Product Name:
-
Baofeng Two Way Radio UV6R
-
Battery capacity:
-
1800mAh
-
Radio Type:
-
Analog Radio
-
Function:
-
LED Display
-
Feature:
-
Group Calls
-
Handheld radio:
-
Long Range Transceiver Radio
-
Product:
-
handy talky dual band
-
Walkie talkie:
-
Radio Walkie Talkie Ham Radio
-
Output Power:
-
8 Watt
-
Ham radio:
-
Portable Ham Radio Transeiver
Quick Details
-
Terminal style:
-
Handheld
-
Walkie Talkie Type:
-
Portable Ham Radio Transeiver
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BaoFeng
-
Model Number:
-
BAOFENG UV-6R
-
Product Name:
-
Baofeng Two Way Radio UV6R
-
Battery capacity:
-
1800mAh
-
Radio Type:
-
Analog Radio
-
Function:
-
LED Display
-
Feature:
-
Group Calls
-
Handheld radio:
-
Long Range Transceiver Radio
-
Product:
-
handy talky dual band
-
Walkie talkie:
-
Radio Walkie Talkie Ham Radio
-
Output Power:
-
8 Watt
-
Ham radio:
-
Portable Ham Radio Transeiver

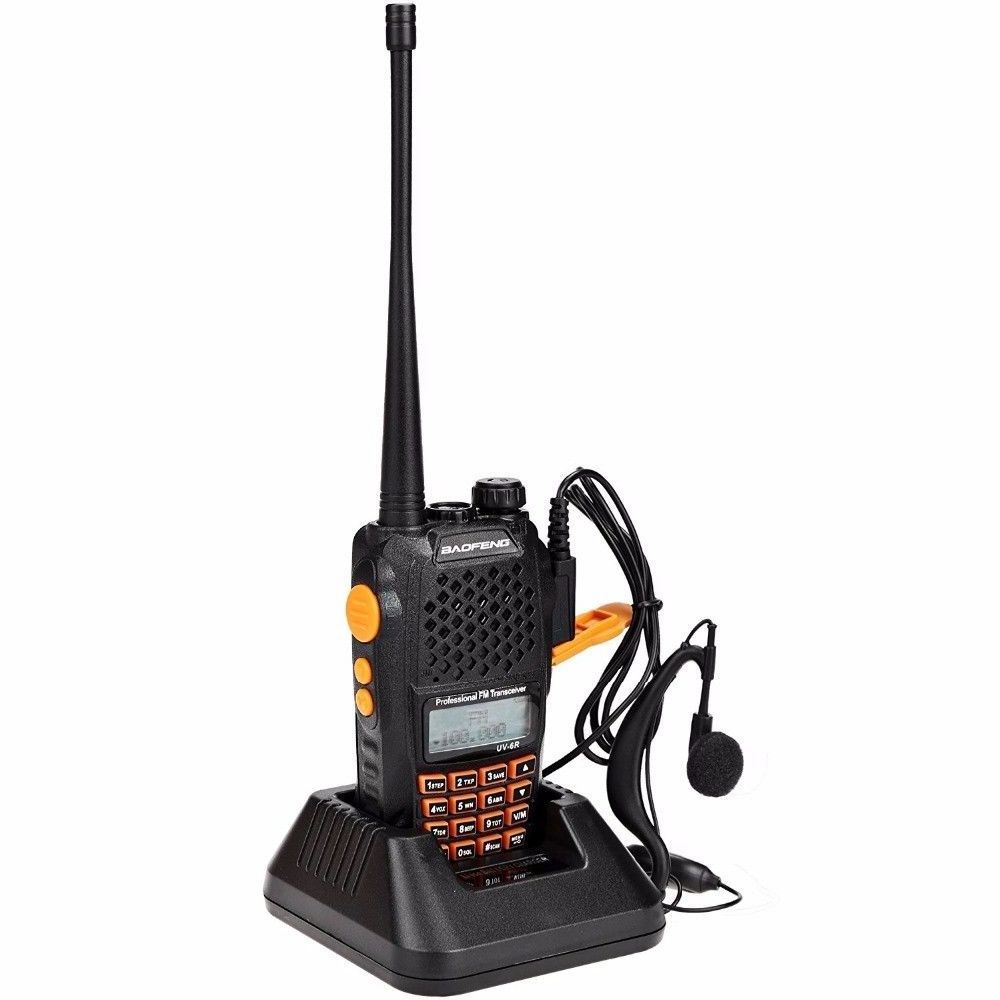

7W Baofeng UV-6R Cheap Ham Radio Transceiver Handy Talky Dual Band Baofeng Two Way Radio UV6R
BAOFENG UV-6R is a dual band radio. This easy-to-use radio will deliver you secure, instant and reliable communication at peak effciency. Features: Dual-band handheld transceiver with LCD display function.
The Baofeng UV-6R offers a better grip, thanks to its size slightly larger than a UV-5R and a little smaller than the UV-82.
Advantages of UV-6R
Appearance:
To compare with the UV-5R, the UV-6R optimized the key design of the main panel, simplified the internal circuit, while also reduced the number of keys to avoid the wrong operation.
The UV-6R only has 16 Keyboard Buttons which has removed the Band key, independent of A/B key and EXIT key; the relevant function keys have been integrated and reorganized, which make the UV-6R more User-friendly and humanized design.
The keys of UV-6R are made of the material PTT Soft rubber instead of ABS material (UV-5R) which made the user more comfortable when pressing the keys.
Speaker:
The UV-6R is with a 16 ohm high-impedance speaker. The sound is more sonorous by comparing with the other 8 ohm speaker which will help with the voice launch and transmission.
Flashlight:
The UV-6R has the straw LED lamp which is relatively higher lumens than ordinary LED in UV-5R. The high brightness straw LED lights provide a brighter and further range for alarming or illuminating than the UV-5R.
Antenna:
The UV-6R has a 15cm antenna which is 3cm longer than the UV-5R's 12cm antenna. Increasing the length enables the UV-6R to perform better in sending and receiving radio wave and signals than UV-5R. In addition, the antenna material of UV-6R is multiple solid steel wire winding copper plating which is of higher efficiency compared to the UV-5R hollow wire in transmission and reception.
Battery:
The UV-6R is continuing using the BL-5 batteries, except that the UV-5R need to push and removal the battery from the top of radio and the UV-6R has a new design clip-on removal in the bottom of the radio. The new design is more convenient for the users and preventing the battery fall out by inadvertently operate. Also, there is non-slip design for the back of the battery shell which making it more convenient to use.
Quick Overview
* Three Background Colors to Choose -Purple, Blue and Orange
* More Humanized Design on the Keyboard Button
Item model | UV-6R |
General | |
Frequency Range | 65-108MHz(FM Receive only) |
136-174MHZ and 400-480HZ (TX/RX) | |
Channel No. | 128 |
Frequency Stability | ±5ppm |
Antenna | High gain DualBand antenna |
Antenna Impedance | 50ω |
Operating Voltage | DC 7.4V |
Mode of operation | Simple or semi-duplex |
Dimension(W x H x D) | 94 x 55 x 30 mm (no antenna) |
Weight | 220g |
Transmitter | |
Output power | 5W / 1W (Max 7W) |
Modulation Mode | 16kφF3E / 11kφF3E |
Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
Spurious Radiation | <7μW |
Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
Pre-emphasis characteristics | 6dB |
Current | ≤1.6A(5W) |
CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
Intermediation sensitivity | 8-12mv |
Intermediation distortion | <10% |
Package Content:
1 x Baofeng UV-6R (VHF136-174MHz / UHF 400-520MHz) Ham Radio
1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-520Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )
