Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Glass cloth
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Brand Name:
-
YouSan
-
Model Number:
-
PH0828
-
Color:
-
Clear
-
Liner color:
-
Yellow Paper
-
Thickness:
-
0.28mm
-
Temperature resistance:
-
800℃
Quick Details
-
Adhesive:
-
Silicone
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
Glass cloth
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Brand Name:
-
YouSan
-
Model Number:
-
PH0828
-
Color:
-
Clear
-
Liner color:
-
Yellow Paper
-
Thickness:
-
0.28mm
-
Temperature resistance:
-
800℃

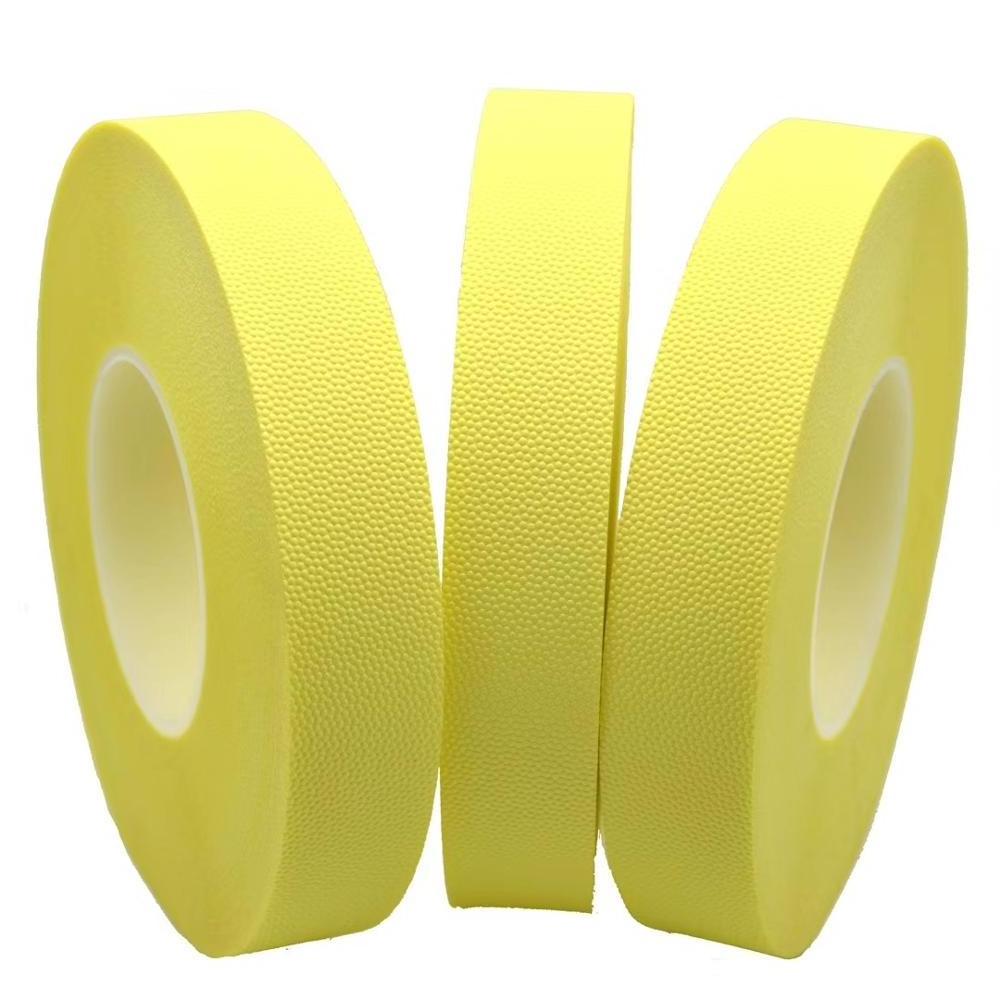

PH0828 Glass cloth tape is made of roommate silicone rubber bonded with glass fiber cloth, and the bottom layer is coated with silica gel with high performance and high temperature resistance.
Application :Shielding protection for sand blasting and plasma process
Data sheet :
| Shenzhen You-San Technology Co.,Limited | ||||
| Phone:0086-0755-29091712 Email :sales05 @ yousantape.com Contact :Bella Fu | ||||
| PH0828 Double-sides Glass cloth adhesive tape Physical Form | ||||
| The product is made of roommate silicone rubber bonded with glass fiber cloth, and the bottom layer is coated with silica gel with high performance and high temperature resistance. | ||||
| The material | Common physical characteristics | |||
| Adhesive type | Silicone |
Adhesive Plate ASTM D-3330 |
12.6N /25mm | |
| Backing | Glass cloth | |||
| Thickness | 280um |
Tensile strength ASTM D-3759 |
398N /25mm | |
| Color | White | |||
| Liner Color | Yellow |
Elongation ASTM D-3759 |
15% | |
| Temperature resistance | 800℃ | Insulation strength | 7-8.5 KV | |
| Width | 5-980mm | length | 33m | |
