Quick Details
-
Motor Power:
-
22kw
-
Charging Capacity:
-
0.30-1.0 cubic meter
-
Reclaiming capacity:
-
0.30 -1.0 cubic meter
-
Speed of Mixing Drum:
-
14r/min, 14r/min
-
Water Supply Mode:
-
Automatic water pump
-
Working Cycle Period:
-
1min
-
Discharge Way:
-
Reverse Discharge
-
Outline Dimension:
-
310*210*230cm
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
1500 kg
-
Product name:
-
Concrete Drum Mixer
-
Application:
-
Building Constrction
-
Color:
-
Customer's Requirement
-
Power type:
-
Diesel Electric Gasoline
-
Packing:
-
Wooden Box
-
Maximum particle size:
-
60-80mm
-
Drum speed:
-
14r/min
-
Pump Motor power:
-
0.55kw
-
Material:
-
Plastic /Semi-hard Concrete
-
Control Method:
-
Electric Control Box
Quick Details
-
Mixing Power:
-
5.5kw
-
Productivity:
-
10-14m3 /h
-
Place of Origin:
-
Henan, China
-
Motor Power:
-
22kw
-
Charging Capacity:
-
0.30-1.0 cubic meter
-
Reclaiming capacity:
-
0.30 -1.0 cubic meter
-
Speed of Mixing Drum:
-
14r/min, 14r/min
-
Water Supply Mode:
-
Automatic water pump
-
Working Cycle Period:
-
1min
-
Discharge Way:
-
Reverse Discharge
-
Outline Dimension:
-
310*210*230cm
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
1500 kg
-
Product name:
-
Concrete Drum Mixer
-
Application:
-
Building Constrction
-
Color:
-
Customer's Requirement
-
Power type:
-
Diesel Electric Gasoline
-
Packing:
-
Wooden Box
-
Maximum particle size:
-
60-80mm
-
Drum speed:
-
14r/min
-
Pump Motor power:
-
0.55kw
-
Material:
-
Plastic /Semi-hard Concrete
-
Control Method:
-
Electric Control Box
Products Description

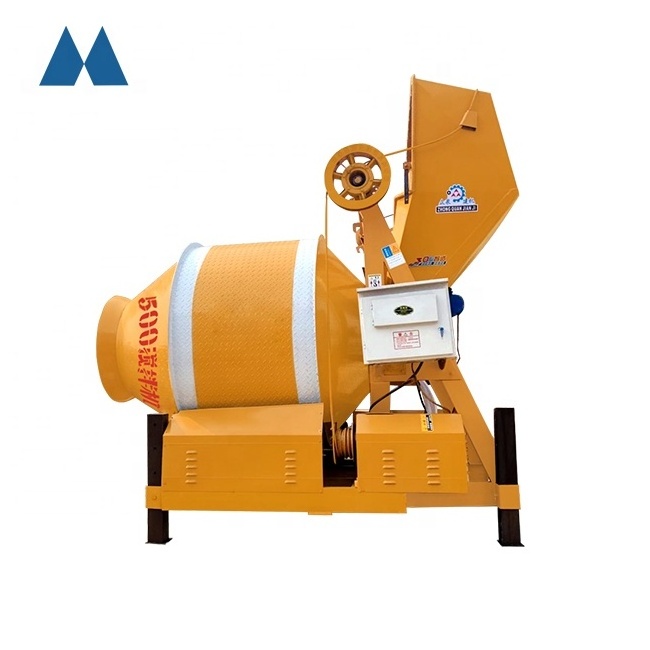

Self Loading Concrete Mixer
JZC series portable concrete mixers have 3 types, electric motor driven, gasoline engine driven and diesel engine driven. Most of
the JZC series mortar mixers adopt electric motors. Depends on the different clients' areas, it has different models. Main
difference lies in the local electric voltage and frequency. Concrete Drum Mixer
the JZC series mortar mixers adopt electric motors. Depends on the different clients' areas, it has different models. Main
difference lies in the local electric voltage and frequency. Concrete Drum Mixer
Structure
Various Models
|
Model
|
JZC-350
|
JZC-450
|
JZC-500
|
JZC-750
|
|
Feed capacity
|
560L
|
720L
|
800L
|
1200L
|
|
Discharge capacity
|
350L
|
450L
|
500L
|
750L
|
|
Productivity
|
10-14m3/h
|
14-18m3/h
|
18-20m3/h
|
20-25m3/h
|
|
Agitator power
|
5.5kw
|
5.5kw
|
7.5kw
|
11kw
|
|
Uplifted motor power
|
4.5kw
|
4.5kw
|
4.5kw
|
5.5kw
|
|
Pump Motor power
|
0.55kw
|
0.55kw
|
0.55kw
|
0.75lw
|
|
Drum speed
|
14r/min
|
14r/min
|
14r/min
|
14r/min
|
|
Maximum particle size
|
40-60mm
|
40-60mm
|
60-80mm
|
60-80mm
|
|
Dimension
|
276*214*278cm
|
294*224*288cm
|
332*264*365cm
|
526*2209546cm
|
|
Weight
|
1250kg
|
1450kg
|
1500kg
|
1900kg
|
Product Details
Electrical Control Box
Electric control box is easy to control, control the operating status of the machine, and improve work efficiency and safety
Pulley
Thickened pulley, abrasion -resistant smooth and not stuck
Machine Power
The machine can be equipped with diesel and electric power, with high working efficiency and stable operation.
Thickened steel plate, after carburizing and hardening, strong and wear-resistant.
