Quick Details
-
Product Name:
-

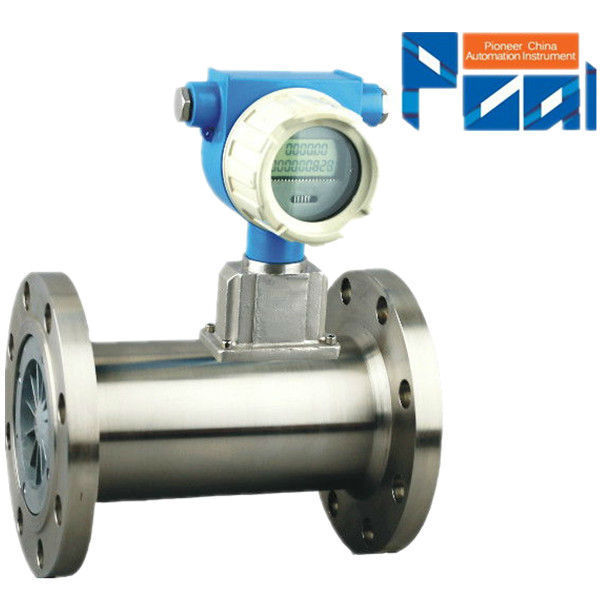

Gas turbine flow meter/compressed air flow meters
-
Accuracy class:
-
1.0 or 1.5 Operation Condition
-
Ambient temperature:
-
-30°C~+60°C
-
Atmospheric pressure:
-
86KPa~106KPa
-
Medium temperature:
-
-30°C~+80°C
-
Relative Humidity:
-
5%~95%
-
Pipe Diameter:
-
DN20-300mm
-
Flow range:
-
Qmax/Qmin≥20:1
-
Starting flow:
-
0.5 m3/h
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
PCAI
-
Model Number:
-
LWQ Series
-
Product Name:
-
Gas turbine flow meter/compressed air flow meters
-
Accuracy class:
-
1.0 or 1.5 Operation Condition
-
Ambient temperature:
-
-30°C~+60°C
-
Atmospheric pressure:
-
86KPa~106KPa
-
Medium temperature:
-
-30°C~+80°C
-
Relative Humidity:
-
5%~95%
-
Pipe Diameter:
-
DN20-300mm
-
Flow range:
-
Qmax/Qmin≥20:1
-
Starting flow:
-
0.5 m3/h
LWQ gas turbine flow meter / compressed air flow meters
accuracy class 1.0 or 1.5 Operation Condition
Ÿ ambient temperature : -30 °C ~ +60 °C
Ÿ atmospheric pressure : 86KPa ~ 106KPa
Ÿ medium temperature : -30 °C ~ +80 °C
Ÿ Relative Humidity : 5% ~ 95%
Electrical Specifications (see List 2)
|
Model |
Display & output |
power supply |
|
LWQN |
Voltage Pulse, low level≤ 1V, high level ≥ 5V, 3-wire |
DC12V-24V |
|
LWQ-A |
Current output: 4 ~ 20mADC ,2-wire |
DC24V |
|
LWQ-B |
Multi-point non-linear correction, two rows LCD indication of instantaneous flow and accumulative flow, such as: Q XXXX 4 bit instantaneous flow value ( m 3 /h ) XXXXXXXX 8 bit accumulative flow value ( m 3 ) PS: The accumulative flow value that can be cleared counts from 00.00000 to the maximum of 999999.99 automatically. The instrument coefficient and accumulative flow value can be saved for ten years without power |
3.2V10AH lithium battery |
|
LWQ-C |
LWQ-B (Field display type) with the addition of 4 - 20mADC current output |
DC24V |
|
LWQ-D |
LWQ-B (Field display type) with the addition of temperature and pressure sensor Automatic compensation for different operation condition; Temperature, pressure, and battery power etc. being inquired t hrough the switch of magnet High frequency and low frequency voltage pulse signal output and 4-20mADC 2-wire current signal output. |
3.2V10AH lithium battery |
. Dimension
The figure of flow meter is shown in Fig. 1 and the specific size, in List 3
Note: Figure 1 is the outline of temperature and pressure compensation type meter.
All types of flow meter with the same diameter have identical dimension of sensors part as well as the total height of meter.
List 3
|
Model |
Diameter mm |
L |
B |
H |
K |
n |
d |
Bolt Specification |
Pressure Tolerance MPaMPa |
|
LWQ-25 |
25 |
170 |
115 |
236 |
85 |
4 |
φ14 |
M12×50 |
4.0 |
|
LWQ-40 |
40 |
200 |
150 |
266 |
110 |
4 |
φ18 |
M16×55 |
|
|
LWQ-50 |
50 |
220 |
165 |
285 |
125 |
4 |
φ18 |
M16×60 |
|
|
LWQ-65 |
65 |
235 |
185 |
300 |
145 |
4 |
φ18 |
M16×65 |
1.6 |
|
LWQ-80 |
80 |
280 |
200 |
319 |
160 |
8 |
φ18 |
M16×70 |
|
|
LWQ-100 |
100 |
330 |
220 |
337 |
180 |
8 |
φ18 |
M16×80 |
|
|
LWQ-150 |
150 |
450 |
285 |
395 |
240 |
8 |
φ22 |
M20×80 |
|
|
LWQ-200 |
200 |
550 |
340 |
448 |
295 |
12 |
φ22 |
M20×90 |
|
|
LWQ-250 |
250 |
700 |
403 |
495 |
355 |
12 |
φ26 |
M24×90 |
|
|
LWQ-300 |
300 |
800 |
460 |
548 |
410 |
12 |
φ26 |
M24×100 |
