Quick Details
-
Air Consumption:
-
12m3/min
-
Place of Origin:
-
China
-
Voltage:
-
380v
-
Power:
-
7.5kw, 7.5 KW
-
Dimension(L*W*H):
-
1660*800*1100mm
-
Weight:
-
800 kg, 800 Kg
-
Product name:
-
Concrete Shotcrete Machine
-
Application:
-
Automatic Spraying Concrete
-
Keywords:
-
Dry Shotcrete Machine
-
Capacity:
-
5 M3/h 6M3/h 7M3/h
-
Usage:
-
Tunnel Supporting
-
Feature:
-
Spraying Function
-
Function:
-
Concrete Spray Shotcrete Gunite Work
-
Manufacturer:
-
Jialongli
Quick Details
-
Max. Conveying Distance:
-
height 20m
-
Max Aggregate Size:
-
20
-
Hose Inner Diameter:
-
57 mm
-
Air Consumption:
-
12m3/min
-
Place of Origin:
-
China
-
Voltage:
-
380v
-
Power:
-
7.5kw, 7.5 KW
-
Dimension(L*W*H):
-
1660*800*1100mm
-
Weight:
-
800 kg, 800 Kg
-
Product name:
-
Concrete Shotcrete Machine
-
Application:
-
Automatic Spraying Concrete
-
Keywords:
-
Dry Shotcrete Machine
-
Capacity:
-
5 M3/h 6M3/h 7M3/h
-
Usage:
-
Tunnel Supporting
-
Feature:
-
Spraying Function
-
Function:
-
Concrete Spray Shotcrete Gunite Work
-
Manufacturer:
-
Jialongli
Products Description

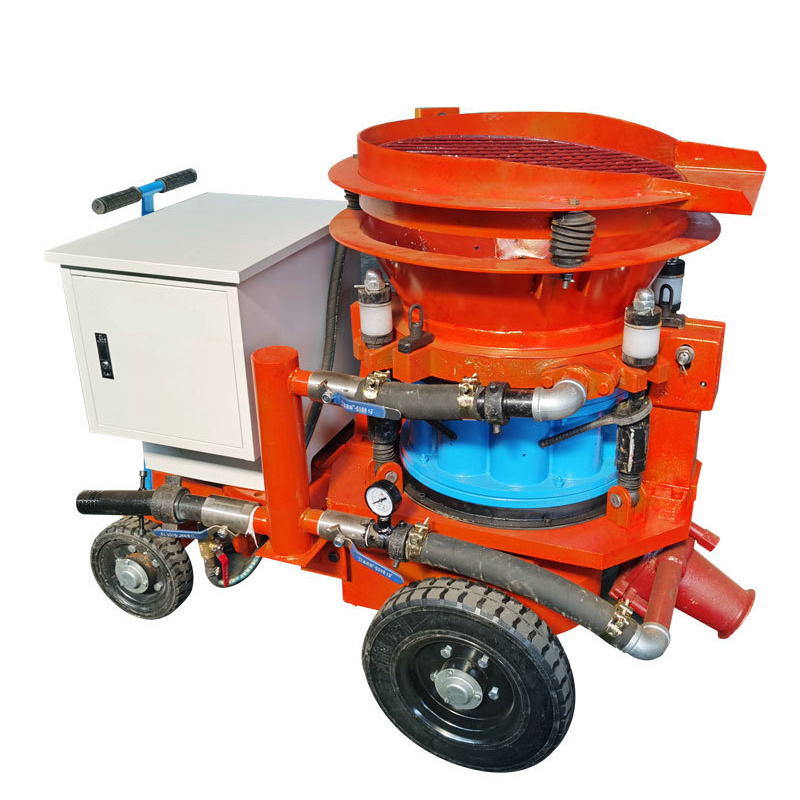

Wet Or Dry Shotcrete Machine
The main features of
JL-5D
are strong feeding vibration and fast discharging.
It is widely used in mine tunnels, culverts, subways, hydropower projects, underground projects, and sprayed concrete construction operations in coal mines and high marshes mine roadways.
JL-6D
is equipped with lifting hook and anti-collision frame, which makes the machine more convenient to lift and transport during use, and can effectively protect the material head during the lifting process, and the electric control box is not damaged.
JL-7D is
a concrete spraying operation equipment independently developed by our company with
larger capacity, higher efficiency and more reasonable structure.
Advantage
1. The air volume can be controlled in time to ensure the continuity of materials and admixtures.
2. The feed inlet is enlarged, the processing capacity per unit time is large, and the output is also increased.
3. Equipped with polymer elastic material cavity, which eliminates the adhesion and blockage of the machine and improves the construction efficiency.
4. The replacement cycle of wearing parts is long, and it is made of special materials to make it highly wearable.
5. The whole machine has good sealing performance, strong performance, high construction efficiency and less working time.
6. Simple operation, convenient maintenance and short downtime.
Product Paramenters
|
Model
|
JL-5D
|
JL-6D
|
JL-7D
|
|
Production Capacity(m³/H)
|
5
|
6
|
7
|
|
Work Pressure （Mpa）
|
0.4-0.6
|
0.4-0.6
|
0.4-0.6
|
|
Delivery pipe inner diameter(mm)
|
φ51
|
φ57
|
φ57
|
|
Maximum conveying distance（m）
|
level：200
vertical：20 |
level：200
vertical：20 |
level：200
vertical：20 |
|
Maximum Aggregate Size（mm）
|
φ20
|
φ20
|
φ20
|
|
Maximum air consumption（m³/min）
|
8
|
12
|
12
|
|
Feeding height（mm）
|
1100
|
1100
|
1100
|
|
Power（kw）
|
5.5
|
7.5
|
7.5
|
|
Voltage level（V）
|
380
|
380
|
380
|
|
Dimensions（mm）
|
1450*710*1100
|
1620*850*1150
|
1660*800*1100
|
|
Total Weight(kg)
|
650
|
780
|
800
|
|
Water cement ratio
|
0.4-0.45
|
0.4-0.45
|
0.4-0.45
|
Usage
Because the concrete spraying technology has the characteristics of simple process, saving concrete, steel and wood, saving labor, improving construction efficiency, and reducing engineering costs.
The application
of concrete spraying machines is becoming more and more common. At present, it has been widely used in the construction of railways, highways, water conservancy, tunnels, civil engineering, national defense, dams, coal and other construction projects, and has become an ideal construction solution for temporary and permanent support of tunnels, road slope protection, coal foundation pits, and underground projects. work machinery.
