Quick Details
-
After-sales Service Provided:
-
Video technical support
-
Tank Volume:
-
4 cbm
-
车身尺寸:
-
5995*2010*2620mm
-
Place of Origin:
-
China
-
Brand Name:
-
LSX
-
Product name:
-
sewage suction truck
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Gross Vehicle Weight:
-
≤5T
-
After-sales Service Provided:
-
Video technical support
-
Tank Volume:
-
4 cbm
-
车身尺寸:
-
5995*2010*2620mm
-
Place of Origin:
-
China
-
Brand Name:
-
LSX
-
Product name:
-
sewage suction truck

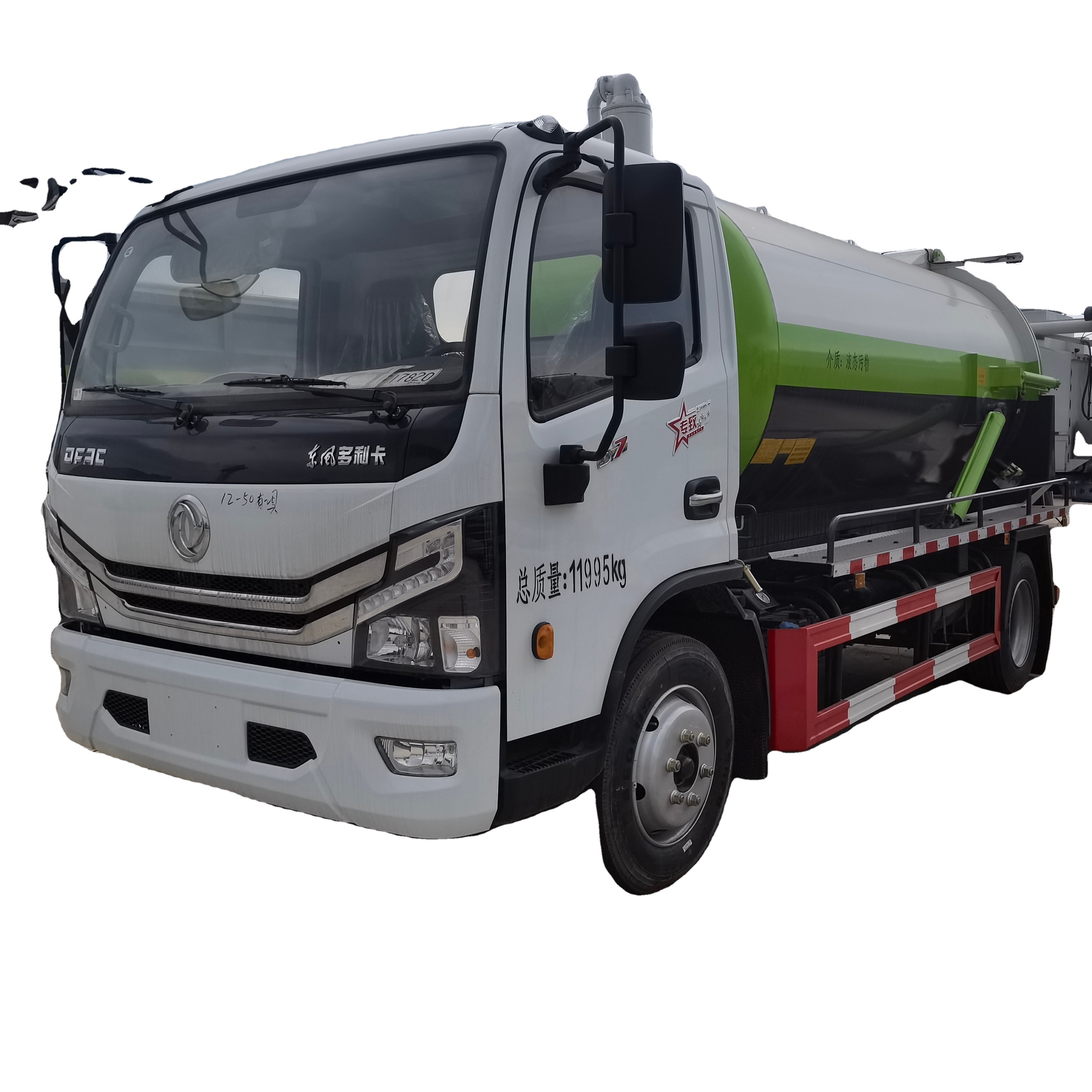

1500 Liters Septic Tank Truck Used For Sewage Collection Transport Good Price
Products Description
The
sewage suction truck
is a new type of sanitation vehicle that collects, transfers and clean up transportation sludge and sewage to avoid secondary pollution. Suction truck can self-suction and self-discharge, fast working speed, large capacity, convenient transportation, suitable for collecting and transporting feces, mud, crude oil and other liquid substances. The suction truck adopts the domestic technology leading suction vacuum pump, large suction, long suction range, especially suitable for suction, loading and discharge of sludge in the sewer, especially can suck sewage mud, silt, stone, brick and other large objects.
The special part of the sewage suction truck is composed of force extractor, transmission shaft, vacuum suction pump, pressure tank body, hydraulic part, pipe network system, vacuum pressure gauge, fecal window, hand washing device, etc., equipped with high-power vacuum suction pump and high-quality hydraulic system, the tank head is die-cast, the tank body can be opened back, and the double top self-unloading. The dirt in the tank can be dumped directly through the back cover, and it has the characteristics of high vacuum (greater suction than the suction truck), large tonnage, high efficiency and wider use.
The special part of the sewage suction truck is composed of force extractor, transmission shaft, vacuum suction pump, pressure tank body, hydraulic part, pipe network system, vacuum pressure gauge, fecal window, hand washing device, etc., equipped with high-power vacuum suction pump and high-quality hydraulic system, the tank head is die-cast, the tank body can be opened back, and the double top self-unloading. The dirt in the tank can be dumped directly through the back cover, and it has the characteristics of high vacuum (greater suction than the suction truck), large tonnage, high efficiency and wider use.
Specification
|
Tire
|
7.00R16 Steel tires
|
|
|
||
|
ABS
|
no have
|
|
|
||
|
A/C
|
Have
|
|
|
||
|
Sleeper
|
no have
|
|
|
||
|
Front / rear overhang
|
front：1055 mm，rear: 1640 mm
|
|
|
||
|
Departure corner
|
front:27，rear: 12
|
|
|
||
|
suspension
|
Leaf spring 6 / 6+5
|
|
|
||
|
Axles
|
front axles 2.5 ton, rear axle 5 ton
|
|
|
||
|
Wheelbase (mm)
|
3300
|
|
|
||
|
Number of tires
|
6+1
|
|
|
||
|
Tread (mm)
|
1525/1498
|
|
|
||
|
Drive type
|
steering wheel LHD
|
|
|
||
|
Braking System
|
Air brake
|
|
|
||
|
Spare tire frame
|
Have
|
|
|
||
|
Light
|
Front profile light, rear profile light, rear taillight assembly, side recovery reflector
|
|
|
||
|
Voltage
|
24V
|
|
|
||
|
Toolbox
|
Have
|
|
|
||
|
colour
|
According to user requirements
|
|
|
||
|
Fuel tank
|
75L
|
|
|
||
|
Spare tire rack
|
Have
|
|
|
||
|
Vacuum pump
|
yifeng pump
|
|
|
||
|
Suction pipe
|
1pc/6m
|
|
|
||
Product Details
Our Certificates
Customer visits
Related Products
FAQ
1. What is your MOQ?
One unit.
2. Can you meet my special requirements?
Sure! We are a direct manufacturer, we have strong
production capacity and research and development capabilities!
3. How is the quality of your products?
High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc. at all stages of the manufacturing process.
4. How can I get the price of your vehicle?
You can contact us through any of the following contact
methods. Our personalized service staff will reply you within 24 hours.
5. Is it possible to print our own brand on the vehicle?
It's totally acceptable.
6: What is the delivery time?
The delivery time is within 30-50 working days after receiving your prepayment.
One unit.
2. Can you meet my special requirements?
Sure! We are a direct manufacturer, we have strong
production capacity and research and development capabilities!
3. How is the quality of your products?
High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc. at all stages of the manufacturing process.
4. How can I get the price of your vehicle?
You can contact us through any of the following contact
methods. Our personalized service staff will reply you within 24 hours.
5. Is it possible to print our own brand on the vehicle?
It's totally acceptable.
6: What is the delivery time?
The delivery time is within 30-50 working days after receiving your prepayment.
