The board meet to the following indicators:
Volume weight:≥40kg/m3
Heat conductivity
:
≤0.024w/m.k
Compressive strength
:
the wall board and roof board is 150~200kpa, the floor is ≥300kpa
Water absorb
:
≤4%
Size stable
:
<1%(-30℃,48h)
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHIYIN
-
Dimension(L*W*H):
-
5000*1600*2100
-
Weight:
-
25000 KG
-
Name:
-
Low-temperature Freezer
-
Product name:
-
Food Freezing Machine
-
Function:
-
Quick-freezing Food
-
Application:
-
Food Quick Frozen Machine
-
Freezer Type:
-
Seafood Blast Freezer
-
Temperature:
-
30~ -40C
-
Material:
-
Stainless Steel 304
-
Frozen products:
-
Fish Meat Seafood Fruit Vegetable
-
Feature:
-
High Freezing Effiency
-
Capacity:
-
100-2000kg
Quick Details
-
Voltage:
-
380V
-
Power:
-
Customized
-
Cooling Capacity:
-
100-500kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHIYIN
-
Dimension(L*W*H):
-
5000*1600*2100
-
Weight:
-
25000 KG
-
Name:
-
Low-temperature Freezer
-
Product name:
-
Food Freezing Machine
-
Function:
-
Quick-freezing Food
-
Application:
-
Food Quick Frozen Machine
-
Freezer Type:
-
Seafood Blast Freezer
-
Temperature:
-
30~ -40C
-
Material:
-
Stainless Steel 304
-
Frozen products:
-
Fish Meat Seafood Fruit Vegetable
-
Feature:
-
High Freezing Effiency
-
Capacity:
-
100-2000kg
Product Information
high quality industrial shock fast quick freezing machine small iqf freezer iqf spiral freezer/freezing machine
The fluidized bed freezer makes the product float on the stainless steel mesh belt by mechanical vibration and wind pressure, so as to realize the quick freezing of the monomer and prevent adhesion. It is mainly suitable for quick freezing of vegetables, fruits and other granular, flake and block foods.
The processing method of preserving vegetables by low temperature and quick freezing is that the pretreated vegetables are frozen at - 30 ~ - 35 ℃ or lower, then packed in plastic bags, boxes and other containers, or frozen again after packaging, and then stored at - 18 ℃ to inhibit the growth and propagation of microorganisms and the activity of enzymes, so that the vegetables can be preserved for a long time.
Specification
high quality industrial shock fast quick freezing machine small iqf freezer iqf spiral freezer/freezing machine

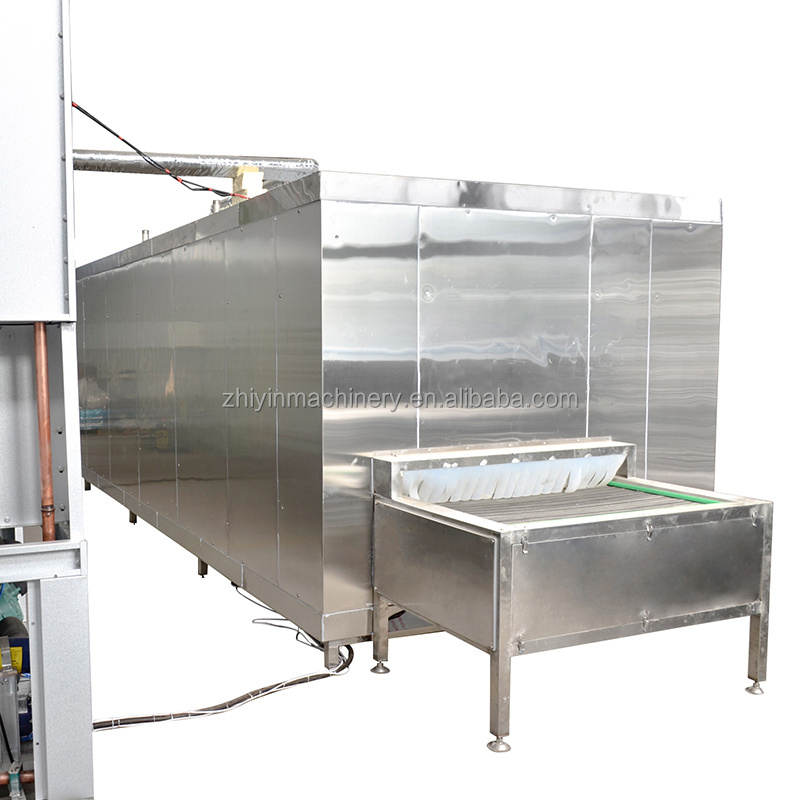

This series of quick-freezing machine is a new model produced by our company on the basis of the production of tunnel type quick-freezing machine combined with the advanced design concepts and production techniques of similar manufacturers at home and abroad; it has high freezing efficiency, short time, long flushing cycle, and airflow The organization is reasonable, energy saving, and truly meet the "wind" and "cold" perfect match, running reliable, safe and sanitary, easy to use and easy to clean and so on.
1. This equipment is mainly composed of transmission system, evaporator, high-pressure fan group, heat preservation body, internal and external brackets, and electrical control.
2.. The freezer external dimensions: length 8000mm *width 1400mm * height 2000mm, wherein the feed section length 1000mm, discharge section length 800mm.
3. The machine is made of SUS304 stainless steel, with obvious features and advantages:
a. This equipment adopts high-pressure axial fan, which has the features of large air volume and high wind pressure.
b. With the optimized structure design, internal cleaning and overhaul are very convenient and meet HACCP management system requirements.
c. Variable-pitch design, low frost rate, delaying the flush cycle, and ensuring production continuity.
d. Strong air convection plus dedicated air volume distribution device, freezing and quick-freezing, and excellent frozen product quality.
e. In addition to some standard parts and gold processing parts, the quick-freezing machine is made of stainless steel. Food contact parts are made of food-grade materials.
f. The speed of the transmission belt adopts variable frequency stepless speed regulation, and the transmission belt speed can be arbitrarily adjusted to meet the requirements of different frozen products and different freezing time, and the speed regulation area is stable.
g.Using SUS304 high-strength stainless steel wire mesh belt, the bottom is made of UHMW quick-freeze special wear-resistant material soft support.
high quality industrial shock fast quick freezing machine small iqf freezer iqf spiral freezer/freezing machine
Fully automatic refrigeration compressor unit
high quality industrial shock fast quick freezing machine small iqf freezer iqf spiral freezer/freezing machine
|
Internal operating temperature:
|
+35℃~-35℃
|
|
Cold product feeding temperature:
|
LT;25℃ (central temperature)
|
|
Frozen product discharge temperature:
|
-20℃ (central temperature)
|
|
Freezing time:
|
adjustable from 15 to 45 minutes
|
|
Energy saving measures:
|
The inlet and outlet of the material shall be equipped with a wind shield to avoid the loss of cooling capacity caused by the
direct blowing of the cold air out of the insulation layer and effectively reduce the loss of cooling capacity. In addition, a separate buffer room can be set. |
|
Product customization:
|
The external dimension of the monofreezer is 12600×3500×2400 (mm), and other production dimensions can be customized
(example:22600×3500×2400 (mm)). |
high quality industrial shock fast quick freezing machine small iqf freezer iqf spiral freezer/freezing machine
Evaporator and winding:
1.evaporator is aluminum finned tube which is of oxide antirust processing. It ensure uniform frost, air flow. All material is
stainless steel.
2.Euipped with axial flow fan which is of high efficiency and energy saving,
3. Adopts manual defrosting. The defrosting water spraying device is set on upper of evaporator to ensure uniform
defrosting,rapid.
stainless steel.
2.Euipped with axial flow fan which is of high efficiency and energy saving,
3. Adopts manual defrosting. The defrosting water spraying device is set on upper of evaporator to ensure uniform
defrosting,rapid.
Evaporator and defrosting:
1. It is designed based -40℃ evaporating liquid.
2. It is aluminum finned tube which is oxide antirust processing. It can ensure uniform frost, air flow, bracket.
3. It is axis air fan which of low noise and works stable.
2. It is aluminum finned tube which is oxide antirust processing. It can ensure uniform frost, air flow, bracket.
3. It is axis air fan which of low noise and works stable.
-38~-45°c Low-temperature Quick-freezing Equipment300kg/h Iqf Tunnel Type Food Freezing Machine Frozen French Fries Line Seafood
Fluidized Frozen Machine Low Temperature Freezer
Fluidized Frozen Machine Low Temperature Freezer
Our Advantages
Product Detail Description:
1. large efficient surface; Small temperature difference between evaporation temperature and frozen indoor temperature.
2. Evaporating fan, ventilation device, adjustable heat wave device improve the focus and cold wind speed. It makes the
foodsfreeze in shortest time and of unified quality.
3. The wind direction can be adjusted and control the cold wind not out. The adjustable temperature control device can control the feeding height in avoid of cold air lose.
4. 150mm-thick polyurethane insulation board ; 0.8mm thick SUS304 stainless steel board; the access door is equipped with double hinge two-door into double strip which is resist to low temperature and oil.
5. all parts is SUS304 except the reducer and motor and other special parts.
6. the wide speed and temperature is stable, freezing temperature is stable and well distributed, so the French fries can be
freezed in short time.
7. In order to prevent cold energy loss and increase energy consumption, the stainless steel wide adjust device and keep
temperature device will be equipped at the entrance and out of the instant freezer.
8. It is manufactured, designed, installed based on International standard. It is stainless steel self-extinguishing flame
retardant polyurethane sandwich insulation board. The shell thickness is 0.6mm and it is SUS304 stainless steel. The inner is 150mm.
2. Evaporating fan, ventilation device, adjustable heat wave device improve the focus and cold wind speed. It makes the
foodsfreeze in shortest time and of unified quality.
3. The wind direction can be adjusted and control the cold wind not out. The adjustable temperature control device can control the feeding height in avoid of cold air lose.
4. 150mm-thick polyurethane insulation board ; 0.8mm thick SUS304 stainless steel board; the access door is equipped with double hinge two-door into double strip which is resist to low temperature and oil.
5. all parts is SUS304 except the reducer and motor and other special parts.
6. the wide speed and temperature is stable, freezing temperature is stable and well distributed, so the French fries can be
freezed in short time.
7. In order to prevent cold energy loss and increase energy consumption, the stainless steel wide adjust device and keep
temperature device will be equipped at the entrance and out of the instant freezer.
8. It is manufactured, designed, installed based on International standard. It is stainless steel self-extinguishing flame
retardant polyurethane sandwich insulation board. The shell thickness is 0.6mm and it is SUS304 stainless steel. The inner is 150mm.
