The LF32 air compressor differential pressure switch is an adjustable differential pressure switch capable of detecting miniscule changes in pressure do to its size and
proven design.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF32
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
5000PA
-
Product Name:
-
Pressure switch
-
Pressure range:
-
20-200Pa;30-300pa;100-1000pa;1000-5000pa
-
Power supply:
-
250V
-
Medium:
-
Air, non-combustible and ono-aggressive gass
-
Electrical rating:
-
250VAC/1.5A(0.4A)
-
Application:
-
Ventilation system
-
Temperature:
-
-40-85℃
-
Connection:
-
6.4mm for tube connection
-
Rated voltage:
-
250V
-
Certification:
-
CE, UL
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF32
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
5000PA
-
Product Name:
-
Pressure switch
-
Pressure range:
-
20-200Pa;30-300pa;100-1000pa;1000-5000pa
-
Power supply:
-
250V
-
Medium:
-
Air, non-combustible and ono-aggressive gass
-
Electrical rating:
-
250VAC/1.5A(0.4A)
-
Application:
-
Ventilation system
-
Temperature:
-
-40-85℃
-
Connection:
-
6.4mm for tube connection
-
Rated voltage:
-
250V
-
Certification:
-
CE, UL
PRODUCT DESCRIPTION

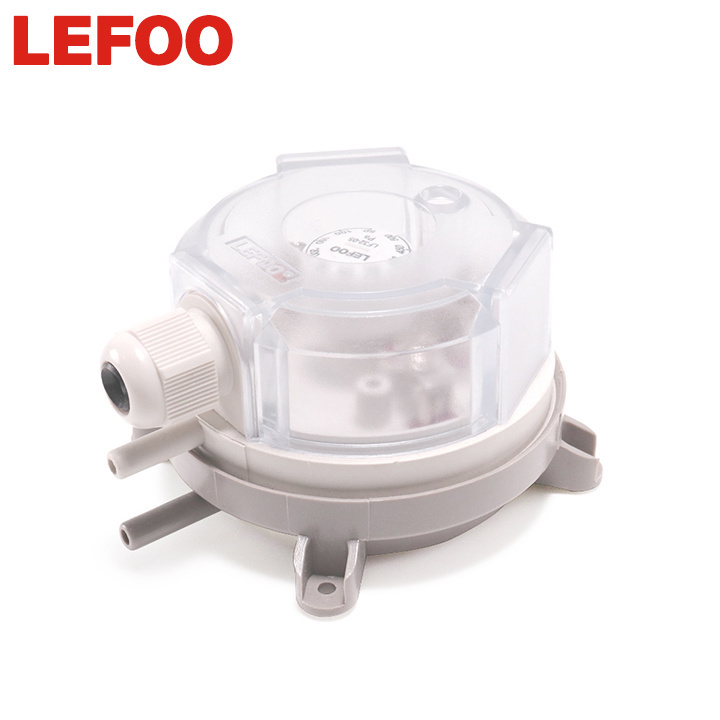

LF32 air compressor differential pressure switch
is an adjustable differential pressure switch capable of detecting miniscule changes in pressure due to the size and proven design. The switch set point or switching point can be field adjustable without the need of a manometer by simply using the adjust ment knob and the built in calibrated visual scale. This switch is equipped a clear cover that not only protects the adjustment knob to be move involuntary but also provides class IP54 protection.
|
Model
|
Air，non-combustible and ono-aggressive gass
|
|
Max Operating Pressure
|
10kPa
|
|
Mounting Position
|
Diaphragm in any vertical plane
|
|
Degree of Protection
|
IP54 (with cover)
|
|
Operating Temperature
|
-40° C to +85° C
|
|
Contact Arrangement
|
SPDT
|
|
Electrical Rating
|
Resistance： Initial: <400 milliohms;Current：1.5A(0.4A)/250V
|
|
Connection
|
φ6.4mm for tube connection
|
DESCRIPTION
APPLICATION
Controlling fire protection flaps in ventilation ducts.
Monitoring air filters in cooling and heating systems.
APPLICATIONS
RELATED PRODUCTS
WHY CHOOSE US
ABOUT LEFOO
PACKING & DELIVERY
FAQ
Q:What kind of products do you offer ?
A:Lefoo Industrial Co.,Ltd is focusing on RO booster pump, peristaltic pump and rotary vane pump, has became one of the leading micro pump brands in China and even in the world. Zhejiang Lefoo Sensing Technology Co., Ltd is specializing in pressure sensors, pressure transmitters, differential pressure transmitters, pressure switches, pressure
controllers, temperature & pressure integrated transmitters and other pressure Sensing and control products, as well as temperature and humidity transmitters, CO2 transmitters, air speed transmitters, hydrogen sulphide transmitters, ammonia transmitters and other environmental gas products.
Q: Are you manufacturer ?
A: Yes, we are manufacturer with 3 factories.
Q: Can I get samples?
A:Yes, we have materials in stock to help you to get the samples as soon as we can.
Q: Can you make customized products ?
A: Yes, customized is accept, please contact us for specific requirements.
Q: Can I to be your distributor ?
A: Please contact us directly for details.
Q: What's your warranty ?
A:Normally one year warranty.
