Quick Details
-
After-sales Service Provided:
-
Online support, Video technical support
-
Tank Volume:
-
5000L
-
车身尺寸:
-
5600x2480x3250
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
dongfeng
-
Horsepower:
-
120HP
-
engine brand:
-
chaochai
-
wheelbase:
-
3800mm
-
brake:
-
air brake
-
engine standard:
-
euro III
-
color:
-
blue and white
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Gross Vehicle Weight:
-
3995
-
After-sales Service Provided:
-
Online support, Video technical support
-
Tank Volume:
-
5000L
-
车身尺寸:
-
5600x2480x3250
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
dongfeng
-
Horsepower:
-
120HP
-
engine brand:
-
chaochai
-
wheelbase:
-
3800mm
-
brake:
-
air brake
-
engine standard:
-
euro III
-
color:
-
blue and white

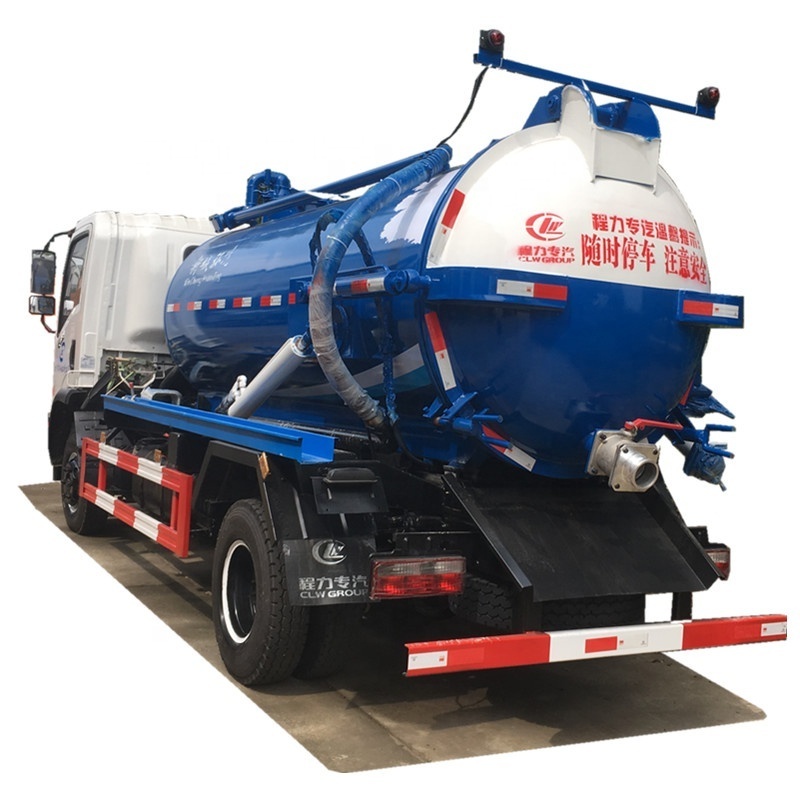

Sewer Septic suction Tanks 5Tons Vacuum Pump Sewage septic pipe Tanker Truck
1:Dongfeng FRK chassis
2--3000L sewage tank
3--CCC and ISO 9001
1:Independent high pressure jet washing & cleaning system helps ensure safe operation and high efficiency.
2:Independent vacuum suction system helps ensure efficient capacity and high suction performance.
3:Sludge tank is equipped with liquid level observation door and high liquid level protection alarm device, in the event that the liquid level in tank reaches the designated height, the engine's rotation speed will be automatically altered into idle speed.
4:Three kinds of sprinklers are employed: rhombic penetrate nozzle, mushroom nozzle, and bomb nozzle.
5:High pressure dredging & cleaning and vacuum pollutant absorption are integrated (for multiple-purpose usage).
|
Item |
unit |
Parameters |
|
|
Vechicle model |
CLW5060GXWW sewage truck |
||
|
Chassis model |
/ |
EQ1060TJ20D3 |
|
|
|
Overall dimensions |
mm |
5600×1890×2340 |
|
Curb weight |
kg |
4315 |
|
|
GVW |
kg |
Appro*5945 |
|
|
Garbage box volume |
L |
3000L |
|
|
Wheelbase |
mm |
3300 |
|
|
F/R track base |
mm |
1506/1466 |
|
|
Approach/departure angle |
19/10 |
||
|
Exaust/hp |
ml/kw |
3856/95 |
|
|
Max speed |
Km/h |
90 |
|
|
Tire specification |
/ |
7.00-16 |
|
|
Traction systerm |
/ |
4*2 |
|
|
NO of axles |
/ |
2 |
|
|
Operation control systerm |
Electrically hudraulic |
||
|
Engine type |
CY4102-C3F, water cooled, in line |
||
|
Cylinder |
4 |
||
|
Electric system |
24v |
||
|
Suction time |
>4mins |
||
|
Effective suction |
≤7m |
||
|
Payment term |
T/T |
||
|
Warranty |
1year |
||
Transportation warranty .our company offer Transportation insurance for customer. To ensure customer’s prdocts arrival at the destination new and safe
Our company make production plan use 1 day ,production time need 20 working days( ready material need 3days , welding need 8days ,water test and pressure test need 5days ,painting beed 3days ,last inspect need 1 days )
From Suizhou send to huoerguosi need 7days . Declare at customs need 2days ,from huoerguosi to tashigan need 7days .
