Quick Details
-
Engine Brand:
-
Quanchai/Xinchai/Yunnei
-
Weight:
-
1650 KG
-
Engine fuel injection:
-
Mechanical pump oil
-
Clutch Type:
-
Dual stage clutch
-
Gear Shift:
-
8F+2R shift
-
Tire Size:
-
6.0-16/9.5-24
-
PTO Speed:
-
540/760 or 540/1000
-
Steering:
-
Hydraulic Power Steering 4WD
-
3-point linkage:
-
3-point cat I
-
Transmission:
-
Manuel gear box
-
Differential lock:
-
Full mechanical type
-
Options:
-
Rops/Sunshade/Cabin
Quick Details
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2022
-
Warranty of core components:
-
1.5 Year
-
Engine Brand:
-
Quanchai/Xinchai/Yunnei
-
Weight:
-
1650 KG
-
Engine fuel injection:
-
Mechanical pump oil
-
Clutch Type:
-
Dual stage clutch
-
Gear Shift:
-
8F+2R shift
-
Tire Size:
-
6.0-16/9.5-24
-
PTO Speed:
-
540/760 or 540/1000
-
Steering:
-
Hydraulic Power Steering 4WD
-
3-point linkage:
-
3-point cat I
-
Transmission:
-
Manuel gear box
-
Differential lock:
-
Full mechanical type
-
Options:
-
Rops/Sunshade/Cabin
Products Description
|
Parameters
|
|
|
|
|
|
|
||||||
|
Model
|
|
TK254
|
TK304
|
TK354
|
TK404
|

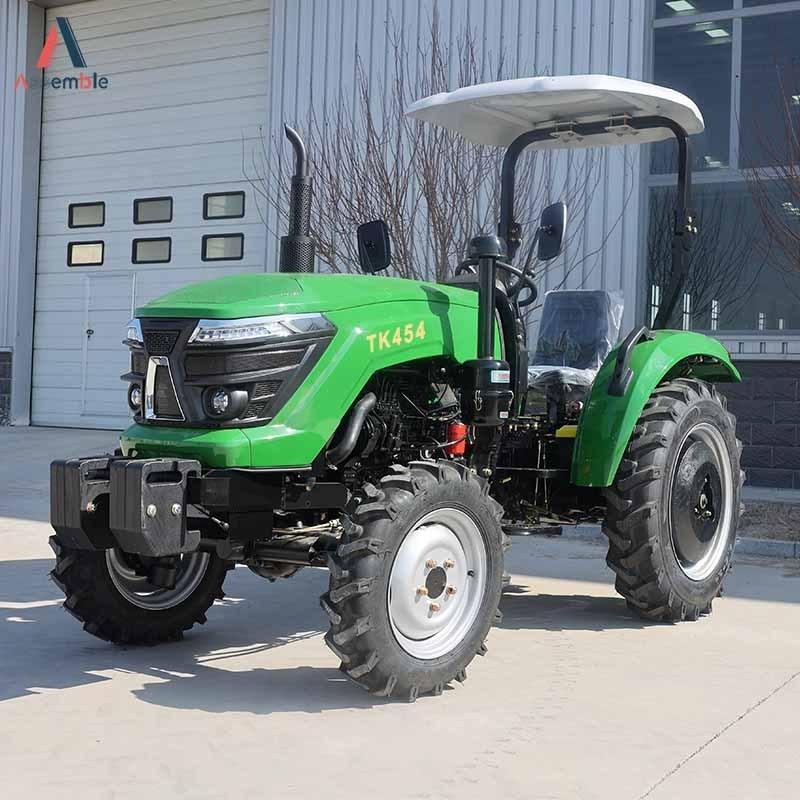

TK454
|
||||||
|
Type
|
|
4x4
|
|
|
|
|
||||||
|
PTO power (KN)
|
|
15.6
|
18.79
|
21.9
|
24.5
|
28.2
|
||||||
|
Rated Traction( KN)
|
|
5.6
|
5.9
|
6.2
|
6.5
|
7
|
||||||
|
Dimensions(mm)
|
|
3150×1450×2030
|
3150×1450×2030
|
3250×1455×2040
|
3220×1500×2130
|
3220×1500×2130
|
||||||
|
Wheelbase（mm）
|
|
1715
|
1715
|
1820
|
1820
|
1820
|
||||||
|
Front and rear track (mm)
|
|
960/1220
|
|
|
|
|
||||||
|
Rear track (mm)
|
|
960/1160/1200/1300
|
|
|
|
|
||||||
|
Minimum ground clearance(mm)
|
|
330
|
|
|
|
|
||||||
|
Turning circle radius(m)
|
|
3
|
|
|
|
|
||||||
|
Weight (KG)
|
|
1400
|
1418
|
1432
|
1450
|
1500
|
||||||
|
Clutch
|
|
Single stage clutch
|
|
|
|
|
||||||
|
Gearbox
|
|
8+2 shift
|
|
|
|
|
||||||
|
Front tire
|
|
6.00-16
|
|
|
|
|
||||||
|
Rear tire
|
|
9.5-24
|
|
|
|
|
||||||
|
Maximum lifting force at 610mm(KN)
|
|
4.13
|
4.96
|
5.79
|
6.64
|
7.5
|
||||||
|
Suspension mechanism
|
|
Three-point suspension cat I
|
|
|
|
|
||||||
|
Hydraulic output
|
|
Optional 1 or 2 groups
|
|
|
|
|
||||||
|
PTO speed r/min
|
|
540/760 or 540/1000 or 760/1000
|
|
|
|
|
||||||
|
PTO type
|
|
6-Ø35 Rectangular Spline
|
|
|
|
|
||||||
|
Engine brand
|
|
Xichai/Laidong/YTO
|
|
|
|
|
||||||
|
Engine type
|
|
Diesel engine
|
|
|
|
|
||||||
|
Engine cylinder
|
|
3
|
|
4
|
|
|
||||||
|
Start method
|
|
Electric
|
|
|
|
|
||||||
|
Radiater
|
|
10
|
|
|
|
|
||||||
|
Fuel tank
|
|
30
|
|
|
|
|
||||||
|
Engine oil pan(L)
|
|
5
|
|
|
|
|
||||||
|
Driveline oil (L)
|
|
20
|
|
|
|
|
||||||
|
Lifter(L)
|
|
9.5
|
|
|
|
|
||||||
|
Model
|
|
TK504
|
TK604
|
TK704
|
|||
|
Type
|
|
4x4
|
|
|
|||
|
PTO power (KN)
|
|
31.3
|
37.5
|
43.8
|
|||
|
Rated Traction( KN)
|
|
10.5
|
11.5
|
12
|
|||
|
Dimensions(mm)
|
|
3450×1550×2350
|
3310×1650×2450
|
3310×1650×2500
|
|||
|
Wheelbase（mm）
|
|
1880
|
1900
|
1900
|
|||
|
Front and rear track (mm)
|
|
1150
|
|
|
|||
|
Minimum ground clearance(mm)
|
|
1200-1360
|
|
|
|||
|
Turning circle radius(m)
|
|
3.15±0.30
|
|
|
|||
|
Weight (KG)
|
|
1790
|
1850
|
1900
|
|||
|
Clutch
|
|
Dual stage clutch
|
|
|
|||
|
Gearbox
|
|
8+8 shuttle shift
|
|
|
|||
|
Front tire
|
|
6.5-16
|
|
|
|||
|
Rear tire
|
|
11.2-24
|
|
|
|||
|
Maximum lifting force at 610mm(KN)
|
|
8.3
|
10
|
10.85
|
|||
|
Suspension mechanism
|
|
Three-point suspension type cat I or II
|
|
|
|||
|
Hydraulic output
|
|
Optional 1 or 2 groups
|
|
|
|||
|
PTO speed r/min
|
|
540/760 or 540/1000 or 760/1000
|
|
|
|||
|
PTO type
|
|
6-Ø35 Rectangular Spline
|
|
|
|||
|
Engine brand
|
|
Xichai/Laidong/YTO
|
|
|
|||
|
Engine type
|
|
Diesel engine
|
|
|
|||
|
Engine cylinder
|
|
4
|
|
|
|||
|
Start method
|
|
Electric
|
|
|
|||
|
Radiater
|
|
10
|
|
|
|||
|
Fuel tank
|
|
45
|
|
|
|||
|
Engine oil pan(L)
|
|
5
|
|
|
|||
|
Driveline oil (L)
|
|
20
|
|
|
|||
|
Lifter(L)
|
|
9.5
|
|
|
|||
