Corrosion Resistant Plastic Flange Bearing Unit SS UCFLPL207 2-Bolt Shaft 35mm Pillow Blocked Mounted Ball Bearing UCFLPL207

Corrosion Resistant Plastic Flange Bearing Unit SS UCFLPL207 2-Bolt Shaft 35mm Pillow Blocked Mounted Ball Bearing UCFLPL207

FOB Reference Price: Get Latest Price

≥10 Sets

US $4.35

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Precision Rating:: P6 P5 P0

Product name:: Flange bearing SS UCFLPL207-23SS

Housing material:: PBT Thermoplastic

Bore Diameter:: 35

Weight:: 0.6kg

Rolling body:: Ball bearing

Feature:: hy-gienic, corrosion resistant

Lubrication:: Relubricatable Bearing

Package:: Cartons, Plastic bag,Pallet

Application:: Automotive.tractor.construction Machinery.rolling Mill

Quick Details

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Brand Name:: HGJX or Customized

Model Number:: UCFLPL207

Place of Origin:: Shandong, China

Precision Rating:: P6 P5 P0

Product name:: Flange bearing SS UCFLPL207-23SS

Housing material:: PBT Thermoplastic

Bore Diameter:: 35

Weight:: 0.6kg

Rolling body:: Ball bearing

Feature:: hy-gienic, corrosion resistant

Lubrication:: Relubricatable Bearing

Package:: Cartons, Plastic bag,Pallet

Application:: Automotive.tractor.construction Machinery.rolling Mill

Product Paramenters

Corrosion Resistant Plastic Flange Bearing Unit SS UCFLPL207 2-Bolt Shaft 35mm Pillow Blocked Mounted Ball Bearing UCFLPL207

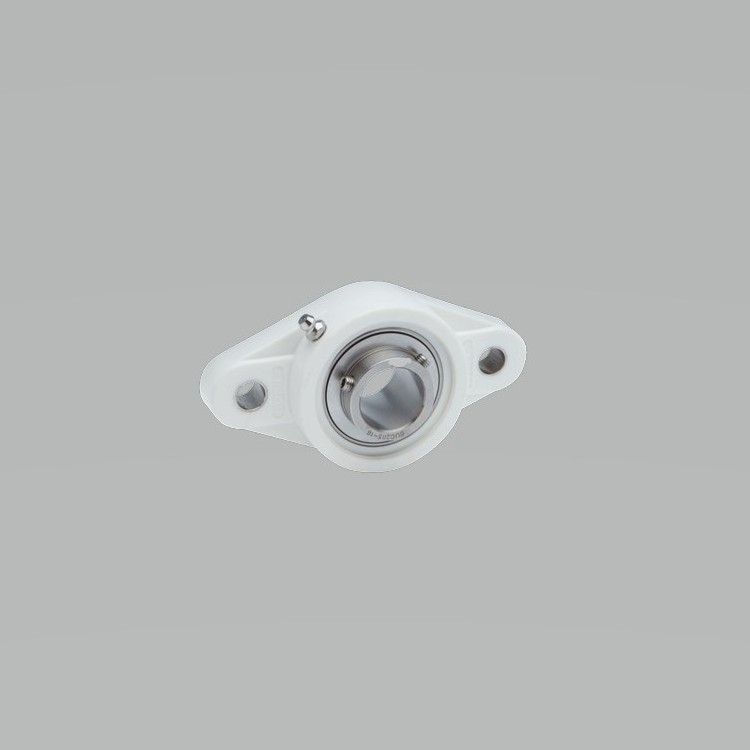

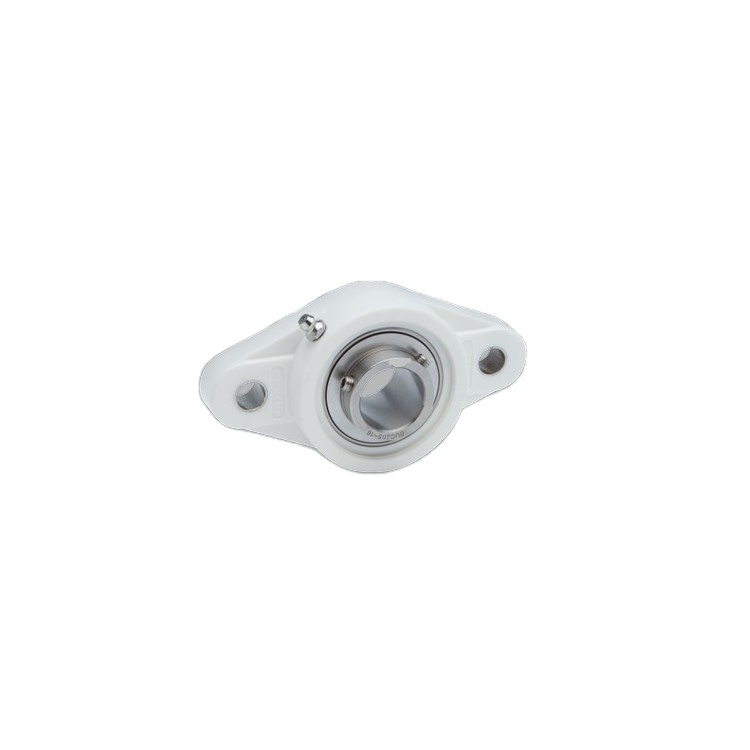

The flange bearing SS-UCFLPL207 is suitable for high radial loads and for installation in various a pplications. It is hygienic and corrosion resistant with its plastic housing and stainless steel bearing insert.

* consisting of a stainless steel ball bearing insert SSUC 204 and a thermoplastic housing FLPL 204
* the design as a 2-hole flange bearing allows installation in a variety of applications, even with limited space at the installation site and is suitable for high radial loads
* the housing is made of plastic and is herefore lightweight, hygienic, corrosion-resistant and cushioning
* the bearing insert made of stainless steel is also corrosion-resistant and has an extended inner ring with grub screws
* The flange bearing is mounted on the shaft using two grub screws
* smooth running and good behavior with tilting due to the extended inner ring

* lubricated for life; under normal operating conditions relubrication is not required
* the bearing is lubricated for life with the grease for food industry FM 222 for normal operating conditions
* the bearing is used particularly in the food and beverage industry as well as in the pharmaceutical industry
* housing with integrated lubrication hole

Product Name	Corrosion Resistant Plastic Flange Bearing Unit SS UCFLPL207 2-Bolt Shaft 35mm Pillow Blocked Mounted Ball Bearing UCFLPL207
Bearing type	Ball Bearing ,Pillow Block Bearing
Housing Material	Thermoplastic
Color	White ,Black ,Green
Bore Diameter	12-35mm
Feature	lightweight, hygienic, corrosion-resistant and cushioning
Cage Material	Stainless Steel
Lubrication	Relubricatable
Payment	Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shippment.
Application	pharmaceutical machinery, conveyor systems, film processing machinery, spin machine, printing machinery,

Details Images

More products

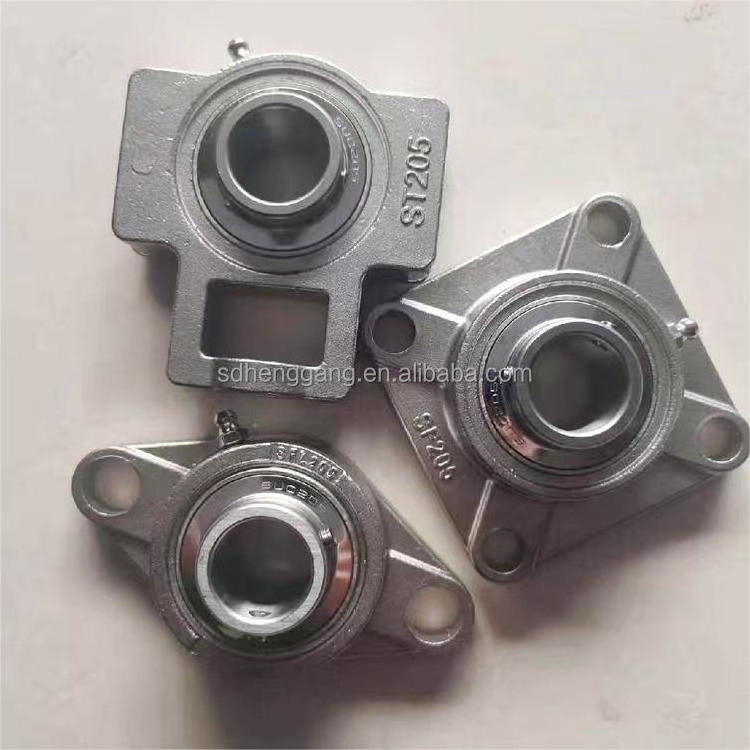

We also supply other models and other types of bearings in the stainless steel UCFLPL series, as shown in the figure:

Application

Pillow block ball bearing is widely used in various of ways:

1. Automatic controlling machine 2. Semi-conductor industry 3. General industry machinery 4. Medical equipment 5. Solar energy equipment 6. Machine tool 7. Parking system 8. High-speed rail and aviation transportation equipment, etc.

Packing and Delivery

Packing

1.If no special request, we will use normal packing, bag + box + carton + pallet
2.If need special packing or carding, please list them in your email. We would like to make the customized packing.
3.We will use try to protect products in order to avoid any damage in the delivery.

Delivery and Shippment

1. According to the weight, flange Bearing units can be sent by air or by sea.
2. Customers can also choose their own forwarder, The goods will be sent directly from the factory to the freight forwarding warehouse
3. Products will be made after confirming the order, bearings in stock can be delivered within 7days.

4.International express DHL UPS FedEx TNT EMS etc.

Factory and Stock

Shandong Henggang Bearing Manufacturing Co., Ltd. is a professional manufacturer of high quality aligning roller bearings and cylindrical roller bearings. It is one of the largest manufacturers of aligning roller bearings in China. The company specializes in the production of spherical roller bearings.

The company has a strong technical force, technical workers have undergone rigorous training and assessment, work style is rigorous and serious.The company adopts automatic NC production line, while establishing a sound inspection means, full-range tracking, system inspection..At present, Henggang bearing products are widely used in mines, oil fields, steel mills and other fields, especially the company's fan bearing products and steel mill supporting bearing products have been highly praised by customers.Therefore, one of our greatest advantages over other companies is that we can offer the best factory price on the same quality basis.
