Quick Details
-
Application:
-
Villa
-
Type:
-
24 V DC gate opener kit
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG, Chisung
-
Model Number:
-
CSSGO-05, CSSGO-05
-
Motor:
-
24 V DC, 70W per actuator, 5.2A current
-
Actuator travel:
-
600mm
-
Actuator speed:
-
1.6 cm/second
-
Max.Width of each gate:
-
3m
-
Max.Weight of each gate:
-
500 kgs
-
Power supply:
-
110V/60Hz (or 220V/50Hz)
-
Autoclosing duration:
-
programmable (from 0 to 99 seconds)
-
Open/closing running time:
-
programmable (from 0 to 99 seconds)
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Type:
-
24 V DC gate opener kit
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG, Chisung
-
Model Number:
-
CSSGO-05, CSSGO-05
-
Motor:
-
24 V DC, 70W per actuator, 5.2A current
-
Actuator travel:
-
600mm
-
Actuator speed:
-
1.6 cm/second
-
Max.Width of each gate:
-
3m
-
Max.Weight of each gate:
-
500 kgs
-
Power supply:
-
110V/60Hz (or 220V/50Hz)
-
Autoclosing duration:
-
programmable (from 0 to 99 seconds)
-
Open/closing running time:
-
programmable (from 0 to 99 seconds)

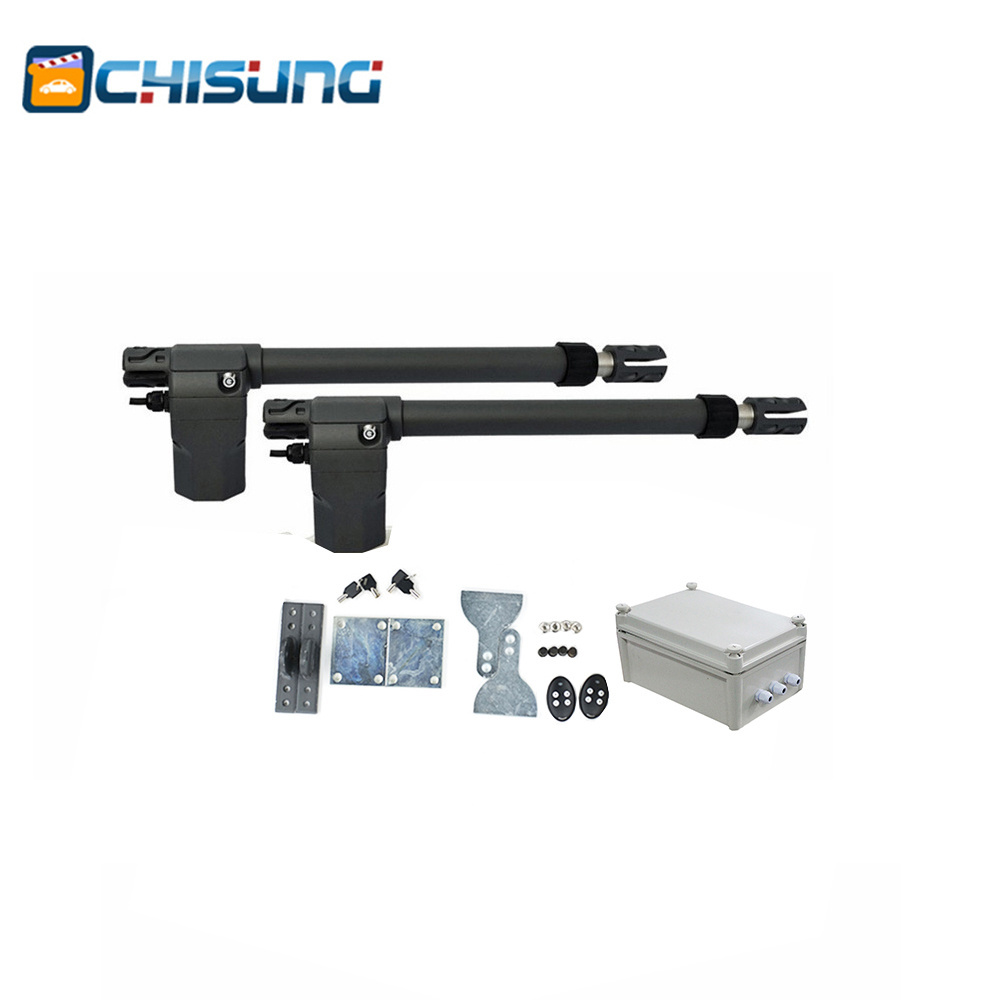

Heavy Duty High Quality Security Swing Gate Opener Kit
Technical Parameters
|
1 |
Power Supply |
AC220V±10V 50/60HZ |
|
2 |
Electric motor |
DC24V |
|
3 |
Motor speed |
1.6cm/s |
|
4 |
Operating Temperature |
-20°C~+60°C |
|
5 |
Relative Humidity |
≤95%, No Condensation |
|
6 |
Power of motor |
70W |
|
7 |
Max leaf length |
3m |
|
8 |
Rotational speed |
1800RPM |
|
9 |
Max gate weight |
500Kg |
|
10 |
Running time protection |
Adjustable |
|
11 |
Current |
5.2A(24DC) |
|
12 |
Rod's max travel |
600mm |
|
13 |
Auto closing delay time |
Adjustable |
|
14 |
Gate move speed |
12m/min |
|
15 |
Application |
home automation |
|
16 |
Protection class |
IP45 |
