Quick Details
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Other
-
Brand Name:
-
IEI
-
Place of Origin:
-
BJ, CN
-
Motherboard:
-
Industrial Embedded Motherboard
-
USB:
-
4USB3.0 8USB2.0
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
LAPTOP
-
Form Factor:
-
MINI-ITX BOARD
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Other
-
Brand Name:
-
IEI
-
Place of Origin:
-
BJ, CN
-
Motherboard:
-
Industrial Embedded Motherboard
-
USB:
-
4USB3.0 8USB2.0
TEKET INNOVATION founded in year 2003 in Beijing, provides TEKET brand embedded motherboard, industrial PC and related parts (chassis, power supply, RAM, SSD, LCD panel) and Intel/Lenovo/ASUS/Gigabyte/MSI/HP/Dell NUC or laptop.
We also distribute the following brands industrial/workstation/server motherboards and complete systems or accessories
VIA,ASUS,ASRock,Gigabyte,MSI
Advantech,ICOP
IEI,AAEON,Kontron,ARBOR,Norco
Axiomtek,Avalue,COMMELL,iBase
ADlink,Supermicro,Jetway,EVOC
Innodisk,Transcend
www.teket.com
For well-known brands of embedded industrial motherboards, workstation motherboards, server motherboards, and corresponding complete systems:
1. It is recommended to consider upgrade new models for discontinued products, or consider second-hand of the same model.
2. It usually need pre order for product that is still launched.
please provide the model # and quantity you need so that the factory could confirm the unit price and delivery time;
3. The price is determined by the factory based on the quantity the client orders and the delivery time, and unit price in the listing has no reference significance.

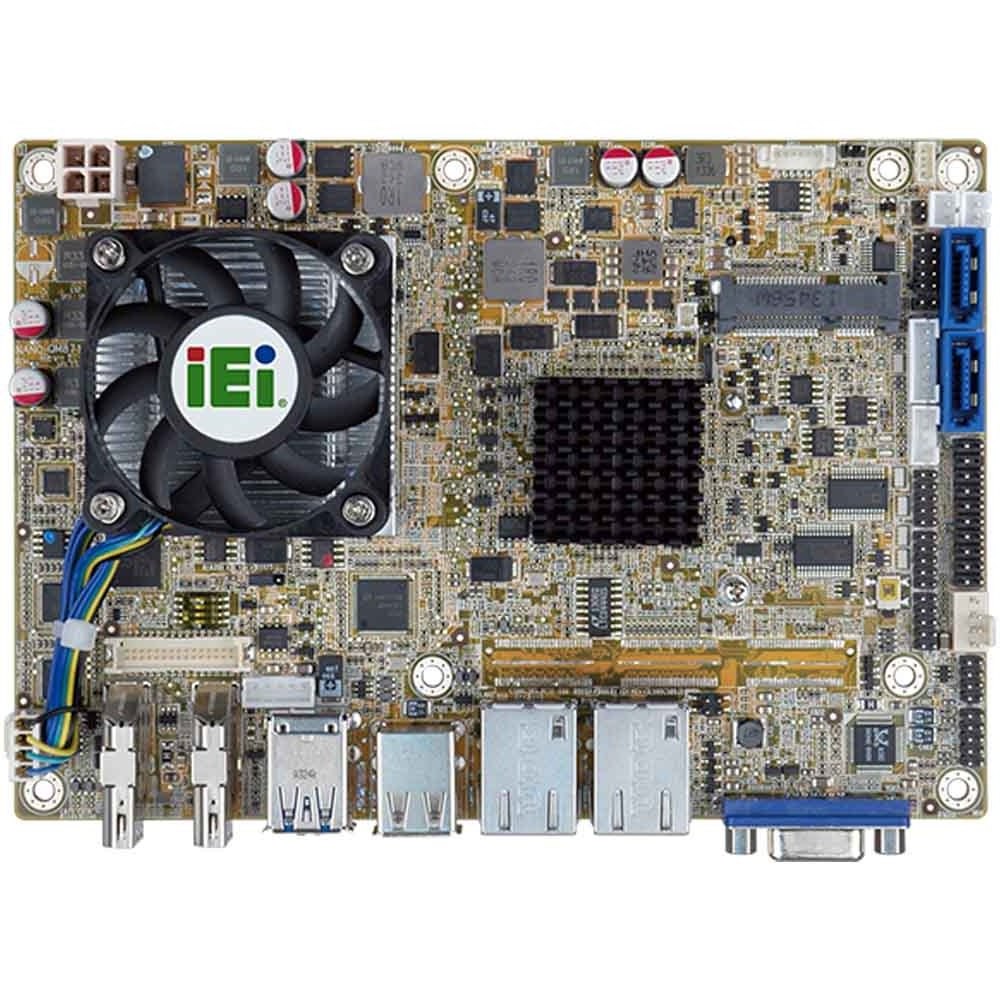

NANO-QM871-i1
CPU Socket / Chipset
Intel® QM87
On board
Memory
1 x 204-pin 1600/1333MHz dualchannel
DDR3/DDR3L SO-DIMM
(system max. 8GB)
Display
Dual display supported
1 x VGA
2 x HDI
1 x 18/24-bit dual-channel LVDS
I/O / Slot
2 x RS-232
1 x RS-422/485
4 x USB 2.0
2 x USB 3.0
Features
4 x USB 2.0
2 x USB 3.0
2 x RS-232
1 x RS-422/485
1 x PS/2 KB/MS
Specifications
Hardware Spec.
| System | |
|---|---|
| CPU |
Intel® mobile Core™ i7-4700EQ on-board processor with Intel® AMT 9.0 support (2.4GHz, quad-core, 6MB cache, TDP=47W)
Intel® mobile Core™ i5-4400E on-board processor with Intel® AMT 9.0 support (2.7GHz, dual-core, 3MB cache, TDP=37W) Intel® mobile Core™ i3-4100E on-board processor (2.4GHz, dual-core, 3MB cache, TDP=37W) Intel® mobile Celeron® 2000E on-board processor (2.2GHz, dual-core, 2MB cache, TDP=37W) Intel® mobile Core™ i5-4402E on-board processor with Intel® AMT 9.0 support (1.6GHz, dual-core, 3MB cache, TDP=25W) Intel® mobile Core™ i3-4102E on-board processor (1.6GHz, dual-core, 3MB cache, TDP=25W) Intel® mobile Celeron® 2002E on-board processor (1.5GHz, dual-core, 2MB cache, TDP=25W) |
| Chipset | Intel® QM87 |
| Memory |
One 204-pin 1600/1333 MHz
dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM |
| Memory Max. | 8GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 115 X 165 |
| Net Weight | 350g |
| Storage | |
| Storage | 2 x SATA :6Gb/s with 5V SATA power connector(RAID0,1 supported) |
| I/O Interface | |
| Display Output | 1 x VGA |
| 2 x HDI :up to 2500x1600 60Hz | |
| 1 x LVDS :18/24-bit dual-channel (up to 1920x1200 60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I217-LM PHY with Intel® AMT 9.0 support
LAN2: Intel® I210-AT PCIe controller |
| Audio | Description: Realtek ALC662 HD Audio codec |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 2 x Internal RS-232 :2x5 pin, p=2.0 |
| 1 x Internal RS-422/485 :1x4 pin, p=2.0 | |
| 2 x External USB 2.0 | |
| 2 x External USB 3.2 Gen1x1 | |
| 2 x Internal USB 2.0 :2x4 pin, p=2.0 | |
| 1 x PS/2 :1x6 pin | |
| Expansion | 1 x PCIe mini Card Slot :Full-size(support mSATA) |
| 1 x PCIe/104 :Type 2 slot (optional) | |
| Other Features | |
| iRIS | 1 X iRIS-1010 slot |
| TPM | 2x10 pin |
| Power | |
| Power Consumption |
12V 4.78A (Intel® Core™ i7-4770EQ 2.4GHz CPU
with 4 GB 1333 MHz DDR3 memory) |
| Power Supply |
12V only DC input
1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| NANO-QM871-i1-i7-R10 | EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4700EQ processor (47W), with VGA/Dual HDI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS |
|---|---|
| NANO-QM871-i1-i5-R10 | EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i5-4400E processor(37W) with VGA/Dual HDI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS |
| NANO-QM871-i1-i3-R10 | EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i3-4100E processor(37W) with VGA/Dual HDI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS |
| NANO-QM871-i1-C-R10 |
EPIC SBC supports Intel® 22nm 4th Generation Mobile Celeron™ 2000E processor (37W) with VGA/Dual HDI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
|
