- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
7630X3110X15592mm
-
Weight:
-
36500KGS
-
After-sales Service Provided:
-
Overseas service center available, Free spare parts, Online support, Field installation, commissioning and training
-
Max. drilling diameter:
-
600-1500mm
-
Max. drilling depth:
-
42m
-
Engine power:
-
113 kw
-
Rotary Drive torque:
-
50/102
-
Rotary Drive Speed:
-
38/20
-
Rotary Drive Motor:
-
Italy Sai
-
Crowd cylinder Max.pull:
-
100 kn
-
Crowd cylinderMax push:
-
150 kn
-
Local Service Location:
-
Turkey, France, Viet Nam, Peru, Indonesia, Mexico, Russia, Spain, Japan, Australia, Morocco, Kenya, Chile, UAE, Colombia, South Africa
-
Certification:
-
ISO 9001:2000
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HF
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
7630X3110X15592mm
-
Weight:
-
36500KGS
-
After-sales Service Provided:
-
Overseas service center available, Free spare parts, Online support, Field installation, commissioning and training
-
Max. drilling diameter:
-
600-1500mm
-
Max. drilling depth:
-
42m
-
Engine power:
-
113 kw
-
Rotary Drive torque:
-
50/102
-
Rotary Drive Speed:
-
38/20
-
Rotary Drive Motor:
-
Italy Sai
-
Crowd cylinder Max.pull:
-
100 kn
-
Crowd cylinderMax push:
-
150 kn
-
Local Service Location:
-
Turkey, France, Viet Nam, Peru, Indonesia, Mexico, Russia, Spain, Japan, Australia, Morocco, Kenya, Chile, UAE, Colombia, South Africa
-
Certification:
-
ISO 9001:2000

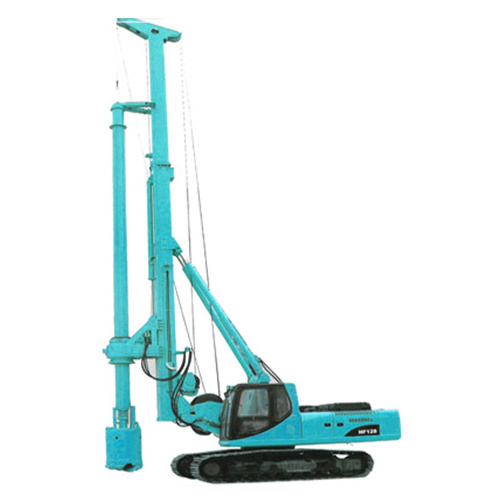

Product Description
1.The folding mast structure has the advantages of simple, great durability, saving cost and making repair more convenient.
2.Using the high position-oriented structure for the frame, which guarantees the verticality between kelly bar and ground, kes constucture more convenient, improves work efficiency, increses safty.
3.Power head adopts unique patent structure, which save cost and make repair more convenient.
4.Main windlass: Adoptin original imported hydraulic pressure motor from Italy. It has sensitivereaction and can free down, which speed can be up to 80m/min and improve the construction efficiency. Main winch lays in the cavit of te U-shape, whchlocates in the operator's right field of vision (enables operator to obseve working condition of main winch freely). This kind of situation is not only simple but also practical.
|
Drilling diameter
|
|
600-1500mm
|
|
|
Drilling depth
|
|
42m
|
|
|
|
Working dimentions
|
7630X3110X15592mm
|
|
|
|
Transport dimentions
|
15185X3110X3173mm
|
|
|
Rotary drive torque
|
|
50/102KNm
|
|
|
Rotation speed
|
|
38/20rpm
|
|
|
|
Max. push
|
150KN
|
|
|
|
Max. pull
|
100KN
|
|
|
|
Max. stroke
|
3000mm
|
|
|
|
Max. pull
|
120KN
|
|
|
|
Max. speed
|
70m/min
|
|
|
|
Max. pull
|
60KN
|
|
|
|
Max. speed
|
50m/min
|
|
|
|
Rated speed
|
113KW
|
|
|
|
Type
|
B5.9-C Cummins U.S.A
|
|
|
|
Long distance monitor system
|
Available
|
|
|
|
Drilling record system
|
Available
|
|
|
|
On car printer
|
Available
|
|
|
Hydraulic system pressure
|
|
300bar
|
|
|
|
Chassis modality
|
Available
|
|
|
|
Max.travel speed
|
2.0km/h
|
|
|
|
Min. ground clearance
|
500mm
|
|
|
|
Track width
|
800mm
|
|
|
|
Free adjustment forwares/backwares
|
0-93°
|
|
|
|
Free adjustment left/right wards
|
±3°
|
|
|
Machine weighth
|
|
36500kg
|
|
