Quick Details
-
Voltage:
-
as customer's required
-
Power:
-
customization
-
Dimension(L*W*H):
-
as customer's required
-
Weight (KG):
-
300
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Metal coating field
-
Coating color:
-
Multi color
-
Components:
-
pretreatment+Drying oven+Powder coating Booth+Booth
-
Power supply:
-
220V/110V
-
Control mode:
-
Automatic +alarm System
-
Size:
-
Customized
-
Technology:
-
Electrostatic Powder Spraying
-
Control System:
-
PLC+Touch Screen Automatic
-
ODM&OEM:
-
Welcome
Quick Details
-
Machine Type:
-
Powder Coating Line, powder coating line
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Colin
-
Voltage:
-
as customer's required
-
Power:
-
customization
-
Dimension(L*W*H):
-
as customer's required
-
Weight (KG):
-
300
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Metal coating field
-
Coating color:
-
Multi color
-
Components:
-
pretreatment+Drying oven+Powder coating Booth+Booth
-
Power supply:
-
220V/110V
-
Control mode:
-
Automatic +alarm System
-
Size:
-
Customized
-
Technology:
-
Electrostatic Powder Spraying
-
Control System:
-
PLC+Touch Screen Automatic
-
ODM&OEM:
-
Welcome
The working process for this line is, loading --- spray type pre-treatment --- water drying --- automatic powder coating --- automatic powder curing --- cooling --- unloading.
Automatic chain system: 2 sets driving system and 2 tensioning system. Chain can bearing 100kg/single point. Chain speed, 2.5m/min (you can adjust according your need). Total length for the chain, 295m

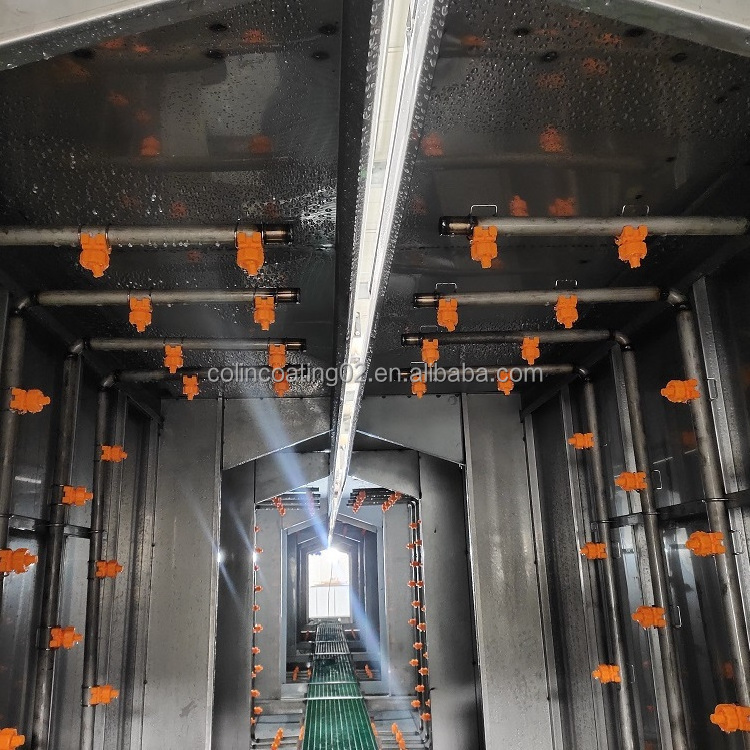

Pre-treatment system: Stainless steel spray type.
Steps are, pre-degreasing --- degreasing --- water washing 1 --- pure water washing 2 --- nano ceremic --- water washing 1 --- pure water washing 2
Automatic water drying oven: this oven only have the temperature for 120 Celsius.
Automatic powder coating booth: the cyclone system will help you to recycle the 99.5% of the powder, and the material is PP type, it can allow you to change the color just in 15min. And the reciprocator and automatic gun will help you to do the automatic powder coating. There will be also 2 manual working station to making up the powder coating for some dead corner.
Automatic powder curing oven: powder curing oven have the temperature for 180~230 Celsius. The work piece can curing 20~30min just according your need.
| Work Piece | |
| Work piece name | Fridge, air conditioner, car parts and so on |
| Work piece max size | 2500*800*2000mm (L*W*H) |
| Front door size | 2400*2440mm (W*H) |
| Max weight per hanger | 200kg/hanger |
| Pre-treatment System | |
| Material for pre-treatment | Stainless steel SUS 304 |
| Working process: | Pre-degreasing --- degreasing --- water washing 1 --- pure water washing 2 --- nano ceremic --- water washing 1 --- pure water |
| washing 2 | |
| Water Drying Oven | |
| Size | 30000*1550*6650mm ( L*W*H ) |
| Material | 100mm rock wool panel for the oven temperature 120 Celsius |
| Heating system | 1 set natural gas burner, 430000kcal/h, with 1 set 7.5kw high temperature fan. |
| Powder Coating Booth | |
| Size | 7000*2000*3350mm (L*W*H) |
| Powder recycle system | One cyclone system, 1 set 30kw circulation fan, 24 pieces filter cartridge, 2 sets of automatic reciprocators, automatic gun, manul powder coating gun |
| Automatic Powder Oven | |
| Size | 30000*4850*6650mm (L*W*H) |
| Material | 150mm rock wool panel for the oven temperature 180~230 Celsius |
| Heating system | 2 sets natural gas burner, 600000kcal/h for each, with 1 set 15kw high temperature fan. |
