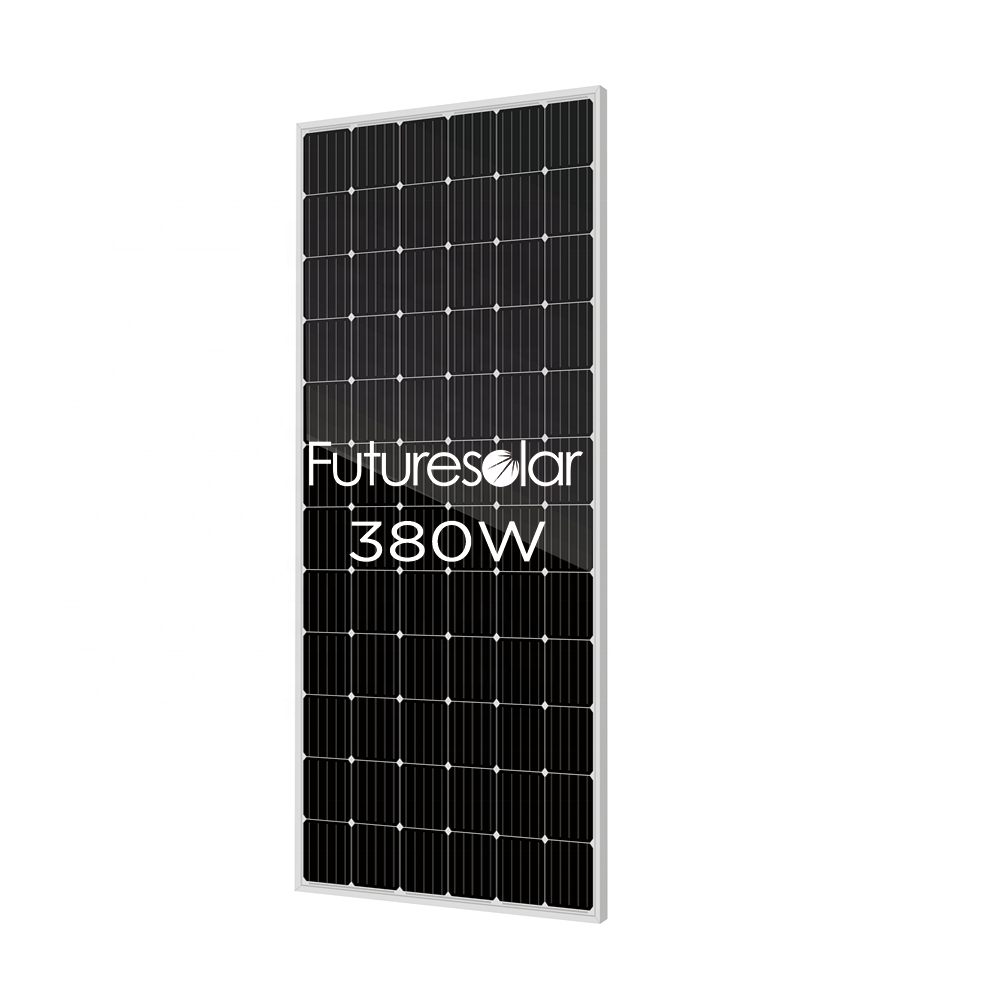

high quality efficiency 340w 360w 370w 380w pv monocrystalline silicon roof solar panels 350 watt

high quality efficiency 340w 360w 370w 380w pv monocrystalline silicon roof solar panels 350 watt

FOB Reference Price: Get Latest Price

≥20 Pieces

US $0.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Solar cell:: Mono 156*156 Cell

Warranty:: 25 Years Output Power Guarantee

Frame:: Anodized Aluminium Alloy

Color:: Standard/Full Black/Super Black

Cable:: 900mm PV Cable

Junction Box:: IP67 Rated

Connector:: MC4

Application:: Solar Power System

Quick Details

Type:: Standard Solar Panel

Place of Origin:: China

PV Module Dimention:: 1956*992*40mm

Solar cell:: Mono 156*156 Cell

Warranty:: 25 Years Output Power Guarantee

Frame:: Anodized Aluminium Alloy

Color:: Standard/Full Black/Super Black

Cable:: 900mm PV Cable

Junction Box:: IP67 Rated

Connector:: MC4

Application:: Solar Power System

Product Description

Moduel	FSM350M-72	FSM360M-72	FSM370M-72	FSM380M-72
Rated Maximum Power at STC	350	360	370	380
Open Circuit Voltage(Voc/V)	47.6	48.0	48.4	48.6
Maximum Power Voltage(Vmp/V)	39.1	39.5	39.9	40.3
Short Circuit Current(Isc/A)	9.45	9.51	9.63	9.73
Maximum Power Current(Imp/A)	9.04	9.16	9.28	9.44
Module Efficiency(%)	18.04	18.30	18.81	19.80
Power Tolerance	0~+3%
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

Detailed &Production

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

Strict QC

100% Cells Sorting

Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.

100% Inspection

Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.

100% EL Testing

Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.

100% "Zero"

Defects Objective Before Shipment.

Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!

100% Optimal Testing

Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.

Professional Packing

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

Factory show
