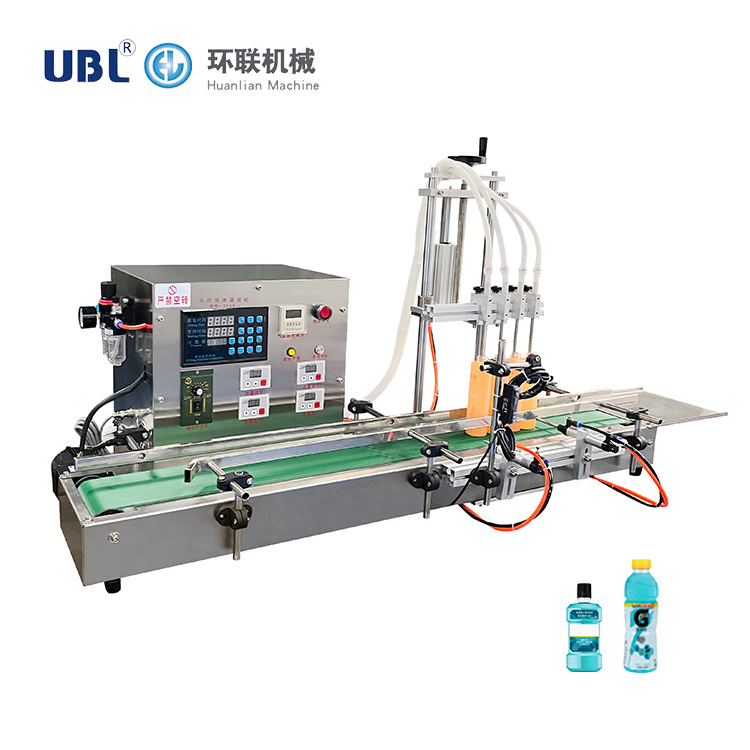

UBL Factory Automatic Desktop 4 Heads Juice Drink Glass Bottle Filling Machines

UBL Factory Automatic Desktop 4 Heads Juice Drink Glass Bottle Filling Machines

FOB Reference Price: Get Latest Price

≥1 Sets

US $2500

≥3 Sets

US $2000

≥5 Sets

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ±1%

Voltage:: 220V

Place of Origin:: Guangdong, China

Brand Name:: UBL

Dimension(L*W*H):: 1200*900*680mm

Weight:: 70 KG

Product name:: Desktop two nozzles automatic Paste and liquid filling machine

Function:: Lotion Cosmetic Jam Sauce Paste Honey Filling

Bottle type:: honey bottle/jam bottle/round bottle

Keywords:: Fillng Machine

Filling speed:: 400-1800 BPH

Advantage:: small in size, saves freight, is convenient to move

Usage:: Beverage Packaging

Filling range:: 50-500ml

Processing Types:: Automatic Bottle Filling Line

Power:: AC 220V ; 50/60HZ ;120W

Quick Details

Machinery Capacity:: 4000BPH

Packaging Material:: Glass, Plastic, Wood

Filling Material:: Beer, Juice, Milk, Water, Other

Filling Accuracy:: ±1%

Voltage:: 220V

Place of Origin:: Guangdong, China

Brand Name:: UBL

Dimension(L*W*H):: 1200*900*680mm

Weight:: 70 KG

Product name:: Desktop two nozzles automatic Paste and liquid filling machine

Function:: Lotion Cosmetic Jam Sauce Paste Honey Filling

Bottle type:: honey bottle/jam bottle/round bottle

Keywords:: Fillng Machine

Filling speed:: 400-1800 BPH

Advantage:: small in size, saves freight, is convenient to move

Usage:: Beverage Packaging

Filling range:: 50-500ml

Processing Types:: Automatic Bottle Filling Line

Power:: AC 220V ; 50/60HZ ;120W

Attention:

The price is not a one-off price, because the shape and size of the customer's bottle product are different from the material,precision, production capacity and other requirements. As a result, the equipment is different in R&D design, production assembly and debugging, raw materials, etc., so there will be differences in price.

If you want to get a specific quotation, please contact customer service, thank you for your understanding.

Products Description

Desktop Automatic Gear Pump Liquid Filling Machine

Products Detail

CNC panel

1.Time quantification is accurate to 0.0 seconds, more accurate

2. Flexible setting of various filling modes

3. With power failure memory

4. Humanized operation, worry-free filling

Flow regulation

1. Independent flow regulation for each head

2. Quantitative precision

3.E asy to adjust

4. Convenient and fast

Cooling fan

1. Rapid heat dissipation

2. Ensure stable performance of internal components during operation and longer use

Receiving tray

1. Enlarge and thicken the receiving tray

2. More finished products to collect

3.S trong and durable

Gear pump

1. High precision gear

2. Self-priming is stable

3.N o noise

4. Precise filling

Submersible Filling Rack

1. Dive depth, height, width can be adjusted

2. Suitable for various sizes of bottles

Photoelectric sensor head

1. Automatic induction filling,

no bottle will not be filled

2. Automatic bottle feeding

3.A utomatic filling

4. Automatic bottle change

Leather conveyor belt

1. High quality PVC belt conveyor belt, wear-resistant, durable, no deformation

2. The conveying is stable and smooth, and the bottle does not deviate and pour

3. For special-shaped bottles, the conveyor belt start-stop technology is added. During filling, the conveyor belt automatically stops and starts to convey automatically after filling, preventing the bottle from falling over, and filling and moving the bottle more smoothly.

Product Paramenters

Machine name	Submersible desktop automatic liquid filling machine	Traffic speed	2.5 liters/head/min (flow size can be customized)
Power	300W	Working power	220V(Customizable 110V)
Machine material	Stainless steel	Pump head type	Gear pump
Machine size	1456070cm(Customized as actual)	Number of filling heads	Four heads (can be customized single head, multi head)
Motor type	DC motor	Error	±1%(depending on the concentration of water)
Delay range	0.015-999.95	Count range	1-59999 times
Machine weight	By actual	Filling head diameter	6mm (1 2 3 4 5 8 mm can be customized)
Air pressure	0.4-0.6MPA	Conveyor belt length	1.22 meters (can be customized 1.5 meters, 2.44 meters)
