Quick Details
-
Suspended Ceiling angle:
-
suspended ceiling main tee
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
suspended ceiling main tee
-
Model Number:
-
suspended ceiling main tee
-
Suspended Ceiling angle:
-
suspended ceiling main tee
Exposed ceiling grid
(also named ceiling T grid,ceiling T bar,ceiling suspension system) include main tee, cross tee and wall angle.
24*32,24*38 gI channel for false ceiling work is the indispensible building decoration material used in the ceiling suspension system. It is applied for the installation of various ceiling panels like metal ceiling,miner fiber board, gypsum board, PVC gypsum board and so on.
Detailed products information:
1,Materials :High quality galvanized steel and pre-painted steel.
2,Pattern :Metric system,British impiral system and customized system.
Specifications:
1.Main tee
a.23x32x3,000/3,600mm
b.23x29x3,000/3,600mm
2.Cross tee
a.23x32x1,200mm
b.23x29x1,200mm
c.23x32x600mm
d.23x29x600mm
3.Wall angle
a.24x24x3,000/3,600mm
b.24x22x3,000/3,600mm
4.The thickness can be 0.23~0.40mm.
5.The length can be produced in accordance with customers' requirements.
6.Advantages: Fireproof, humidity resistance, ametabolic.
7.Have passed CE-Certificate and ISO9001 International quality system certificate.
Customized ceiling grid order acceptable.

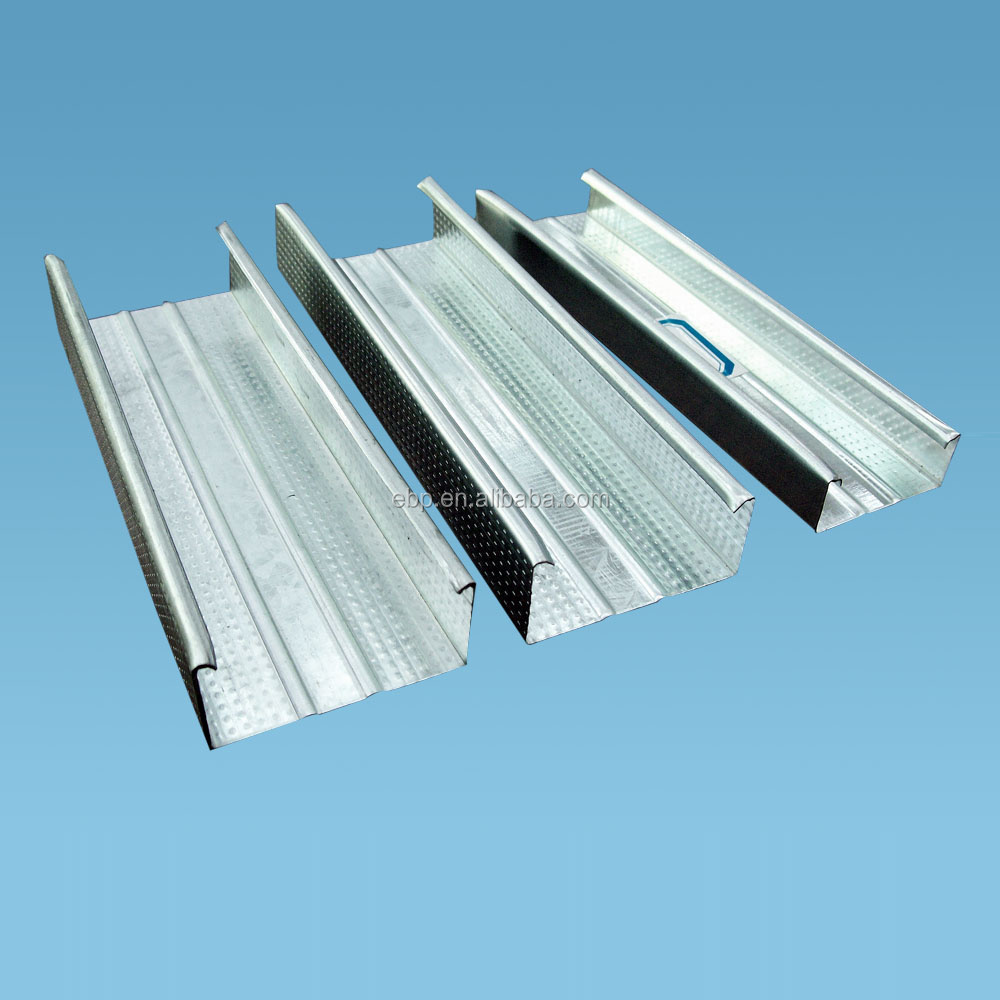

STANDARD SIZE FOR CD50 SUSPENSION SYSTEM PRODUCTS
|
Item |
Description |
Width (mm) |
Hight 1(mm) |
Hight 2 (mm) |
Thickness (mm) |
Length |
|
1 |
CD50 CHANNEL |
45 , 48 ,50 |
12 |
12 |
0.40~ 1.50mm |
up to 11.85 meters |
|
16 |
16 |
0.40~ 1.50mm |
up to 11.85 meters |
|||
|
17 |
17 |
0.40~ 1.50mm |
up to 11.85 meters |
|||
|
18 |
18 |
0.40~ 1.50mm |
up to 11.85 meters |
|||
|
19 |
19 |
0.40~ 1.50mm |
up to 11.85 meters |
STANDARD SIZE FOR C CHANNEL SUSPENSION SYSTEM PRODUCTS
|
Item |
Description |
Width (mm) |
Hight 1(mm) |
Hight 2 (mm) |
Thickness (mm) |
Length |
|
1 |
C CHANNEL |
38 , 50 ,60 |
9 |
9 |
0.40~ 1.50mm |
up to 11.85 meters |
|
12 |
12 |
0.40~ 1.50mm |
up to 11.85 meters |
|||
|
15 |
15 |
0.40~ 1.50mm |
up to 11.85 meters |
|||
|
20 |
20 |
0.40~ 1.50mm |
up to 11.85 meters |
|||
|
27 |
27 |
0.40~ 1.50mm |
up to 11.85 meters |
Tips
If you have any special requirement, please advise us the length, width, height and the thickness, also the quantity. Thanks.
| Picture | Product | Item | Size 1 | Size2 |
Packing (pcs/carton) |
Color |
|
Plain T-GRID |
Main tee | 24*38*3000 | 24*32*3000 | 25 | white/black |
| Cross tee | 24*26*1200 | 24*24*1200 | 50 | white/black | ||
| Cross tee | 24*26*600 | 24*24*600 | 75 | white/black | ||
| Wall angle | 22*22*3000 | 24*24*3000 | 50 | white/black | ||
|
Slotted T-GRID |
Main tee | 15*42*3000 |
15*32*3000 |
25 | white/black |
| Cross tee | 15*42*1200 |
15*32*3,000 |
50 | white/black | ||
| Cross tee | 15*42*600 | 15*32*600 | 50 | white/black | ||
|
Wall angle |
22*22*3000 |
22*22*3000 |
50 |
white/black |
||
|
Grooved T-GRID |
Main tee | 15*32*3000 |
23*29*3000 |
25 |
white/black |
| Cross tee | 15*32*1200 |
23*29*1200 |
50 | white/black | ||
| Cross tee | 15*32*600 | 23*29*600 | 50 | white/black | ||
|
Wall angle |
22*22*3000 | 24*24*3000 | 50 |
white/black |
||
