Quick Details
-
Application:
-
Smart Industry, Smart Agriculture
-
Series:
-
Camera Module
-
Features:
-
Mini Camera, Night Vision, Face Recognition
-
Mounting Type:
-
MIPI Interface
-
Description:
-
Industrial Camera Module
-
Product name:
-

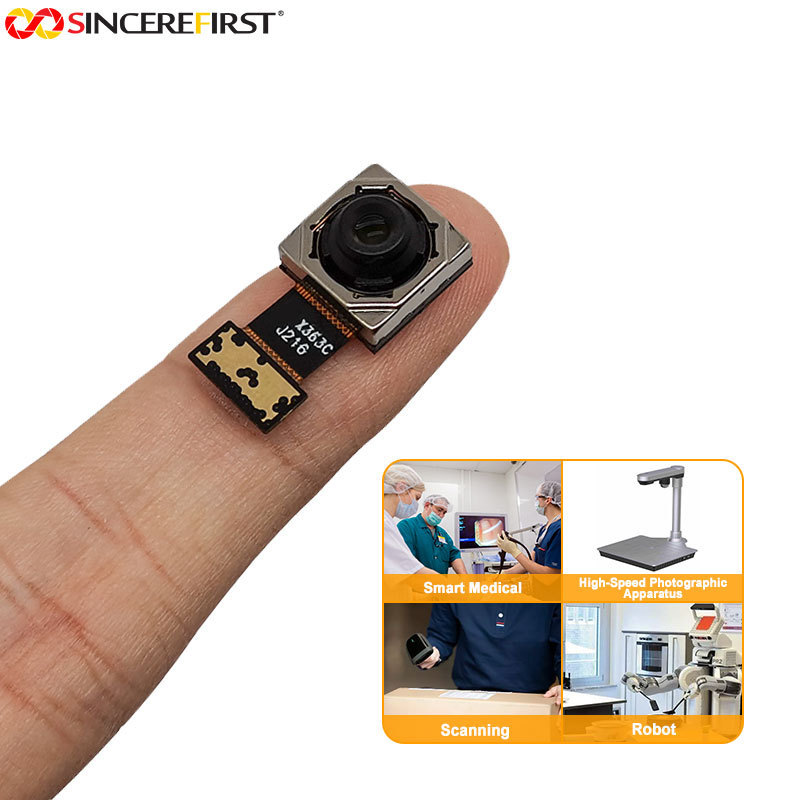

Sony IMX230 CMOS Sensor 21mp Pdaf Ois Ultra Hd 4K Camera Module
-
Image Sensor:
-
Sony IMX230 Sensor
-
Resolution:
-
21MP
-
Array Size:
-
5408x4112
-
Lens Size:
-
1/2.4 inch
-
View Angle:
-
79.1°
-
Network:
-
SDK
-
Certification:
-
CE RoHS Reach
-
Interface:
-
MIPI
-
Focus:
-
Auto Focus Lens
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sincere First
-
Model Number:
-
SF1X230AY31C
-
Application:
-
Smart Industry, Smart Agriculture
-
Series:
-
Camera Module
-
Features:
-
Mini Camera, Night Vision, Face Recognition
-
Mounting Type:
-
MIPI Interface
-
Description:
-
Industrial Camera Module
-
Product name:
-
Sony IMX230 CMOS Sensor 21mp Pdaf Ois Ultra Hd 4K Camera Module
-
Image Sensor:
-
Sony IMX230 Sensor
-
Resolution:
-
21MP
-
Array Size:
-
5408x4112
-
Lens Size:
-
1/2.4 inch
-
View Angle:
-
79.1°
-
Network:
-
SDK
-
Certification:
-
CE RoHS Reach
-
Interface:
-
MIPI
-
Focus:
-
Auto Focus Lens
Products Description
|
Sensor:
|
IMX230
|
Pixels:
|
21MP
|
|||
|
F.NO
:
|
2.4
|
Max. Resolution
:
|
5344 H × 4016 V
|
|||
|
View Angle
:
|
DFOV79.1°
|
TV Distortion
:
|
<1.5%
|
|||
|
Focus Range
:
|
10cm~infinity
|
IR Filter
:
|
650nm
|
|||
|
SF1X230AY31C
IMX230 Description:
IMX230 is a diagonal 7.487mm (Type 1/2.4) 21 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.5 V, digital 1.1 V and 1.8 V for input/output interface and achieves low power consumption. IMX230 is designed for use in cellular phones or tablet devices*1. SF1X230AY31C IMX230 Features: ◆Back-illuminated and stacked CMOS image sensor Exmor RSTM ◆Single Frame High Dynamic Range (HDR) with equivalent full pixels. ◆High signal to noise ratio (SNR). ◆Full resolution @24fps (Normal / HDR). 4K2K @30fps (Normal / HDR) 1080p @60fps (Normal / HDR) ◆Output video format of RAW10/8, COMP8/6. ◆Pixel binning readout and H/V sub-sampling function. ◆Advanced Noise Reduction (Chroma noise reduction and RAW noise reduction). ◆Independent flipping and mirroring. ◆CSI-2 serial data output (MIPI 2lane/4lane, Max . 1.5Gbps/lane, D-PHY spec. ver. 1.1 compliant) ◆2-wire serial communication. ◆Two PLLs for independent clock generation for pixel control and data output interface. ◆Dynamic Defect Pixel Correction. ◆Zero shutter lag. ◆Power-on reset function ◆Dual sensor synchronization operation. ◆9K bit of OTP ROM for users. ◆Built-in temperature sensor MIPI Camera Module, MIPI Camera Board, Cam era Sensor Module, Phone Camera Module As our manufacturing facilities provide optics and camera modules design service and manufacturing of electro-optical subsystem, optical lens, camera module, image processing and laser sensing. We dispose of an unsurpassed design and development capacity, comprising an in-house optics & photonics division, an hardware division and an software integration division making us the ideal choice for clients who wish to outsource crucial designs and manufacturing to a highly qualified and trusted partner. As the camera module structure, we divide into 3 main sections: 1. Image Sensor 2. Camera Lens Module + Optical Filter 3. Sensor Driver and Interface FPC Camera Module Application Areas Camera Module For Imaging And Vision Solutions, Integrated Complex And Customized Technology, Machine Vision, Intelligent Systems, Future Security, Optical Technology Solutions, Camera Module Customized Solutions, Internet Of Things End-to-end Solution, Iris Recognition Technology, Iris Solutions, Face Recognition, VR High End Camera Solutions, Smart Home Solutions, Intelligent Hardware Solutions, Professional Camera Modules, Specially Designed For Small Uav, Airborne Camera Modules, Uav Solutions, Uav Special Modules, Drone Solutions, Aerial Filming Solutions, Optical Technology Solutions, Mobile Phone Camera Module, Camera Solutions, Optronics Solutions Imaging Technology Solutions, Video Technology Solutions, Optoelectonic Research, Infrared Imagers For Industry, Embedded Systems Solutions Main Developmet Board, Graphics Processing Unit, System Adaption Main Developmet Board: Arduino, ESP32, Raspberry Pi, NVIDIA Graphics Processing Unit: Ambarella, Rockchip, MediaTek, Qualcomm, NVIDIA, ATI System Adaption: Self-developed Software, Android, Window, MAC-IOS
