Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China
-
Brand Name:
-
Flash Laser
-
Dimension(L*W*H):
-
76*33*58cm
-
Weight (KG):
-
55 KG
-
Core Components:
-
laser source, mainboard, scan head, field lens
-
Product name:
-
mini 3D 20W 30W raycus metal fiber color laser marking machine
-
Key words:
-
portable fiber laser marking machine
-
MOQ:
-
1 Set
-
Laser Wavelength:
-
1064nm
-
Standard Marking Area:
-
100mmx100mm
-
Adjust Marking Area:
-
150x150200mmx200mm/30mm/0x300mm
-
Marking Depth:
-
≤1mm(based on different laser power)
-
Minimum Linear Width:
-
0.01mm
-
Minimum Character:
-
0.15mm
-
Repeat Positioning Accuracy:
-
±0.002mm
Quick Details
-
Engraving Area:
-
110mm*110mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
Linear Speed ≤7000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China
-
Brand Name:
-
Flash Laser
-
Dimension(L*W*H):
-
76*33*58cm
-
Weight (KG):
-
55 KG
-
Core Components:
-
laser source, mainboard, scan head, field lens
-
Product name:
-
mini 3D 20W 30W raycus metal fiber color laser marking machine
-
Key words:
-
portable fiber laser marking machine
-
MOQ:
-
1 Set
-
Laser Wavelength:
-
1064nm
-
Standard Marking Area:
-
100mmx100mm
-
Adjust Marking Area:
-
150x150200mmx200mm/30mm/0x300mm
-
Marking Depth:
-
≤1mm(based on different laser power)
-
Minimum Linear Width:
-
0.01mm
-
Minimum Character:
-
0.15mm
-
Repeat Positioning Accuracy:
-
±0.002mm
30W 50W Fiber laser marking machine cheap price for metal stainless steel and carbon steel or Brass and aluminum rings with JPT

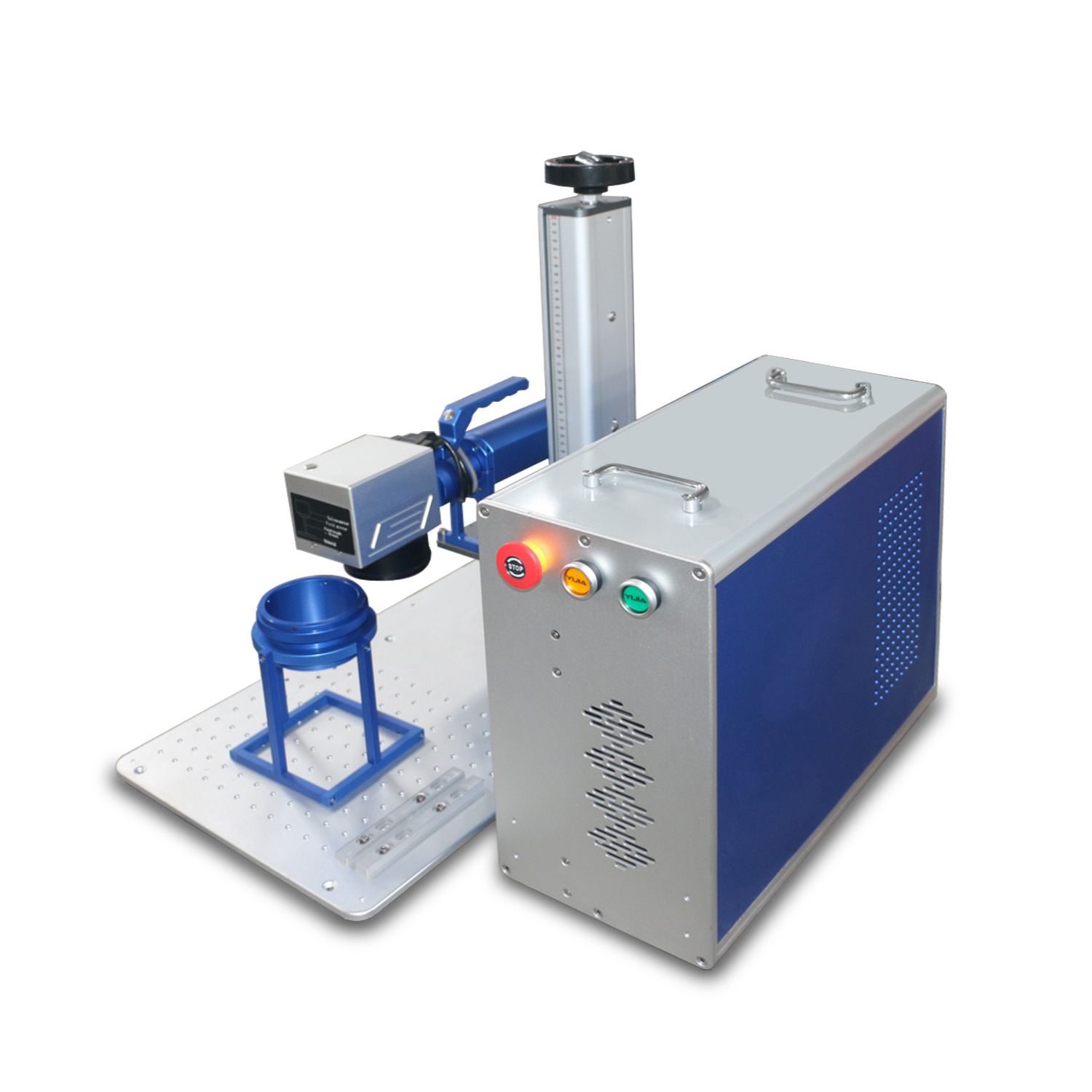

Product Picture
Techini Parameters
| Machine Type | mini portable 20w fiber laser marking machine |
| Laser Wavelength | 1064nm |
| Frequency | 20~100 KHZ |
| Standard Marking Area | 100mmx100mm |
| Adjust Marking Area | 150x150mm/200mmx200mm/300x300mm |
| Marking Depth | ≤1mm(based on different laser power) |
| Marking Speed | 800 standard characters per second |
| Marking Linear Speed | ≤7000mm/s |
| Minimum Linear Width | 0.01mm |
| Minimum Character | 0.15mm |
| Repeat Positioning Accuracy | ±0.002mm |
| Beam Quality | M²<1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| Lifespan of Fiber Laser Module | 100000 working hours |
| Graphic Format Supported | PLT,PCX,DXF,BMP,AI,etc |
| Supply Voltage | 110V/220V, 50-60Hz |
| Operating System | Windows XP, Vista, 7, 8, 10, etc |
| Cooling Mode | Air cooling |
| Software | Ezcad |
| Package | Standard export plywood case |
| Machine Dimension | 76*33*58cm |
| Gross Weight | 53 kgs |
| Delivery Time | 3 days |
