Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DELIXI
-
Model Number:
-
DZ47s
-
Rated Frequency (Hz):
-
50HZ
-
Number of Pole:
-
2
-
Product name:
-
Thermal Switch 220V 230V DC AC Miniature Circuit Breaker
-
Pole:
-
1P/2P/3P/4P
-
Rated frequency:
-
50Hz
-
Rated voltage:
-
230V/400AC
-
Breaking capacity:
-
10KA
-
Insulation voltage Ui:
-
500V
-
Protection degree:
-
IP20
-
Material:
-
Flame retardant material ABS, Copper coil,Silver contacts
-
Certificate:
-
CCC,CB,CE,SEMKO,RoSH
-
Rated Frequency:
-
50/60hz
Quick Details
-
Breaking Capacity:
-
10KA
-
Rated Voltage:
-
230V/400AC
-
Rated Current:
-
10A~63A
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DELIXI
-
Model Number:
-
DZ47s
-
Rated Frequency (Hz):
-
50HZ
-
Number of Pole:
-
2
-
Product name:
-
Thermal Switch 220V 230V DC AC Miniature Circuit Breaker
-
Pole:
-
1P/2P/3P/4P
-
Rated frequency:
-
50Hz
-
Rated voltage:
-
230V/400AC
-
Breaking capacity:
-
10KA
-
Insulation voltage Ui:
-
500V
-
Protection degree:
-
IP20
-
Material:
-
Flame retardant material ABS, Copper coil,Silver contacts
-
Certificate:
-
CCC,CB,CE,SEMKO,RoSH
-
Rated Frequency:
-
50/60hz
Thermal Switch 220V 230V DC AC Miniature Circuit Breaker
1. Brief descr
iption o
f Thermal Switch 220V 230V DC AC Miniature Circuit Breaker
A.Applicable to 50Hz,AC230V/400V low-voltage distribution system
B.Can be used to distribute electric energy, less frequent start asynchronous motor, to protect the power lines and the motor can automatically cut off the circuit, when they occur in severe overload or short circuit and under voltage fault combination, its function is equivalent to fuse type switch with less thermal relay.
2. Functions of Thermal Switch 220V 230V DC AC Miniature Circuit Breaker
A. Protect from overload, short circuit, under voltage protection
B. Control
C. Isolation
3. Main Specification of Thermal Switch 220V 230V DC AC Miniature Circuit Breaker
|
Product description |
50Hz AC230V/400V low-voltage distribution system |
||||
|
Protection of circuits against overload currents |
|||||
|
Protection of circuits against short-circuir currents |
|||||
|
Control, isolation |
|||||
|
Clear indicating by mechanical indicator window |
|||||
|
Certification |
CCC,CB,CE,SEMKO,RoSH |
||||
|
Standard |
IEC 60947-2 / GB14048.2 |
||||
|
Technical parameter |
Refer to the table below |
||||
|
Feature |
High Breaking Capacity |
||||
|
Machine instructions window |
|||||
|
Flame retardant material |
|||||
|
Ratings |
|||||
|
Rate Current(A) |
Breaking Capacity(KA) |
Poles |
accessories |
||
|
63 80 100 125 |
10 |
1P 2P 3P 4P |
MX SD MX+OF |
||
|
Impulse withstand voltage |
4KV |
||||
|
Rated insulation voltage |
500V |
||||
|
temperature |
(-5 ℃ ~+40 ℃ ) |
||||
|
Electrical life |
8500times |
||||
|
Mechanical life |
1500times |
||||
|
Protection degree |
IP20 |
||||
|
Type Of Assembly |
FOR 35mm and below |
||||
|
installation |
|||||
|
Current A |
screw |
rated torque(N.m) |
ultimate torque(N.m) |
standard torque (N.m) |
|
|
6-125 A |
M7 |
4 |
5.5 |
3.5 |
|
link1: delixi good quality DZ47 mcb
link2: delixi good quality RCBO
link3: delixi good quality distribution board
link4: delixi good quality 3P/4P contactor
link5: delixi good quality voltage stabilizer
4. Packing of Thermal Switch 220V 230V DC AC Miniature Circuit Breaker
|
DZ47S-1P |
108 PCS/CTN |
|
DZ47S -2P |
54 PCS/CTN |
|
DZ47S -3P |
36 PCS/CTN |
|
DZ47S -4P |
27 PCS/CTN |

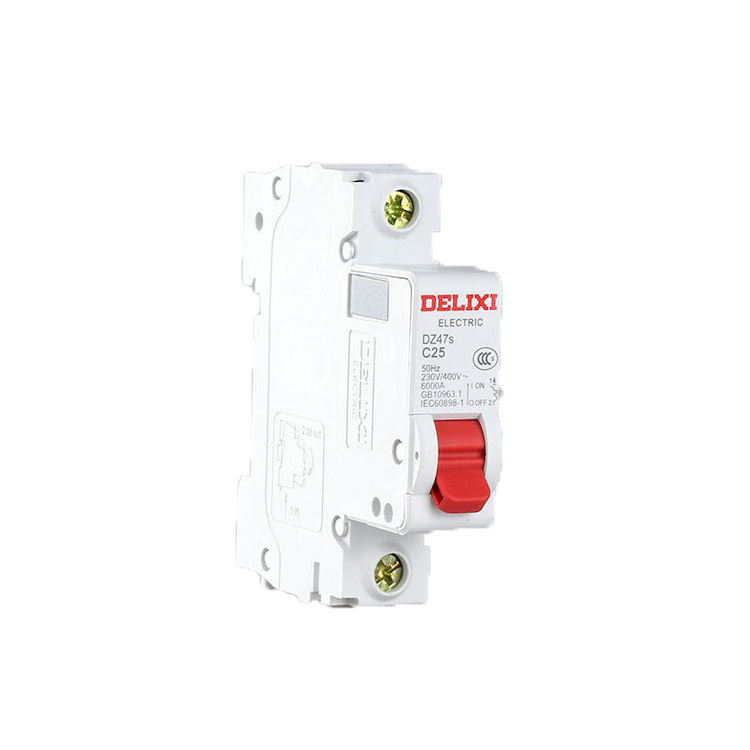

6 . Pictures show of Thermal Switch 220V 230V DC AC Miniature Circuit Breaker
