Quick Details
-
Max. Spindle Speed (r.p.m):
-
3000 r.p.m
-
Width of bed (mm):
-
500 mm
-
Spindle Motor Power(kW):
-
11KW
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
170 mm
-
Travel (Z Axis)(mm):
-
350 mm
-
Place of Origin:
-
Shanghai, China
-
Dimension(L*W*H):
-
2200*1600*1850
-
Brand Name:
-
DRC
-
Model Number:
-
TCK36A
-
Voltage:
-
220/380
-
Weight (KG):
-
3000
-
Slant Bed Cnc Lathe:
-
High Rigidity Slant Bed Cnc Lathe Tck36a Turning Machine
-
Maximum turning diameter of bed:
-
360mm
-
Maximum turning diameter of cross slide:
-
140mm
-
Maximum processing length:
-
350mm
-
Maximum machining diameter (disk type):
-
400mm
-
Standard chuck specifications:
-
10 inch Bedford/Taiwan
-
Hydraulic knife tower:
-
8 station(Optional)12
-
X/Z axis maximum stroke:
-
170/350mm
-
Spindle speed:
-
3000rpm
-
Cutting feed rate:
-
1-15000mm/min Tck36a Cnc Turning Center
Quick Details
-
Type:
-
TURNING CENTER
-
Max. Length of Workpiece (mm):
-
500
-
Year:
-
2022
-
Max. Spindle Speed (r.p.m):
-
3000 r.p.m
-
Width of bed (mm):
-
500 mm
-
Spindle Motor Power(kW):
-
11KW
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
170 mm
-
Travel (Z Axis)(mm):
-
350 mm
-
Place of Origin:
-
Shanghai, China
-
Dimension(L*W*H):
-
2200*1600*1850
-
Brand Name:
-
DRC
-
Model Number:
-
TCK36A
-
Voltage:
-
220/380
-
Weight (KG):
-
3000
-
Slant Bed Cnc Lathe:
-
High Rigidity Slant Bed Cnc Lathe Tck36a Turning Machine
-
Maximum turning diameter of bed:
-
360mm
-
Maximum turning diameter of cross slide:
-
140mm
-
Maximum processing length:
-
350mm
-
Maximum machining diameter (disk type):
-
400mm
-
Standard chuck specifications:
-
10 inch Bedford/Taiwan
-
Hydraulic knife tower:
-
8 station(Optional)12
-
X/Z axis maximum stroke:
-
170/350mm
-
Spindle speed:
-
3000rpm
-
Cutting feed rate:
-
1-15000mm/min Tck36a Cnc Turning Center
Product Description

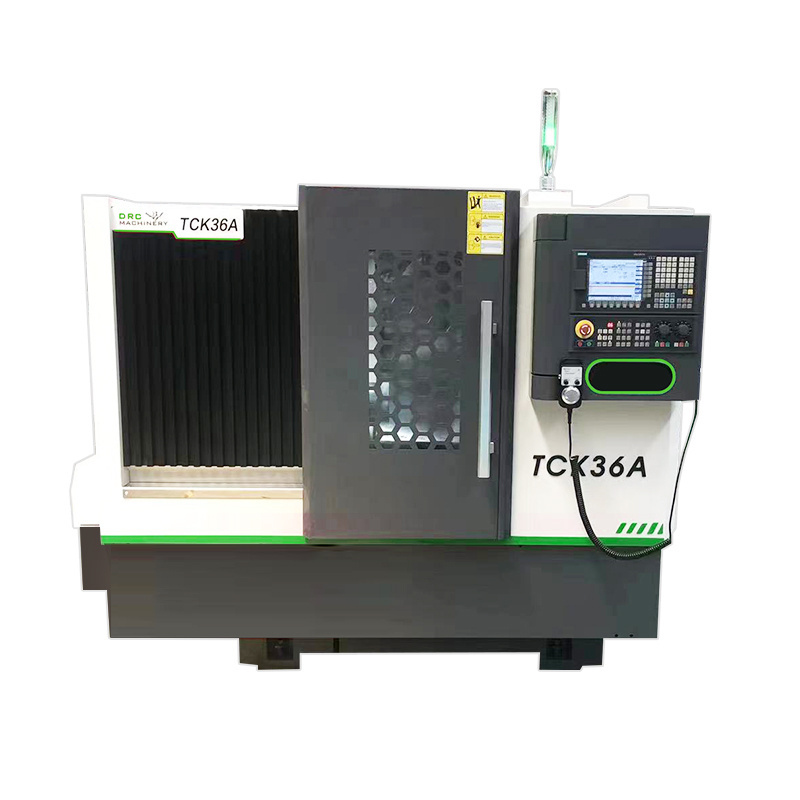

High Rigidity Slant Bed Cnc Lathe Tck36a Turning Machine
High Rigidity Slant Bed CNC Lathe TCK36A Turning Machine
High Precision CNC Turning Lathe Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Slant Bed Cnc Lathe Application :
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
|
Specifications
|
Units
|
TCK36A
|
|
Swing over bed
|
mm
|
360
|
|
Swing over cross slide
|
mm
|
140
|
|
Guide width
|
mm
|
-
|
|
Max.Work piece Length
|
mm
|
350
|
|
Spindle bore
|
mm
|
48/56
|
|
Spindle bore taper
|
|
A2-5
|
|
Spindle speed steps
|
-
|
Stepless
|
|
Spindle speed range
|
rpm
|
4000
|
|
Turret/tool post
|
-
|
Hydraulic 8 position
|
|
Tool size
|
mm
|
20*20
|
|
X axis travel
|
mm
|
170
|
|
Z axis travel
|
mm
|
350
|
|
X axis rapid traverse
|
mm/min
|
18000
|
|
Z axis rapid traverse
|
mm/min
|
18000
|
|
Tailstock quill diameter
|
mm
|
65
|
|
Tailstock quill taper
|
-
|
MT4
|
|
Tailstock quill travel
|
mm
|
70
|
|
Main spindle motor
|
kw
|
5.5
|
|
Weight
|
kg
|
2400
|
|
Dimension
|
mm
|
2200x1600x1850
|
