Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
Power Cable
-
Size:
-
1.5mm2-630mm2
-
Product name:
-

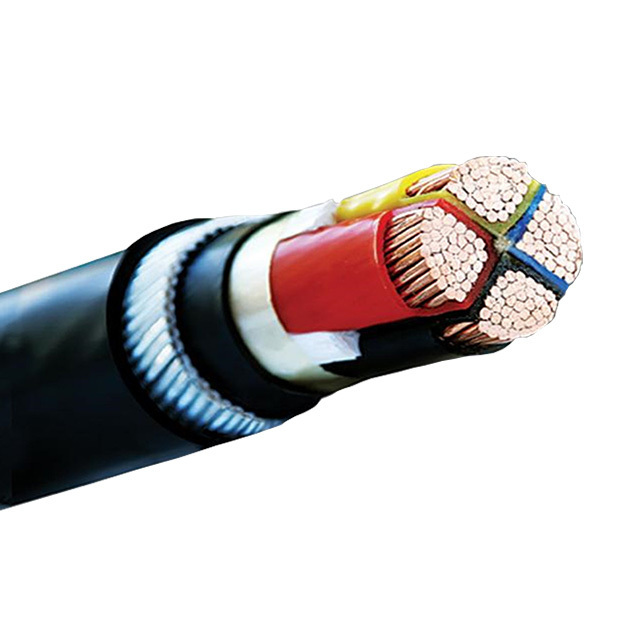

Xlpe insulated PVC sheathed power cable
-
Material:
-
copper +XLPE+PVC
-
MOQ:
-
100m
-
Armour:
-
SWA STA
-
Certificate:
-
ISO9001/CCC
-
Package:
-
seaworthy packing
-
Rated Voltage:
-
0.6/1kv
-
Core:
-
multi core
-
Warranty:
-
100%quanlified
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
Power Cable
-
Size:
-
1.5mm2-630mm2
-
Product name:
-
Xlpe insulated PVC sheathed power cable
-
Material:
-
copper +XLPE+PVC
-
MOQ:
-
100m
-
Armour:
-
SWA STA
-
Certificate:
-
ISO9001/CCC
-
Package:
-
seaworthy packing
-
Rated Voltage:
-
0.6/1kv
-
Core:
-
multi core
-
Warranty:
-
100%quanlified
Product Paramenters
Product Feature:
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Insulation: XLPE/PVC/LSF/Fire Resistant
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-630mm2
Standard: IEC 60502, BS 7870,BS5467,BS6724,GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
We can customize the size according to your requirement
Product Parameter:
|
Cross Section
|
Stranding
|
Approx Weight
|
Approx Overall Diameter
|
Gland Size
|
Nom. Max. DC-resist conductor 20° C
|
Current rating laid direct
|
|
(mm²)
|
(mm)
|
KG/KM
|
(mm)
|
(mm)
|
(Ohm/km)
|
(Amp)
|
|
4 x 1.5
|
7/0.53
|
351
|
12.88
|
20s
|
12.1
|
32
|
|
4 x 2.5
|
7/0.67
|
429
|
14.43
|
20s
|
7.41
|
42
|
|
4 x 4.0
|
7/0.85
|
538
|
16.87
|
20
|
4.61
|
55
|
|
4 x 6.0
|
7/1.04
|
670
|
17.87
|
20
|
3.08
|
69
|
|
4 x 10
|
7/1.35
|
998
|
20.1
|
25
|
1.83
|
92
|
|
4 x 16
|
7/1.70
|
1,272
|
22.4
|
25
|
1.15
|
119
|
|
4 x 25
|
7/2.14
|
1,940
|
27
|
32
|
0.727
|
152
|
|
4 x 35
|
7/2.52
|
2,390
|
30.1
|
32
|
0.524
|
182
|
|
4 x 50
|
19/1.78
|
2,925
|
31.5
|
32
|
0.387
|
217
|
|
4 x 70
|
19/2.14
|
4,200
|
37.4
|
40
|
0.268
|
266
|
|
4 x 95
|
19/2.52
|
5,355
|
40.9
|
50s
|
0.193
|
319
|
|
4 x 120
|
37/2.03
|
6,925
|
46.6
|
50
|
0.153
|
363
|
|
4 x 150
|
37/2.25
|
8,200
|
50.2
|
50s
|
0.124
|
406
|
|
4 x 185
|
37/2.52
|
9,975
|
55.8
|
63s
|
0.0991
|
458
|
|
4 x 240
|
61/2.52
|
12,700
|
62.5
|
63
|
0.0754
|
529
|
|
4 x 300
|
61/2.85
|
15,275
|
67.4
|
75s
|
0.0601
|
592
|
|
4 x 400
|
61/3.20
|
19,875
|
77
|
75
|
0.047
|
667
|
