Quick Details
-
Place of Origin:
-
Shandong, China
-
Certification:
-
CE, ISO, Sgs
-
After-sales Service Provided:
-
Video technical support
-
Product name:
-
3020 mini laser engraving machine
-
Laser power:
-
40W/50W/60W(optional)
-
Laser tube:
-
Co2 Sealed Glass Laser Tube
-
Keywords:
-
3020 Laser Engraving Machine
-
Name:
-
Cnc mini 3020 Co2 Laser Engraving Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Model:
-
JW3020
-
Software:
-
CorelDraw
-
Laser tube type:
-
Co2 Glass Sealed Laser Tube
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-10000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Certification:
-
CE, ISO, Sgs
-
After-sales Service Provided:
-
Video technical support
-
Product name:
-
3020 mini laser engraving machine
-
Laser power:
-
40W/50W/60W(optional)
-
Laser tube:
-
Co2 Sealed Glass Laser Tube
-
Keywords:
-
3020 Laser Engraving Machine
-
Name:
-
Cnc mini 3020 Co2 Laser Engraving Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Model:
-
JW3020
-
Software:
-
CorelDraw
-
Laser tube type:
-
Co2 Glass Sealed Laser Tube

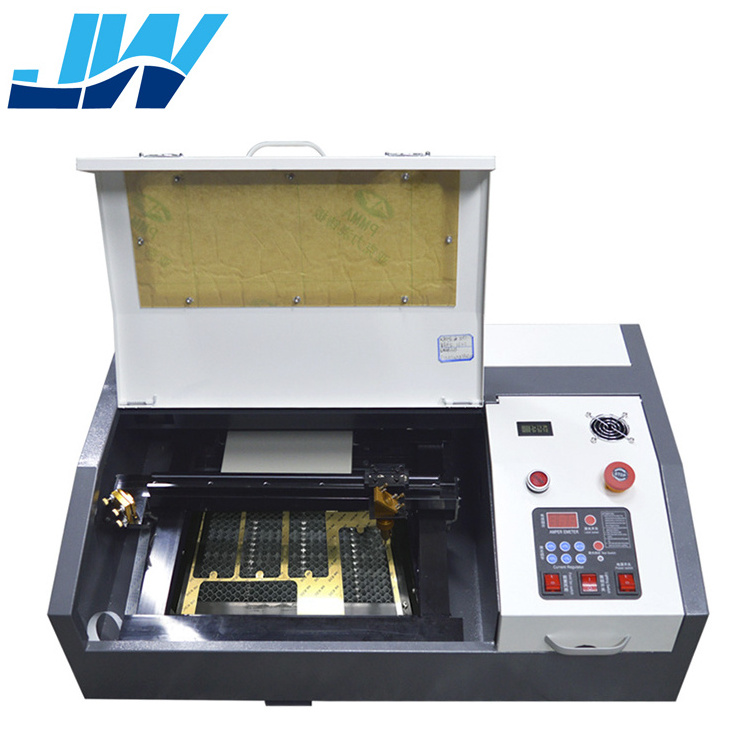

jingwei hot sale screen protector 3020 phone membrance laser cutting machine
JW 3020 Mobile Phone Screen Protector Cutting machine is a machine of automatically cutting screen protectors, which controlled by thet software that can transform abundant and latest cutting die into graphic data and can connect with the cutting machine to produce screen protectors of PET/PVC fast and accurately. It solves the problem of supply screen protectors of small batch. The curve of cutting is natural and without rough edge.
|
JW-3020 laser engraving machine technical parameters |
|
|
Model |
JW-3020 |
|
working area |
30cm*20cm/12in*8in(L*W) |
|
Laser type |
CO2 sealed laser tube |
|
Cooling type |
water cooling |
|
Laser power |
40W 50w 60W(optaionl) |
|
Engraving speed |
25-60000mm/min |
|
Cutting speed |
20-10000mm/min |
|
Power supply |
220V±10%/50HZ,110V±10%//60HZ |
|
Min.shaping character |
Letter 1.0 x 1.0mm |
|
Graphic format supported |
BMP,PLT,DST,DXF,AI,CDR |
|
Software supported |
CorelDraw,PhotoShop,AutoCAD |
|
Laser Output Control |
1-100%software setting |
|
Highest Scanning Precision |
2500DPI |
|
Location precision |
0.01mm |
|
Working temperature |
5 to 45 degrees |
|
Operating humidity |
5%-95%(without condensed water) |
|
Equipment Dimension |
800mm*500mm*250mm(L*W*H) |
|
Net Weight |
40KG |
|
Optional parts |
Up-down worktable,Red light pointer,Auto focus,Rotary device,Auto-air blowing |
|
Warranty |
3 years |
Packaging Details:Plywood Cases
Delivery Details:5-7 working days
The advantages of Plywood Case Package:
Firstly, plywood case, its compressive strength and bearing quality is better, is the
market of choice for the goods of high-weight packaging
Secondly, the board area is big, the soil structure is good,and operational process is simple,
So it is better in leakproofness and waterproof.
Thirdly , when importing the plywood case is with fumigation-free , the procedure is simple.
1. Pre-sale services:
Act as a good assistant of clients enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients.
2. Services during the sale:
1. Pre-check and accept products ahead of delivery;
2. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanging
